Buy C.K T3203 038 T3203 038 Hole saw 38 mm 1 pc(s)

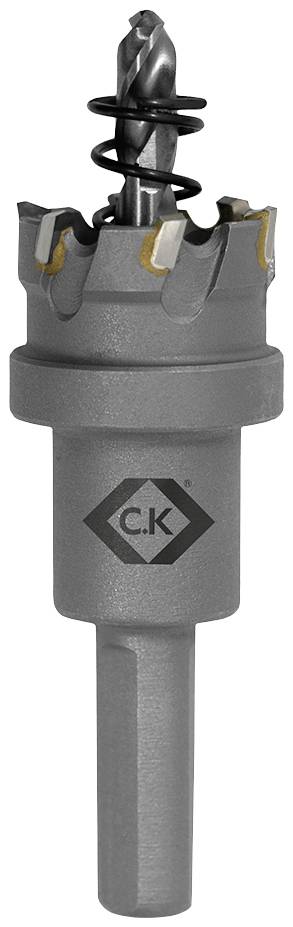

'Hole saw with metal blade and spiral ejection system, suitable for drilling precise holes in metal surfaces.'

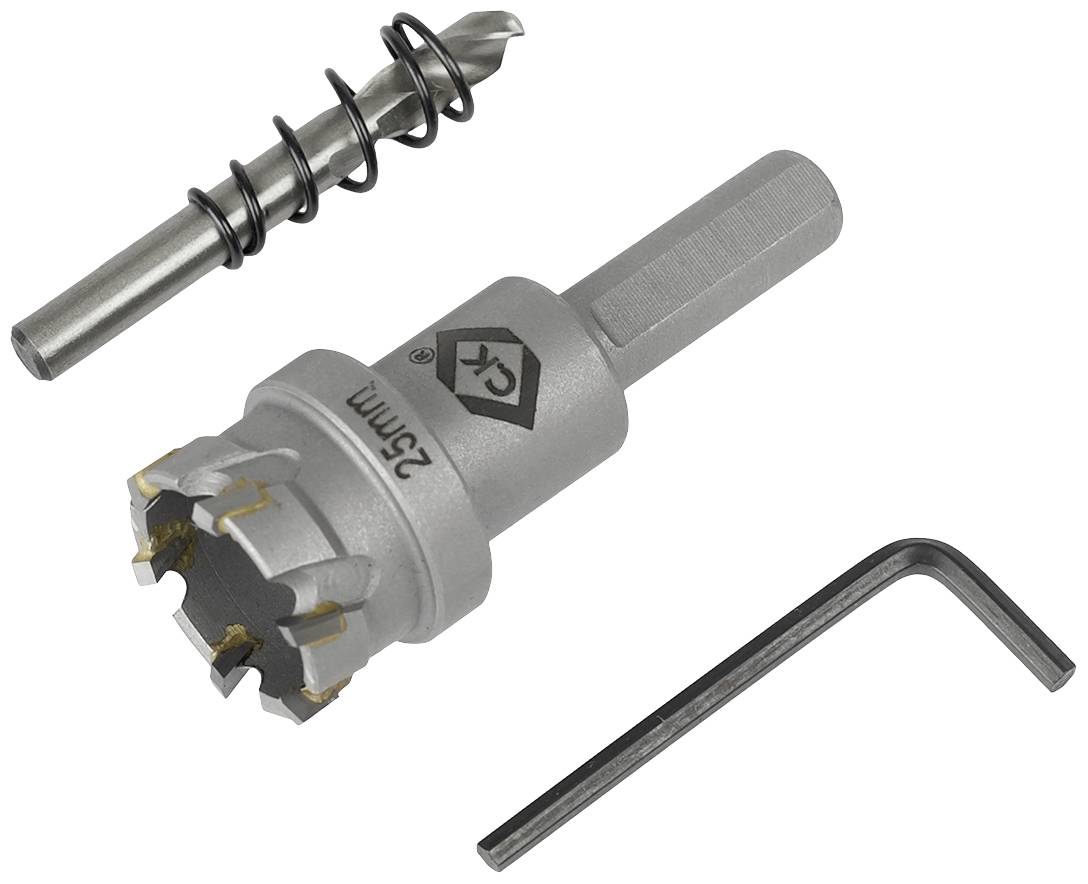

A hole saw set comprising a hole saw bit, a drill bit, a spring, and an Allen key.

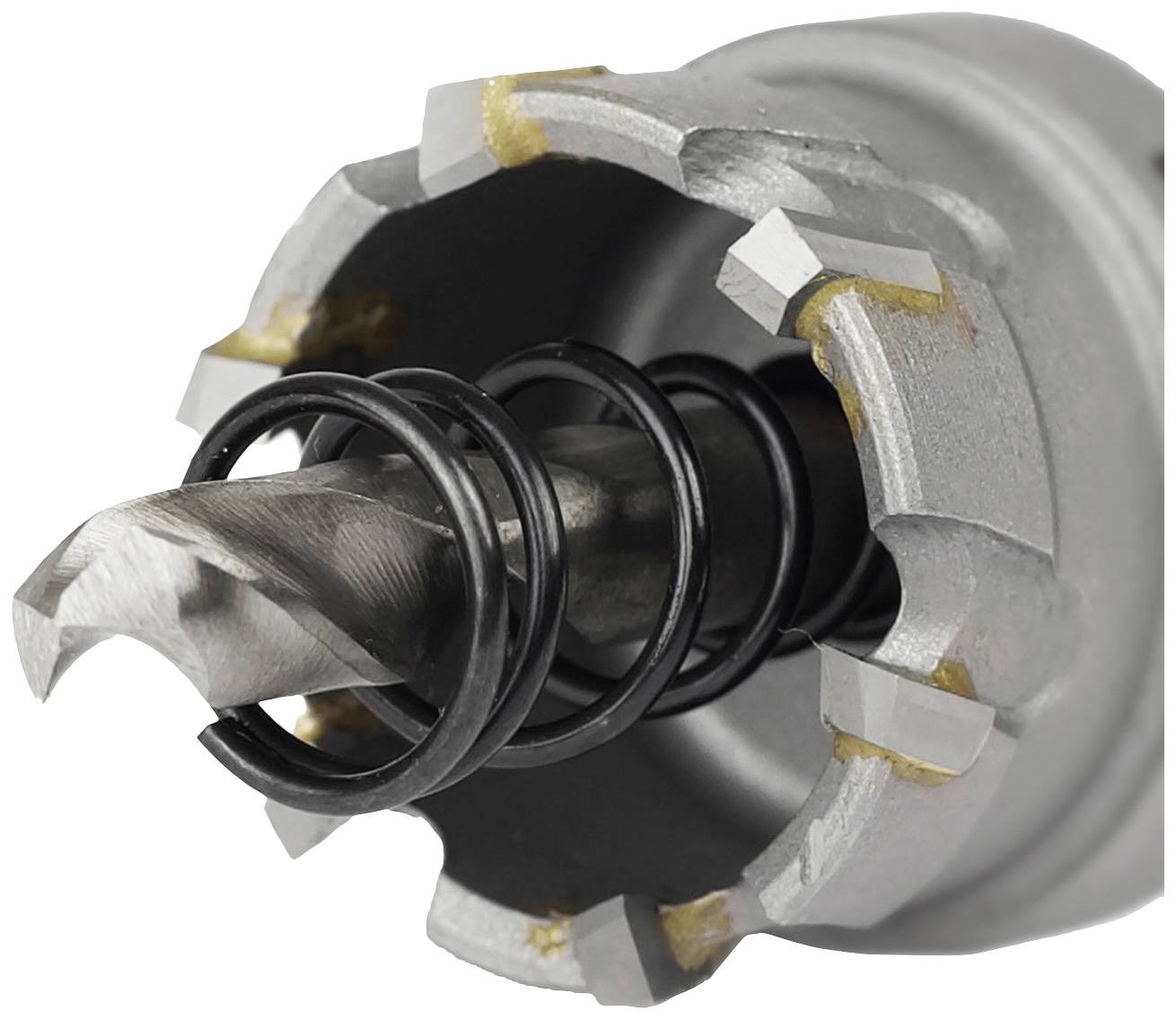

Close-up of a hole saw drill bit with a metal spiral spring, which assists during drilling. Suitable for precise drilling work in metal.

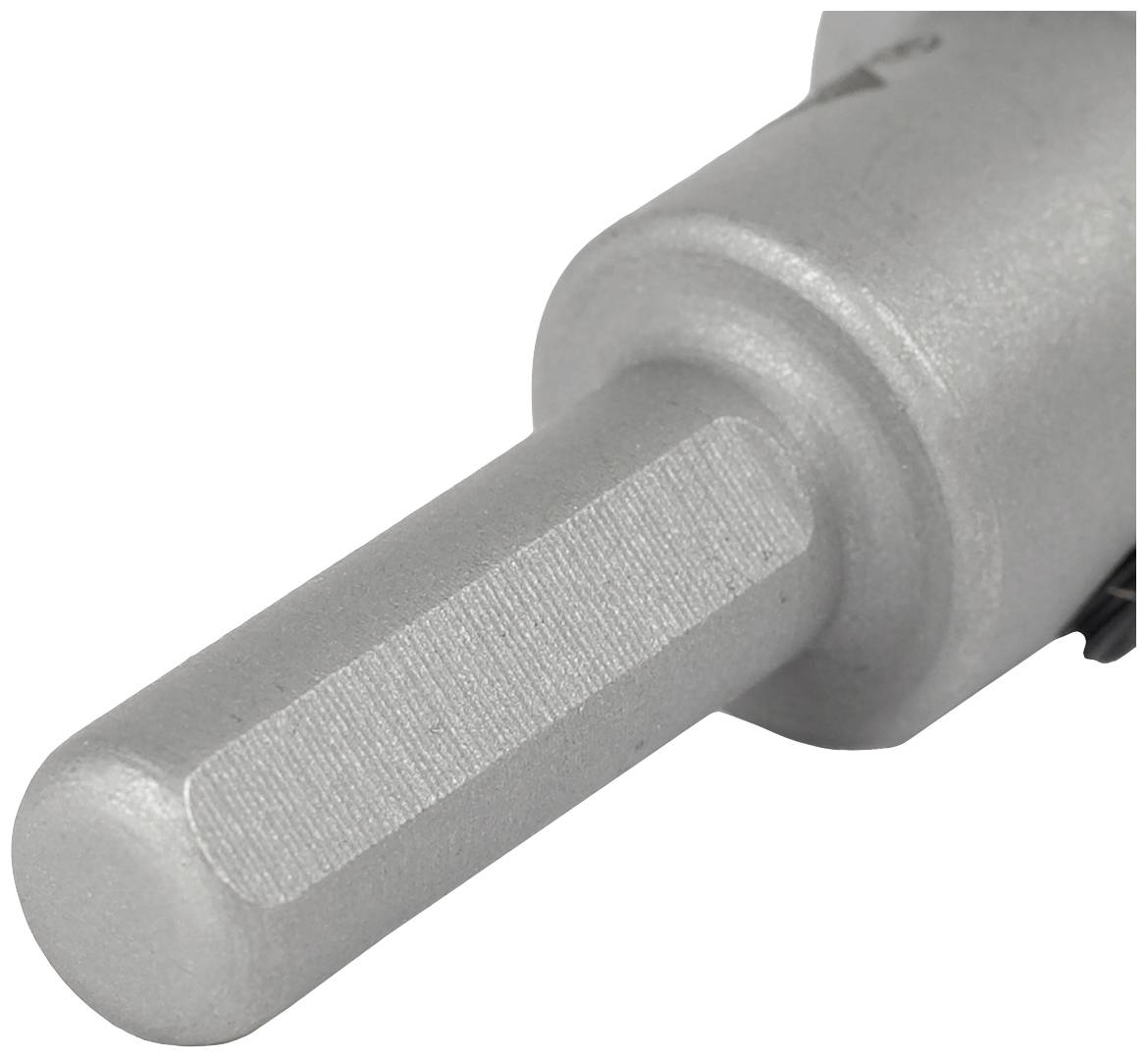

Close-up of a metallic hexagonal socket key, commonly used for tightening or loosening screws.

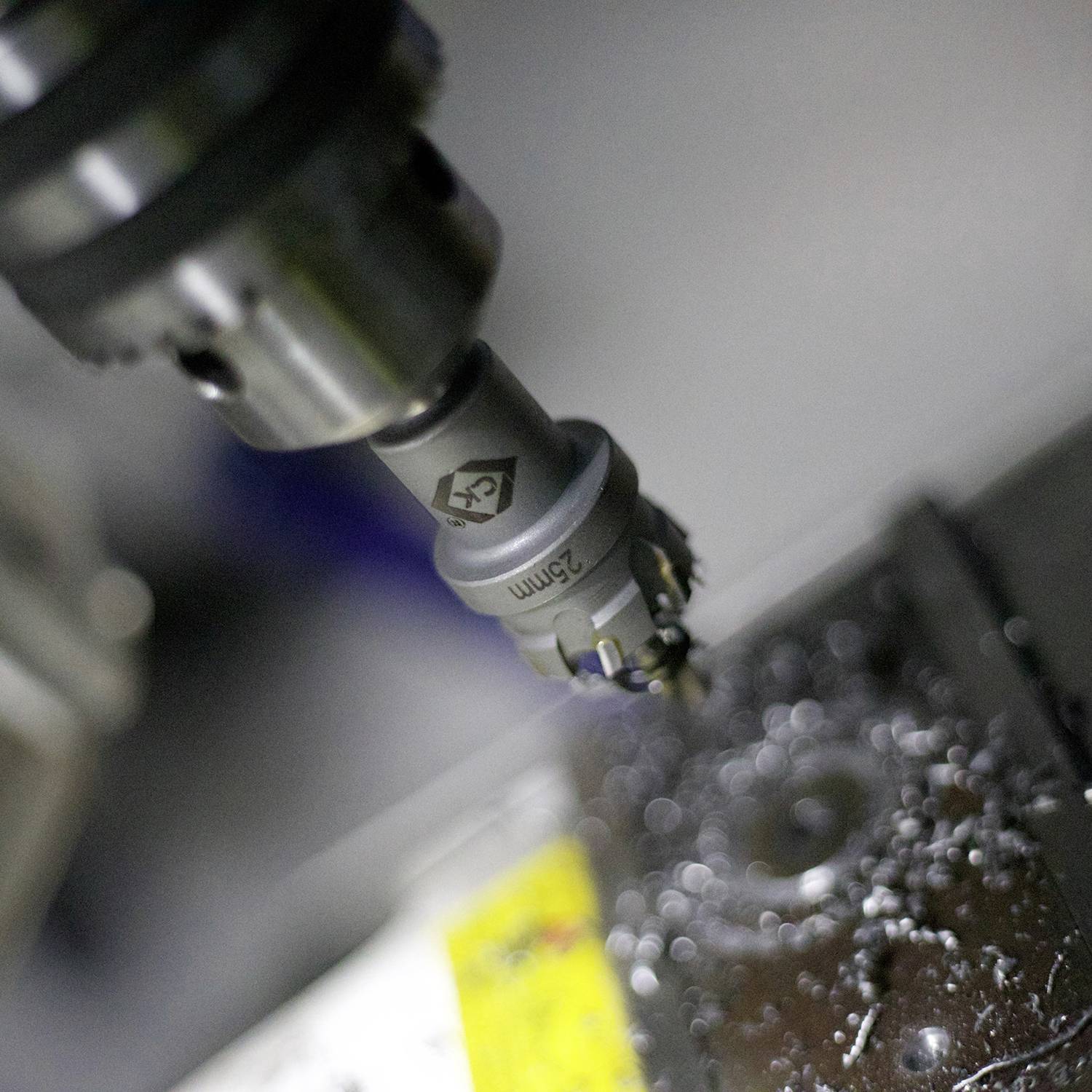

Close-up of a drill bit boring a hole into a metal surface. Metal shavings are visible. Working process in a workshop.

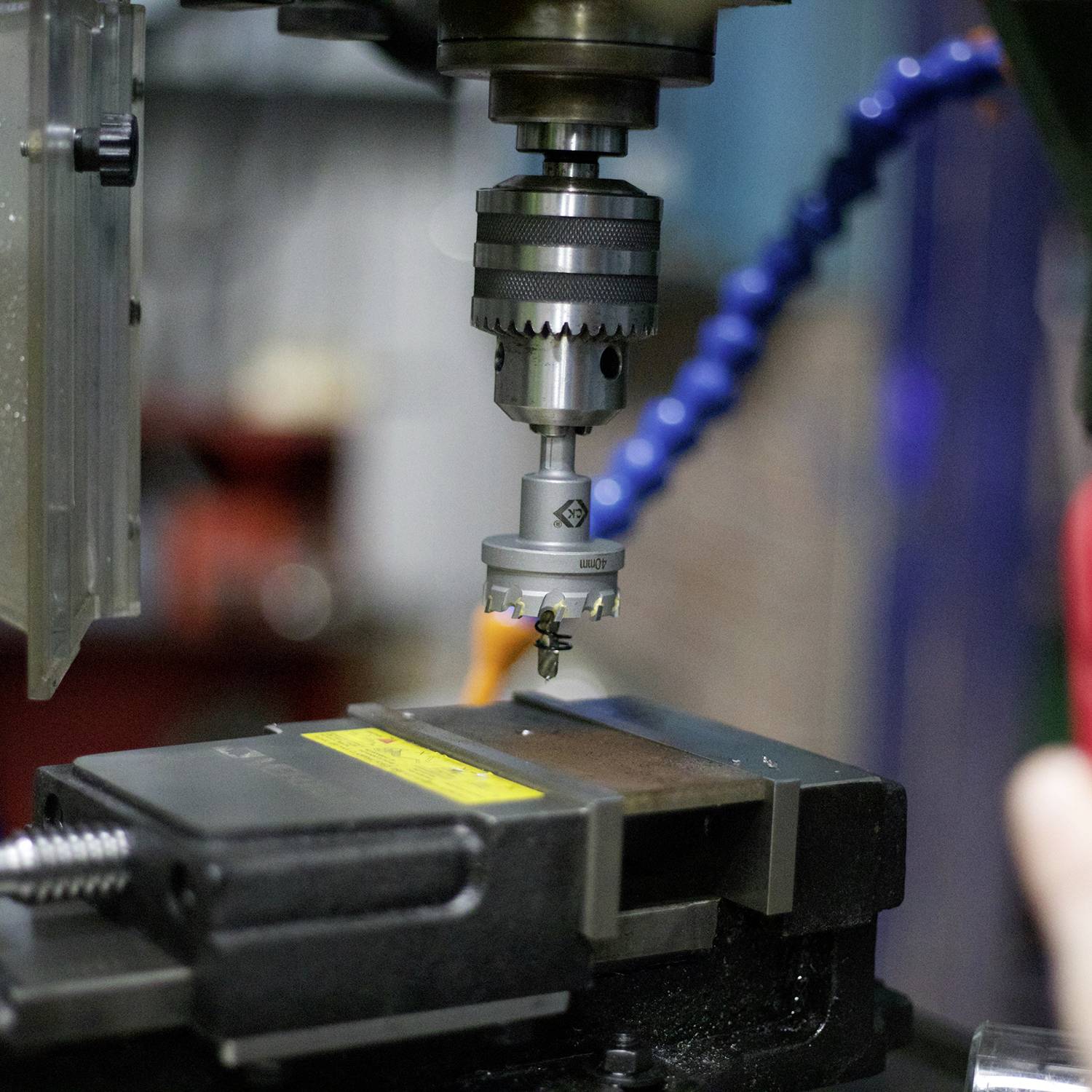

'A metal drill machine is machining a workpiece. The drill bit is aligned with the material, with chippings visible.'

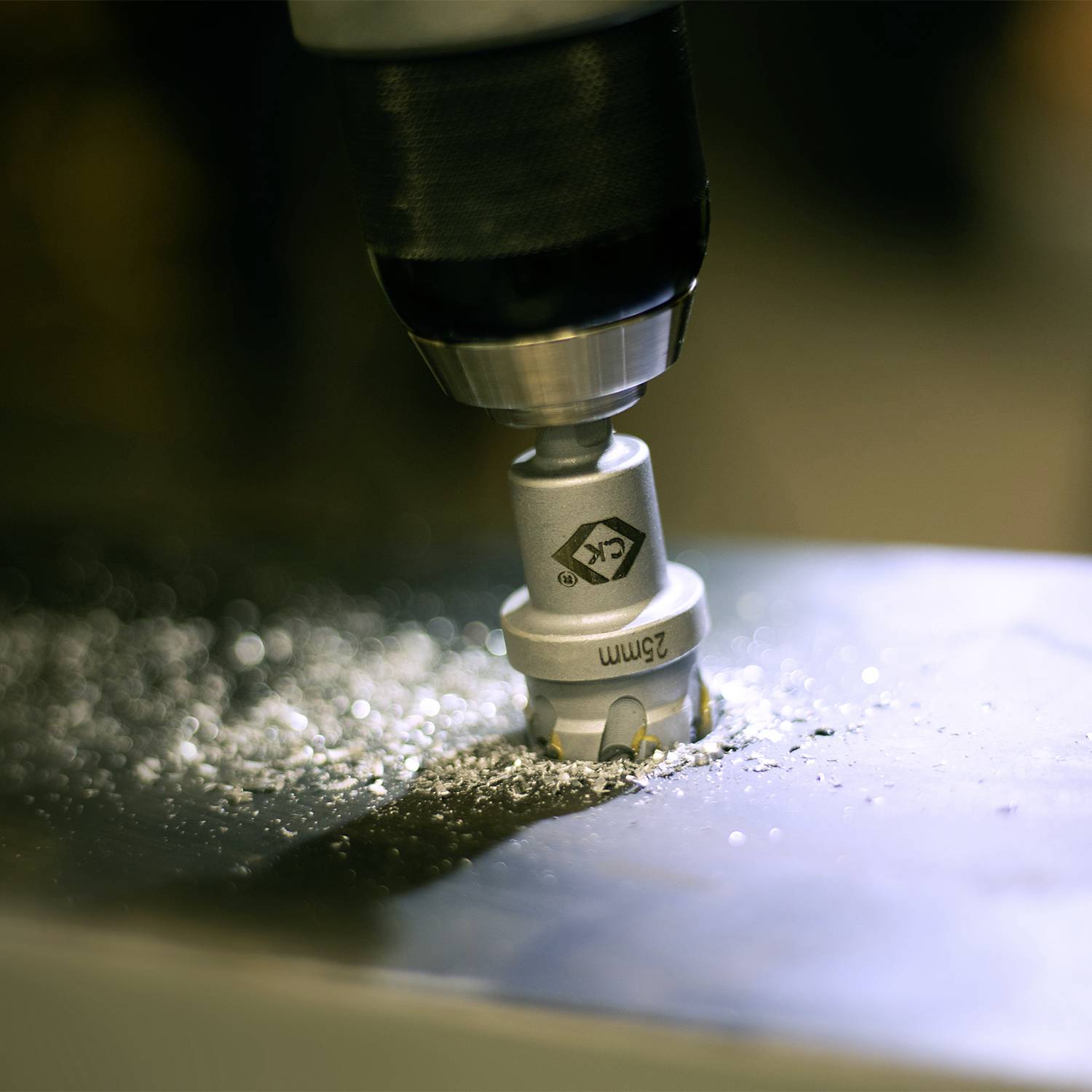

Drill pierces metal plate, metal shavings accumulate.

1/7

Product type

Hole saw

Drill hole Ø

38 mm

Material

Tungsten carbide

Material suitability

Steel

Cast iron

Copper

Working length

12 mm

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TCT carbide hole saw 38 mm

Tungsten carbide teeth
Creates a 3-point edge
HSS centre drill bit
Depth stop collar

Technical specifications

Product type: Hole saw

Drill hole Ø: 38 mm

Material: Tungsten carbide

Material suitability: Steel
Cast iron
Copper

Working length: 12 mm

Total length: 90 mm

Tool holder: Triangular shank

Shank Ø: 10 mm

Height: 90 mm

Width: 38 mm

Weight: 144 g

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3130351 C.K T3203 038 T3203 038 Hole saw 38 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3130351 C.K T3203 038 T3203 038 Hole saw 38 mm 1 pc(s)

Description

Tungsten carbide teeth (Tungsten Carbide Tip) provide exceptional cutting performance in non-alloy and stainless steel, cast iron and copper up to a thickness of 12 mm

This text is machine translated.

Features

The variable 3-point blade creates maximum contact, but reduces the heat at the same time
The high-voltage spring causes the drill or Saw waste
HSS Center Drill Driver - Precise start with less drill travel can be removed with 3 mm hex wrench (included)
Deep impact collar – prevents overdrilling for greater safety and efficiency
10 mm shaft with 3 surfaces - safe and comfortable insertion in a variety of drill machines
