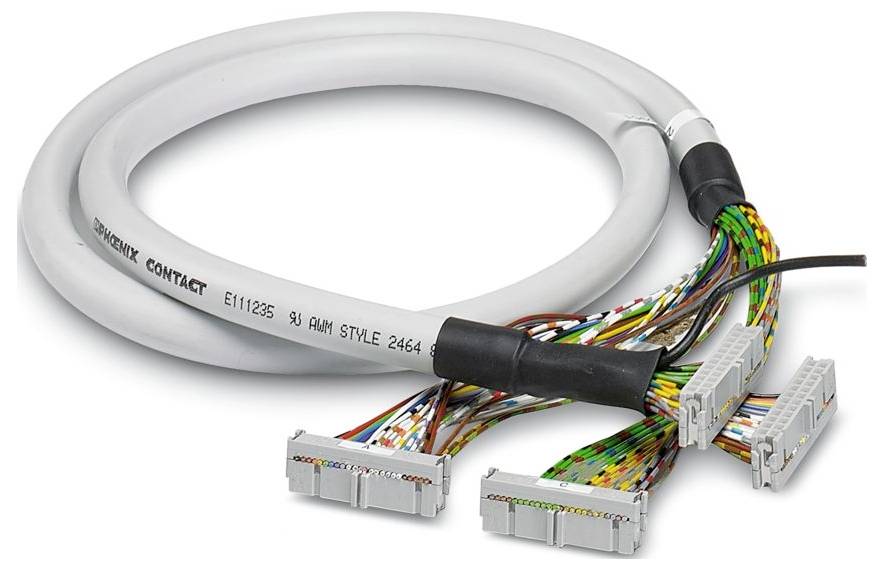

Image similar
Cable CABLE-2FLK24/2FLK24/DV/ 6,0M/S Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
6 m
Connection
IDC-FLK power strip
Total no. of pins
50
Manufacturer part #
2906957
Datasheet (PDF)
Technical specifications
- Number of pins: 24
- Connection type: IDC/FLK power strip
- Conductor cross-section AWG: 26
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 11.00 mm ±0.3 mm
- Lead wire spacing 2.54 mm
- Connection according to standard IEC 60603-13 (in accordance with)
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Tin-plated Cu-strand
- Cable length 6 m
- Cable cross-section: 50 x 0.14 mm²
- Wire resistance: ≤ 145 Ω/km (at 20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: Yes
- Cable type 50x0.14 [PVC]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.03 mm
- Minimum bend radius, 114 mm fixed installation
- Minimum bend radius, movable 205 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 5000 (at radius ≥ 18x external diameter)
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 2
- Rating type 100 % ED
- Mating cycles > 50
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled, shielded round cable
- Supported control: EMERSON DeltaV: Supported control: EMERSON DeltaV
- Matching I/O-card: SE4053S2B11;SE4083S2B11
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Cable design: Cable for one module
- Current (per path, 50 °C): ≤ 1 A (in the unrolled state, see derating)
- Current (per path, 70 °C): ≤ 0.6 A (in the unrolled state, see derating)
- 50X0.14 [ PVC]: 50X0.14]
- Product type
Cable
- Cable length
6 m
- Connection
IDC-FLK power strip
- Total no. of pins
50
- Manufacturer part #
2906957
- Content
1 pc(s)
- Material
PVC
- Number of pins
50
- Type
CABLE-2FLK24/2FLK24/DV/ 6,0M/S
- Length
6 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580037 Cable CABLE-2FLK24/2FLK24/DV/ 6,0M/S Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3580037 Cable CABLE-2FLK24/2FLK24/DV/ 6,0M/S Phoenix Contact Content: 1 pc(s)
Description
Assembled shielded round cable; control: Emerson Delta V S-Series; connector 1: IDC/FLK power strip (2x 24-pin); connector 2: IDC/FLK power strip (2x 24-pin); cable length: 6 m.
