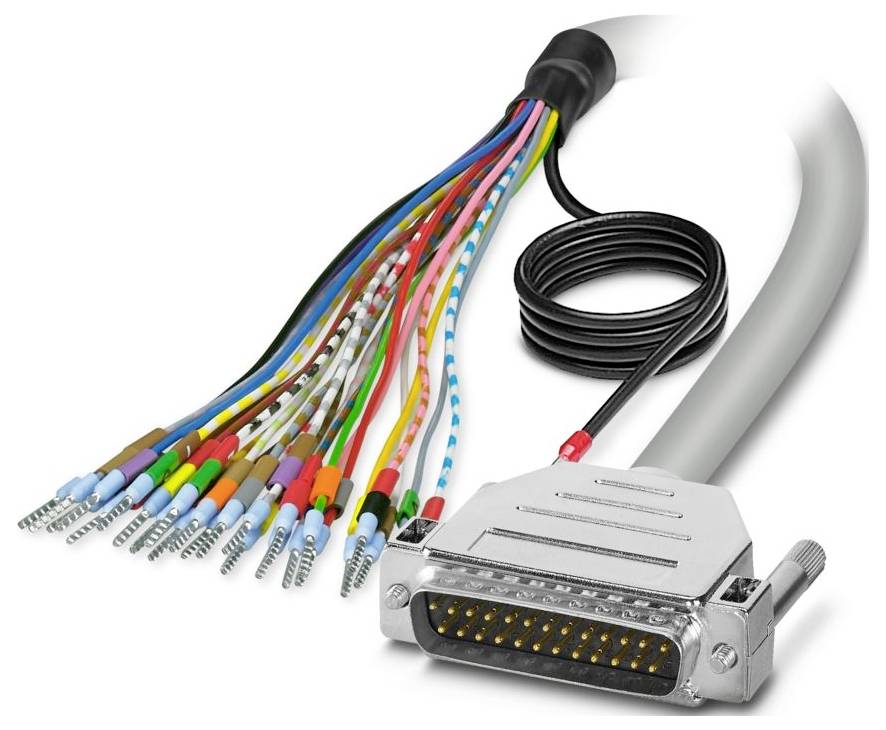

Cable CABLE-D-25SUB/M/OE/0,25/S/4,0M Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
4 m
Connection
D-Sub pin strip
Total no. of pins
25
Manufacturer part #
2926551
Datasheet (PDF)
Technical specifications
- Number of poles: 25
- D-SUB header connection
- Screw thread UNC 4-40
- Tightening torque 0.2 Nm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note: The wires are labeled and fitted with cable end sleeves. The braided shield is lead through a separate cable end.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 9.80 mm ±0.5 mm
- Lead wire spacing 2.77 mm
- Connection according to standard IEC 60807-2;DIN 41652
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Plain Cu stranded conductor
- Cable length 4 m
- Cable cross-section: 25 x 0.25 mm²
- Wire resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (at 20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: Yes
- Cable type: 25x0.25 [PVC]
- Conductor construction signal line: 14x 0.15 mm
- AWG signal cable 24
- Wire diameter including insulation: 1.2 mm ±0.05 mm
- Minimum bend radius, 82 mm fixed installation
- Minimum bend radius, movable 155 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 5000 (at radius ≥ 15x external diameter)
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 1
- Rating type 100 % ED
- Mating cycles > 200
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled, shielded round cable
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Current (per path): ≤ 2 A (in the unrolled state, see derating)
- Colour code: Single core: Colour code: Single core
- White: D-SUB25 (1) = ()
- Brown: D-SUB25 (2) = ()
- Green: D-SUB25 (3) = ()
- Yellow: D-SUB25 (4) = ()
- Grey: D-SUB25 (5) = ()
- Pink: D-SUB25 (6) = ()
- Blue: D-SUB25 (7) = ()
- Red: D-SUB25 (8) = ()
- Black: D-SUB25 (9) = ()
- Stripping length (covering): 150 mm
- Violet: D-SUB25 (10) = ()
- Grey-pink: D-SUB25 (11) = ()
- Red-blue: D-SUB25 (12) = ()
- White-green D-SUB25 (13) = ()
- Brown-green: D-SUB25 (14) = ()
- White/yellow D-SUB25 (15) = ()
- Yellow-brown D-SUB25 (16) = ()
- White-gray: D-SUB25 (17) = ()
- Grey-brown: D-SUB25 (18) = ()
- White-pink: D-SUB25 (19) = ()
- Pink-brown: D-SUB25 (20) = ()
- White-blue: D-SUB25 (21) = ()
- Brown-blue: D-SUB25 (22) = ()
- White-red: D-SUB25 (23) = ()
- Brown-red: D-SUB25 (24) = ()
- White-black: D-SUB25 (25) = ()
- 25X0.25 [PVC]: 25X0.25 [PVC]
- Product type
Cable
- Cable length
4 m
- Connection
D-Sub pin strip
- Total no. of pins
25
- Manufacturer part #
2926551
- Content
1 pc(s)
- Material
PVC
- Number of pins
25
- Type
CABLE-D-25SUB/M/OE/0,25/S/4,0M
- Length
4 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580216 Cable CABLE-D-25SUB/M/OE/0,25/S/4,0M Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3580216 Cable CABLE-D-25SUB/M/OE/0,25/S/4,0M Phoenix Contact Content: 1 pc(s)
Description
Assembled shielded round cable, connector 1: Single wires (25-pin) (The wires are labeled and fitted with wire end sleeves. The braided shield is led out on a separate cable end.); Connection 2: D-SUB header (1x 25-pin); Cable length: 4 m.
