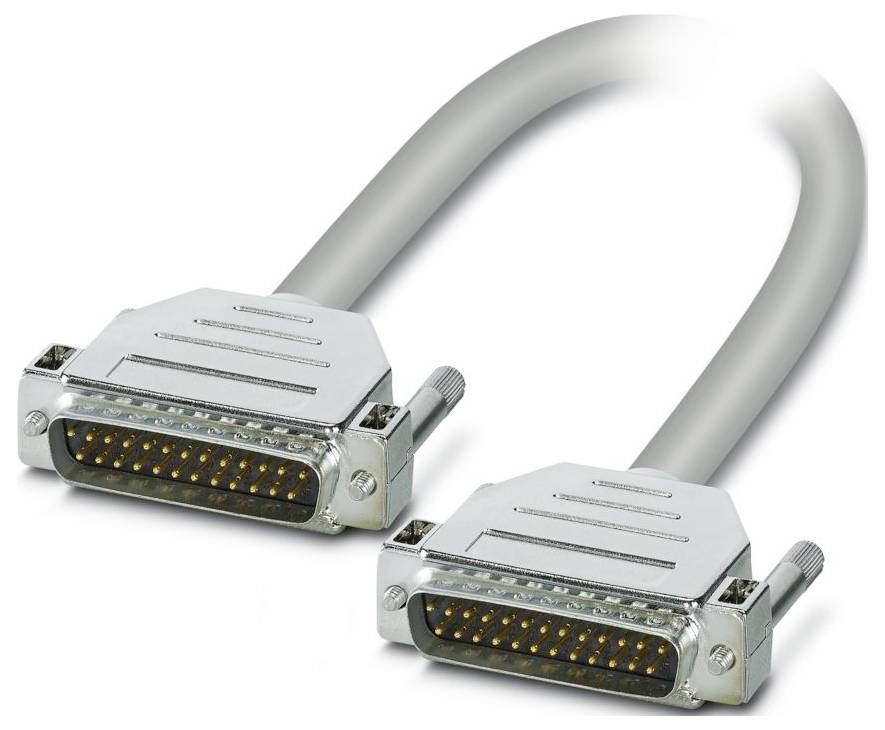

Cable CABLE-D25SUB/S/S/HF/S/ 2,0M Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
2 m
Connection
D-Sub pin strip
Total no. of pins
25
Manufacturer part #
1066669
Datasheet (PDF)
Technical specifications
- Number of poles: 25
- D-SUB header connection
- Screw thread UNC 4-40
- Tightening torque 0.2 Nm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 9.80 mm ±0.5 mm
- Lead wire spacing 2.77 mm
- Connection according to standard IEC 60807-2;DIN 41652
- Outer sheath, material: Halogen-free sheathing
- Material conductor: Plain Cu stranded conductor
- Cable length 2 m
- Cable cross-section: 25 x 0.25 mm²
- Wire resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (at 20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 21946
- Shielded: Yes
- Conductor construction signal line: 14x 0.15 mm
- AWG signal cable 24
- Wire diameter including insulation: 1.2 mm ±0.05 mm
- Minimum bend radius, 82 mm fixed installation
- Minimum bend radius, movable 155 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 5000 (at radius ≥ 15x external diameter)
- Flame-resistance: IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable);IEC 60332-3-22 (raw cable)
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 1
- Rating type 100 % ED
- Mating cycles > 200
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: Yes
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled, shielded, halogen-free round cable
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Current (per path): ≤ 2 A (in the unrolled state, see derating)
- Colour code: Single core: Colour code: Single core
- WHITE D-SUB25 (1) = D-SUB25 (1)
- BROWN:D-SUB25 (2) = D-SUB25 (2)
- GREEN: D-SUB25 (3) = D-SUB25 (3)
- YELLOW: D-SUB25 (4) = D-SUB25 (4)
- GRAY:D-SUB25 (5) = D-SUB25 (5)
- PINK: D-SUB25 (6) = D-SUB25 (6)
- BLUE:D-SUB25 (7) = D-SUB25 (7)
- RED: D-SUB25 (8) = D-SUB25 (8)
- BLACK: D-SUB25 (9) = D-SUB25 (9)
- VIOLET: D-SUB25 (10) = D-SUB25 (10)
- Grey-pink: D-SUB25 (11) = D-SUB25 (11)
- Red-blue: D-SUB25 (12) = D-SUB25 (12)
- White-green D-SUB25 (13) = D-SUB25 (13)
- Brown-green: D-SUB25 (14) = D-SUB25 (14)
- White-yellow: D-SUB25 (15) = D-SUB25 (15)
- Yellow-brown D-SUB25 (16) = D-SUB25 (16)
- White-gray: D-SUB25 (17) = D-SUB25 (17)
- Grey-brown: D-SUB25 (18) = D-SUB25 (18)
- White-pink: D-SUB25 (19) = D-SUB25 (19)
- Pink-brown: D-SUB25 (20) = D-SUB25 (20)
- White-blue D-SUB25 (21) = D-SUB25 (21)
- Brown-blue: D-SUB25 (22) = D-SUB25 (22)
- White-red D-SUB25 (23) = D-SUB25 (23)
- Brown-red: D-SUB25 (24) = D-SUB25 (24)
- White-black: D-SUB25 (25) = D-SUB25 (25)
- Product type
Cable
- Cable length
2 m
- Connection
D-Sub pin strip
- Total no. of pins
25
- Manufacturer part #
1066669
- Content
1 pc(s)
- Number of pins
25
- Type
CABLE-D25SUB/S/S/HF/S/ 2,0M
- Length
2 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562640 Cable CABLE-D25SUB/S/S/HF/S/ 2,0M Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562640 Cable CABLE-D25SUB/S/S/HF/S/ 2,0M Phoenix Contact Content: 1 pc(s)
Description
Assembled, shielded, halogen-free round cable, connection 1: D-SUB male connector (1x 25-pin); connection 2: D-SUB male connector (1x 25-pin); cable length 2 m
