Cable CABLE-D37F/4XD15F/3,0M/ETHA Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
3 m
Connection
D-Sub power strip
Total no. of pins
10
Manufacturer part #
1119201
Datasheet (PDF)
Technical specifications
- Number of pins: 15
- Type of connection: D-SUB female header
- Screw thread UNC 4-40;M2.5
- Tightening torque 0.2 Nm
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 6.10 mm ±0.4 mm
- Lead wire spacing 2.74 mm
- Connection according to standard IEC 60807-2;DIN 41652
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Tin-plated Cu-strand
- Cable length 3 m
- Wire cross-section: 10x 0.14 mm²
- Wire resistance: ≤ 145 Ω/km (20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: No.
- Cable type: 10X0.14 [PVC]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.03 mm
- Minimum bend radius, 52 mm fixed installation
- Minimum bend radius, movable 98 mm
- Dynamic load (bending): Bending cycles maximum: 5000
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 4
- Rating type 100 % ED
- Mating cycles > 200
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled round cable
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Suitable peripheral module: 6DL1131-6BL00-0PH1 (terminal Block H1/M1);6DL1132-6BL00-0PH1 (terminal Block H1/M1)
- Supported control: Siemens ET 200SP HA: Supported control: Siemens ET 200SP HA
- Colour code: Single core: Colour code: Single core
- WHITE: D-SUB 37 X1 (37) = D-SUB15 X5 (10)
- BROWN: D-SUB 37 X1 (29) = D-SUB15 X5 (2)
- GREEN: D-SUB 37 X1 (33) = D-SUB15 X5 (6)
- YELLOW: D-SUB 37 X1 (32) = D-SUB15 X5 (5)
- GRAY: D-SUB 37 X1 (18) = D-SUB15 X5 (9)
- BLUE: D-SUB 37 X1 (34) = D-SUB15 X5 (7)
- RED: D-SUB 37 X1 (30) = D-SUB15 X5 (3)
- BLACK: D-SUB 37 X1 (28) = D-SUB15 X5 (1)
- VIOLET: D-SUB 37 X1 (35) = D-SUB15 X5 (8)
- ORANGE: D-SUB 37 X1 (31) = D-SUB 15 X5 (4)
- Cable design: Split cable for four modules
- Current (per path, 50 °C): ≤ 1 A (in the unrolled state, see derating)
- Current (per path, 70 °C): ≤ 0.6 A (in the unrolled state, see derating)
- 10X0.14 [ PVC]: 10X0.14 [PVC]
- 6DL1193-6TP00-0BH1;6DL1193-6TP00-0DH1;6DL1193-6TP00-0BM1;6DL1193-6TP00-0DM1
- Product type
Cable
- Cable length
3 m
- Connection
D-Sub power strip
- Total no. of pins
10
- Manufacturer part #
1119201
- Content
1 pc(s)
- Material
PVC
- Number of pins
10
- Type
CABLE-D37F/4XD15F/3,0M/ETHA
- Length
3 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564690 Cable CABLE-D37F/4XD15F/3,0M/ETHA Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3564690 Cable CABLE-D37F/4XD15F/3,0M/ETHA Phoenix Contact Content: 1 pc(s)
Description

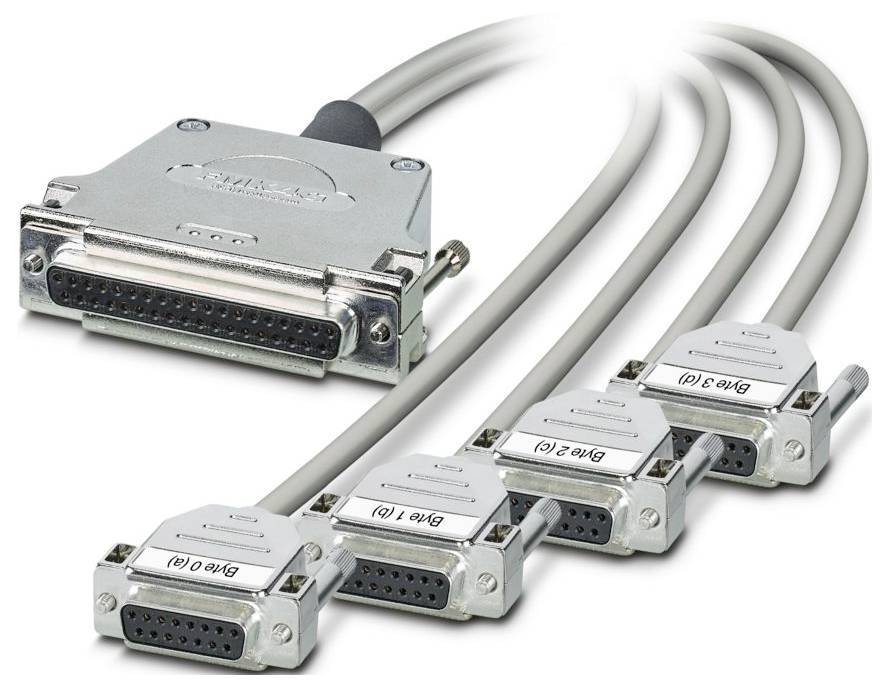

Ready-made round cable; control: Siemens SIMATIC® ET 200SP HA; connector 1: D-SUB female header (1x 37-pin); connector 2: D-SUB female header (4x 15-pin); cable length: 3 m.
