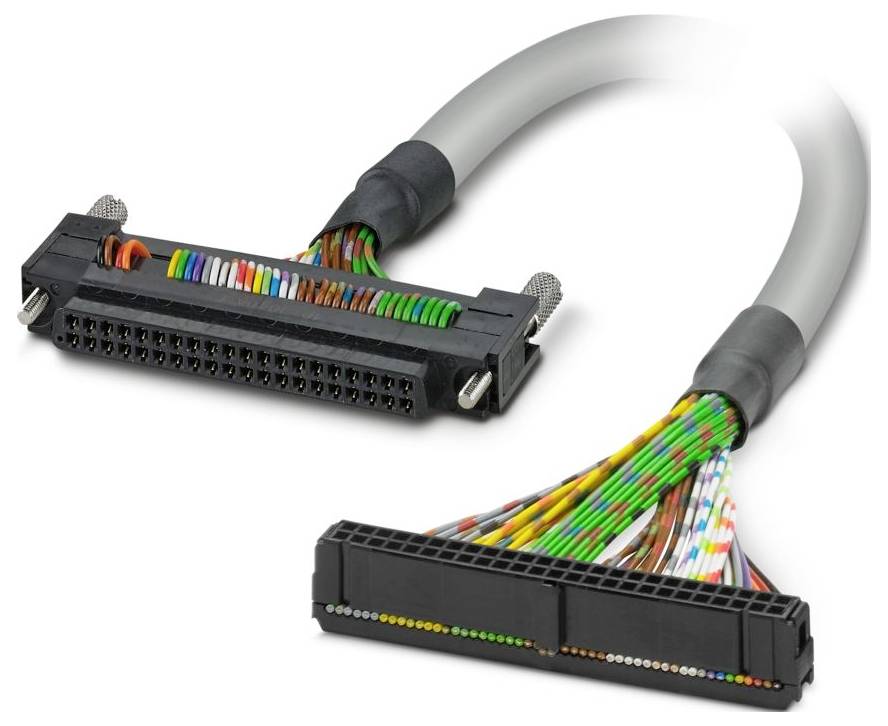

Cable CABLE-FCN40/1X50/ 2,0M/M340 Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
2 m
Connection
IDC-FLK power strip
Connector
Total no. of pins
40
Manufacturer part #
2321651
Datasheet (PDF)
Technical specifications
- FCN 367
- Number of pins: 50
- Connection type: IDC/FLK power strip
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 9.90 mm ±0.4 mm
- Lead wire spacing 2.54 mm
- Connection according to standard IEC 60603-13 (in accordance with)
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Tin-plated Cu-strand
- Cable length 2 m
- Cable cross-section: 40x 0.14 mm²
- Wire resistance: ≤ 145 Ω/km (20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: No.
- Cable type 40x0.14 [PVC]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.03 mm
- Minimum bend radius, 82 mm fixed installation
- Minimum bend radius, movable 155 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 5000 (at radius ≥ 15x external diameter)
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 1
- Rating type 100 % ED
- Mating cycles > 50
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled round cable
- MATCHING I/O-CARD: BMX DDI 3202K;BMX DDI 6402K;BMX DD0 3202K;BMX DD0 6402K;BMX DDM 3202K
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Colour code: Single core: Colour code: Single core
- White: Fujitsu40 (B5) = IDC/FLK50 (41)
- Brown: Fujitsu40 (B1) = IDC/FLK50 (37)
- Green Fujitsu 40 (B3) = IDC/FLK50 (45)
- Yellow: Fujitsu40 (A3) = IDC/FLK50 (46)
- Grey: Fujitsu40 (A5) = IDC/FLK50 (42)
- Blue: Fujitsu40 (A4) = IDC/FLK50 (44)
- Red: Fujitsu40 (A2) = IDC/FLK50 (35)
- Black: Fujitsu40 (A1) = IDC/FLK50 (47)
- Violet: Fujitsu40 (B4) = IDC/FLK50 (43)
- White-green: Fujitsu40 (B8) = IDC/FLK50 (31)
- Brown-green: Fujitsu40 (B12) = IDC/FLK50 (1)
- White/yellow: Fujitsu40 (A8) = IDC/FLK50 (32)
- Yellow-brown: Fujitsu40 (B19) = IDC/FLK50 (5)
- White-gray: Fujitsu40 (A10) = IDC/FLK50 (28)
- White-blue: Fujitsu40 (A9) = IDC/FLK50 (30)
- Brown-blue: Fujitsu40 (A13) = IDC/FLK50 (22)
- White-red: Fujitsu40 (A7) = IDC/FLK50 (34)
- Brown-red: Fujitsu40 (A11) = IDC/FLK50 (23)
- White-black: Fujitsu40 (A6) = IDC/FLK50 (40)
- Brown-black: Fujitsu40 (B10) = IDC/FLK50 (27)
- Green-blue: Fujitsu40 (A17) = IDC/FLK50 (10)
- Green-red: Fujitsu40 (A16) = IDC/FLK50 (16)
- Yellow-red: Fujitsu40 (A20) = IDC/FLK50 (4)
- Green-black: Fujitsu40 (A15) = IDC/FLK50 (18)
- Yellow-black: Fujitsu40 (A19) = IDC/FLK50 (6)
- White-brown: Fujitsu40 (B6) = IDC/FLK50 (39)
- Green-brown: Fujitsu40 (B15) = IDC/FLK50 (17)
- Orange: Fujitsu 40 (B2) = IDC/FLK50 (25)
- Green-white: Fujitsu40 (B18) = IDC/FLK50 (7)
- Green-orange: Fujitsu40 (B16) = IDC/FLK50 (15)
- Cable design: Cable for one module
- Current (per path, 50 °C): ≤ 1 A (in the unrolled state, see derating)
- Current (per path, 70 °C): ≤ 0.6 A (in the unrolled state, see derating)
- Supported control: Schneider Electric Modicon M340: Supported control: Schneider Electric Modicon M340
- 40X0.14 [PVC]: 40X0.14 [PVC]
- White/orange: Fujitsu40 (B7) = IDC/FLK50 (33)
- White-violet: Fujitsu40 (B9) = IDC/FLK50 (29)
- Brown-orange: Fujitsu40 (B11) = IDC/FLK50 (13)
- Brown-yellow: Fujitsu40 (A12) = IDC/FLK50 (11)
- Brown-violet: Fujitsu40 (B13) = IDC/FLK50 (21)
- Brown-gray: Fujitsu40 (A14) = IDC/FLK50 (20)
- Brown-white: Fujitsu40 (B14) = IDC/FLK50 (19)
- Green-violet: Fujitsu40 (B17) = IDC/FLK50 (9)
- Green-gray: Fujitsu40 (A18) = IDC/FLK50 (8)
- Yellow-orange: Fujitsu40 (B20) = IDC/FLK50 (3)
- Product type
Cable
- Cable length
2 m
- Connection
IDC-FLK power strip
Connector
- Total no. of pins
40
- Manufacturer part #
2321651
- Content
1 pc(s)
- Material
PVC
- Number of pins
40
- Type
CABLE-FCN40/1X50/ 2,0M/M340
- Length
2 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579048 Cable CABLE-FCN40/1X50/ 2,0M/M340 Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579048 Cable CABLE-FCN40/1X50/ 2,0M/M340 Phoenix Contact Content: 1 pc(s)
Description
READY-MADE ROUND CABLE; CONTROL: MODICON® M340 (BMX DDI 3202K, BMX DDI 6402K, BMX DD0 3202K, BMX DD0 6402K, BMX DDM 3202K); Connection 1: Fujitsu connector (1x 40-pin); port 2: IDC/FLK power strip (1x 50-pin); cable length 2 m.
