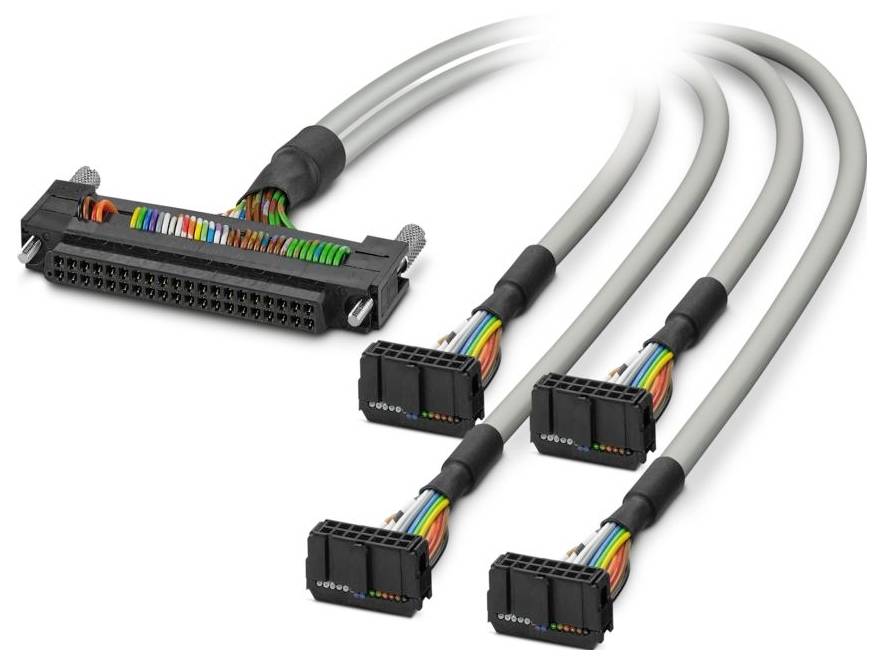

Cable CABLE-FCN40/4X14/ 2,0M/M340 Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
2 m
Connection
IDC-FLK power strip
Connector
Total no. of pins
10
Manufacturer part #
2321732
Datasheet (PDF)
Technical specifications
- FCN 367
- Number of pins: 14
- Connection type: IDC/FLK power strip
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 6.10 mm ±0.4 mm
- Lead wire spacing 2.54 mm
- Connection according to standard IEC 60603-13 (in accordance with)
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Tin-plated Cu-strand
- Cable length 2 m
- Wire cross-section: 10x 0.14 mm²
- Wire resistance: ≤ 145 Ω/km (20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: No.
- Cable type: 10X0.14 [PVC]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.03 mm
- Minimum bend radius, 52 mm fixed installation
- Minimum bend radius, movable 98 mm
- Dynamic load (bending): Bending cycles maximum: 5000
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 4
- Rating type 100 % ED
- Mating cycles > 50
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled round cable
- MATCHING I/O-CARD: BMX DDI 3202K;BMX DDI 6402K;BMX DD0 3202K;BMX DD0 6402K;BMX DDM 3202K
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Colour code: Single core: Colour code: Single core
- WHITE:X1 (A1) = X5 (10)
- BROWN: X1 (A6) = X5 (2)
- GREEN:X1 (A4) = X5 (6)
- YELLOW: X1 (B4) = X5 (5)
- GRAY: X1 (B1) = X5 (9)
- BLUE: X1 (B3) = X5 (7)
- RED:X1 (B5) = X5 (3)
- BLACK: X1 (B6) = X5 (1)
- VIOLET: X1 (A3) = X5 (8)
- ORANGE: X1 (A5) = X5 (4)
- Cable design: Split cable for four modules
- Current (per path, 50 °C): ≤ 1 A (in the unrolled state, see derating)
- Current (per path, 70 °C): ≤ 0.6 A (in the unrolled state, see derating)
- Supported control: Schneider Electric Modicon M340: Supported control: Schneider Electric Modicon M340
- 10X0.14 [ PVC]: 10X0.14 [PVC]
- X1
- X2 ... X5: X2 ... X5
- Product type
Cable
- Cable length
2 m
- Connection
IDC-FLK power strip
Connector
- Total no. of pins
10
- Manufacturer part #
2321732
- Content
1 pc(s)
- Material
PVC
- Number of pins
10
- Type
CABLE-FCN40/4X14/ 2,0M/M340
- Length
2 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579073 Cable CABLE-FCN40/4X14/ 2,0M/M340 Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579073 Cable CABLE-FCN40/4X14/ 2,0M/M340 Phoenix Contact Content: 1 pc(s)
Description
READY-MADE ROUND CABLE; CONTROL: MODICON® M340 (BMX DDI 3202K, BMX DDI 6402K, BMX DD0 3202K, BMX DD0 6402K, BMX DDM 3202K); Connection 1: Fujitsu connector (1x 40-pin); port 2: IDC/FLK power strip (4x 14-pin); 2 m cable length
