Cable CABLE-FLK16/OE/0,14/ 3,0M Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
3 m
Connection
IDC-FLK power strip
Total no. of pins
16
Manufacturer part #
2318172
Datasheet (PDF)
Technical specifications
- Number of pins: 16
- Connection type: IDC/FLK power strip
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note: The wires are labeled and fitted with cable end sleeves
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 6.80 mm ±0.4 mm
- Lead wire spacing 2.54 mm
- Connection according to standard IEC 60603-13 (in accordance with)
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Tin-plated Cu-strand
- Cable length 3 m
- Cable cross-section: 16X 0.14 mm²
- Wire resistance: ≤ 145 Ω/km (20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: No.
- Cable type 16X0.14 [PVC]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.03 mm
- Minimum bend radius, 58 mm fixed installation
- Minimum bend radius, movable 108 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 5000 (at radius ≥ 15x external diameter)
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 1
- Rating type 100 % ED
- Mating cycles > 50
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled round cable
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Colour code: Single core: Colour code: Single core
- White: IDC/FLK16 (10) = ()
- Brown: IDC/FLK16 (2) = ()
- Green: IDC/FLK16 (6) = ()
- Yellow: IDC/FLK16 (5) = ()
- Grey: IDC/FLK16 (9) = ()
- Blue: IDC/FLK16 (7) = ()
- Red IDC/FLK16 (3) = ()
- Black: IDC/FLK16 (1) = ()
- Stripping length (covering): 150 mm
- Violet: IDC/FLK16 (8) = ()
- White/green IDC/FLK16 (16) = ()
- White/yellow IDC/FLK16 (15) = ()
- White-red IDC/FLK16 (13) = ()
- White/black IDC/FLK16 (11) = ()
- White/brown IDC/FLK16 (12) = ()
- Orange: IDC/FLK16 (4) = ()
- Cable design: Cable for one module
- Current (per path, 50 °C): ≤ 1 A (in the unrolled state, see derating)
- Current (per path, 70 °C): ≤ 0.6 A (in the unrolled state, see derating)
- White-orange IDC/FLK16 (14) = ()
- 16X0.14 [PVC]
- Product type
Cable
- Cable length
3 m
- Connection
IDC-FLK power strip
- Total no. of pins
16
- Manufacturer part #
2318172
- Content
1 pc(s)
- Material
PVC
- Number of pins
16
- Type
CABLE-FLK16/OE/0,14/ 3,0M
- Length
3 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579271 Cable CABLE-FLK16/OE/0,14/ 3,0M Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579271 Cable CABLE-FLK16/OE/0,14/ 3,0M Phoenix Contact Content: 1 pc(s)
Description

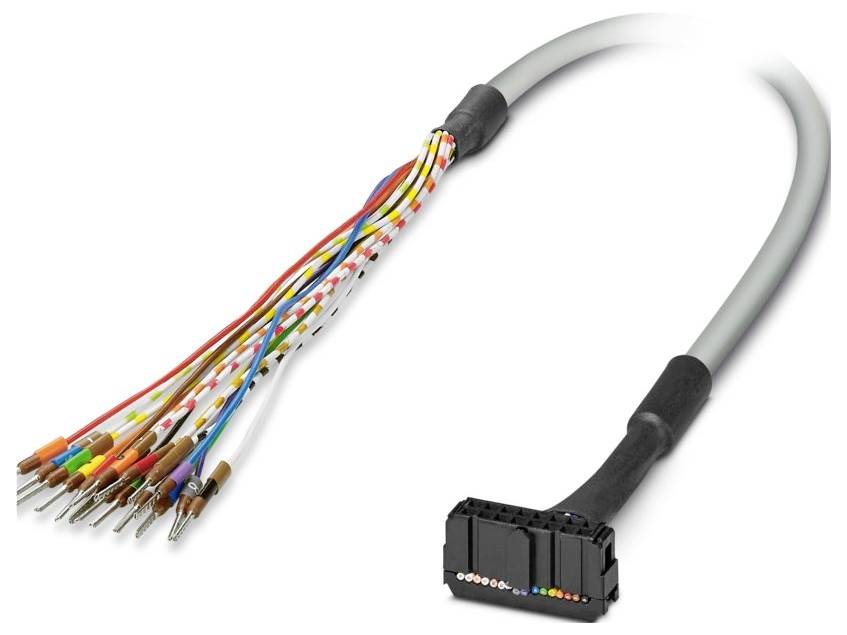

Pre-fabricated round cable; connector 1: Single wires (16-pin) (The wires are labeled and equipped with wire end sleeves); connector 2: IDC/FLK power strip (1x 16-pin); cable length: 3 m.
