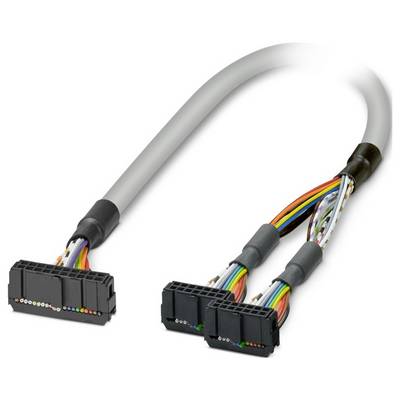

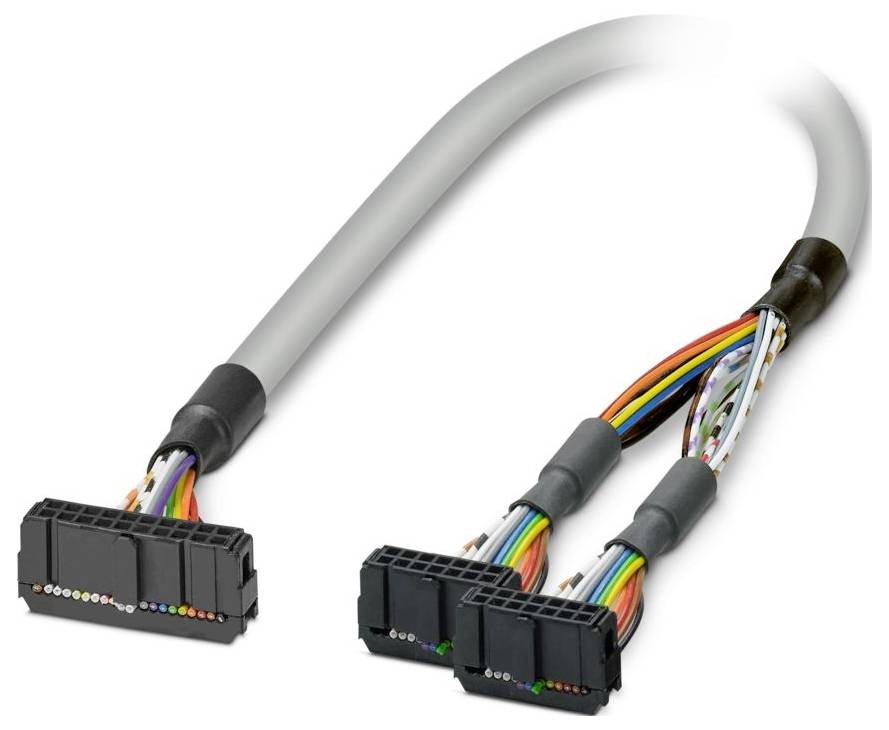

Cable FLK 20/2FLK14/EZ-DR/100/KONFEK Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Cable length
1 m
Connection
IDC-FLK power strip
Total no. of pins
20
Manufacturer part #
2298470
Datasheet (PDF)
Technical specifications
- Number of pins: 14
- Connection type: IDC/FLK power strip
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Cable outside diameter 7.60 mm ±0.4 mm
- Lead wire spacing 2.54 mm
- Connection according to standard IEC 60603-13 (in accordance with)
- Outer sheath, material: Semi-rigid PVC
- Material conductor: Tin-plated Cu-strand
- 1 m conductor length
- Cable cross-section: 20 x 0.14 mm²
- Wire resistance: ≤ 145 Ω/km (20 °C)
- Outer sheath, color: Grey
- Insulation resistance: ≥ 20 MΩ*km (20 °C)
- Protection type (installation location): ≥ IP54 (installation location)
- UL AWM style 2464/1061
- Shielded: No.
- Cable type: 20x0.14 [PVC]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.03 mm
- Minimum bend radius, 64 mm fixed installation
- Minimum bend radius, movable 120 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 5000 (at radius ≥ 15x external diameter)
- Flame retardant according to IEC 60332-1-2 (raw cable);VDE 0842, part 332-1-2 (raw cable) ;IEC 60332-3-22 (raw cable);UL VW-1;CSA FT-1
- Oil resistance: Against occasional splashes (raw cable)
- Number of connections: 2
- Rating type 100 % ED
- Mating cycles > 50
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: No.
- Ambient temperature (operation) (fixed installation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (operation) (moving laying): -10 °C ... 70 °C (moving laying)
- Conductor type: Assembled round cable
- Supported control: EMERSON DeltaV: Supported control: EMERSON DeltaV
- Matching I/O-card: VE4001S2T2B5;VE4002S1T2B6
- OPERATING VOLTAGE (AC) ≤ 30 V AC
- OPERATING VOLTAGE (DC): ≤ 60 V DC
- Supported control: Siemens ET 200SP: Supported control: Siemens ET 200SP
- Suitable peripheral module: 6ES7131-6BH01-0BA0 (base units A0/A1);6ES7131-6BH01-2BA0 (base units A0/A1);6ES7132-6BH01-0BA0 (base units A0/A1);6ES7132-6BH01-2BA0 (base units A0/A1)
- Colour code: Single core: Colour code: Single core
- WHITE IDC/FLK20 (10) = IDC/FLK14-2 (2)
- BROWN IDC/FLK20 (2) = IDC/FLK14-1 (2)
- GREEN IDC/FLK20 (6) = IDC/FLK14-1 (6)
- YELLOW IDC/FLK20 (5) = IDC/FLK14-1 (5)
- IDC/FLK20 (9) = IDC/FLK14-2 (1)
- BLUE IDC/FLK20 (7) = IDC/FLK14-1 (7)
- RED IDC/FLK20 (3) = IDC/FLK14-1 (3)
- BLACK IDC/FLK20 (1) = IDC/FLK14-1 (1)
- IDC/FLK20 (8) = IDC/FLK14-1 (8)
- White/green IDC/FLK20 (16) = IDC/FLK14-2 (8)
- White/yellow IDC/FLK20 (15) = IDC/FLK14-2 (7)
- White-gray: IDC/FLK20 (19) = IDC/FLK14-1 (9)
- White-blue IDC/FLK20 (17) = IDC/FLK14-2 (9)
- White-red IDC/FLK20 (13) = IDC/FLK14-2 (5)
- White/black IDC/FLK20 (11) = IDC/FLK14-2 (3)
- Brown-black: IDC/FLK20 (20) = IDC/FLK14-1 (10)
- White/brown IDC/FLK20 (12) = IDC/FLK14-2 (4)
- ORANGE IDC/FLK20 (4) = IDC/FLK14-1 (4)
- Cable design: Split cable for two modules
- Current (per path, 50 °C): ≤ 1 A (in the unrolled state, see derating)
- Current (per path, 70 °C): ≤ 0.6 A (in the unrolled state, see derating)
- White-orange IDC/FLK20 (14) = IDC/FLK14-2 (6)
- White-violet IDC/FLK20 (18) = IDC/FLK14-2 (10)
- 6ES7193-6BP00-0BA0;6ES7193-6BP00-2BA0;6ES7193-6BP00-0BA1;6ES7193-6BP00-0DA0;6ES7193-6BP00-2DA0;6ES7193-6BP00-0DA1
- 20X0.14 [ PVC]: 20X0.14 [PVC]
- Product type
Cable
- Cable length
1 m
- Connection
IDC-FLK power strip
- Total no. of pins
20
- Manufacturer part #
2298470
- Content
1 pc(s)
- Material
PVC
- Number of pins
20
- Type
FLK 20/2FLK14/EZ-DR/100/KONFEK
- Length
1 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579005 Cable FLK 20/2FLK14/EZ-DR/100/KONFEK Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579005 Cable FLK 20/2FLK14/EZ-DR/100/KONFEK Phoenix Contact Content: 1 pc(s)
Description
Assembled round cable; connector 1: IDC/FLK strip (1x 20-pin); connector 2: IDC/FLK strip (2x 14-pin); cable length: 1 m.
