Cable meter 226102 Softing CMPOE Networks
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
Only 2 Piece(s) available
Highlights & Details

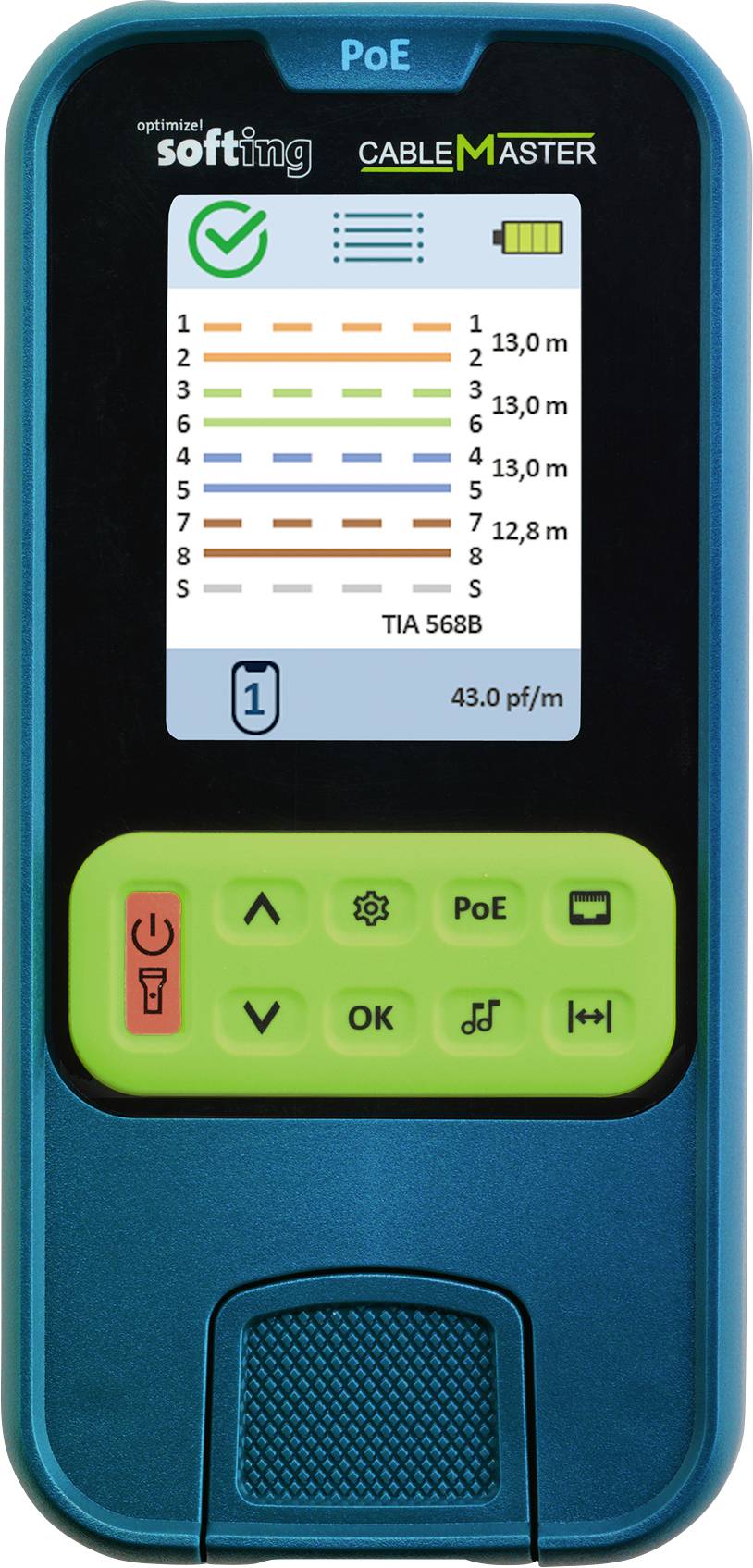

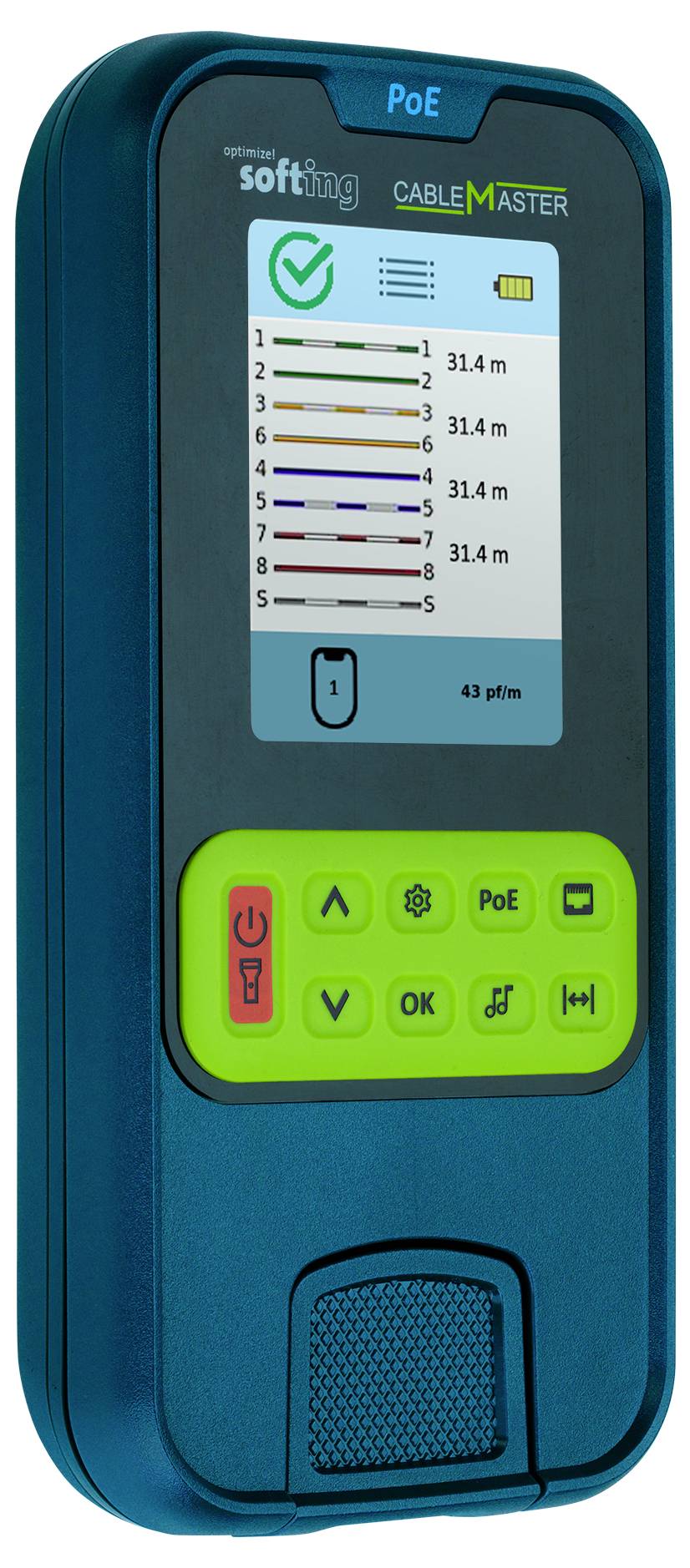

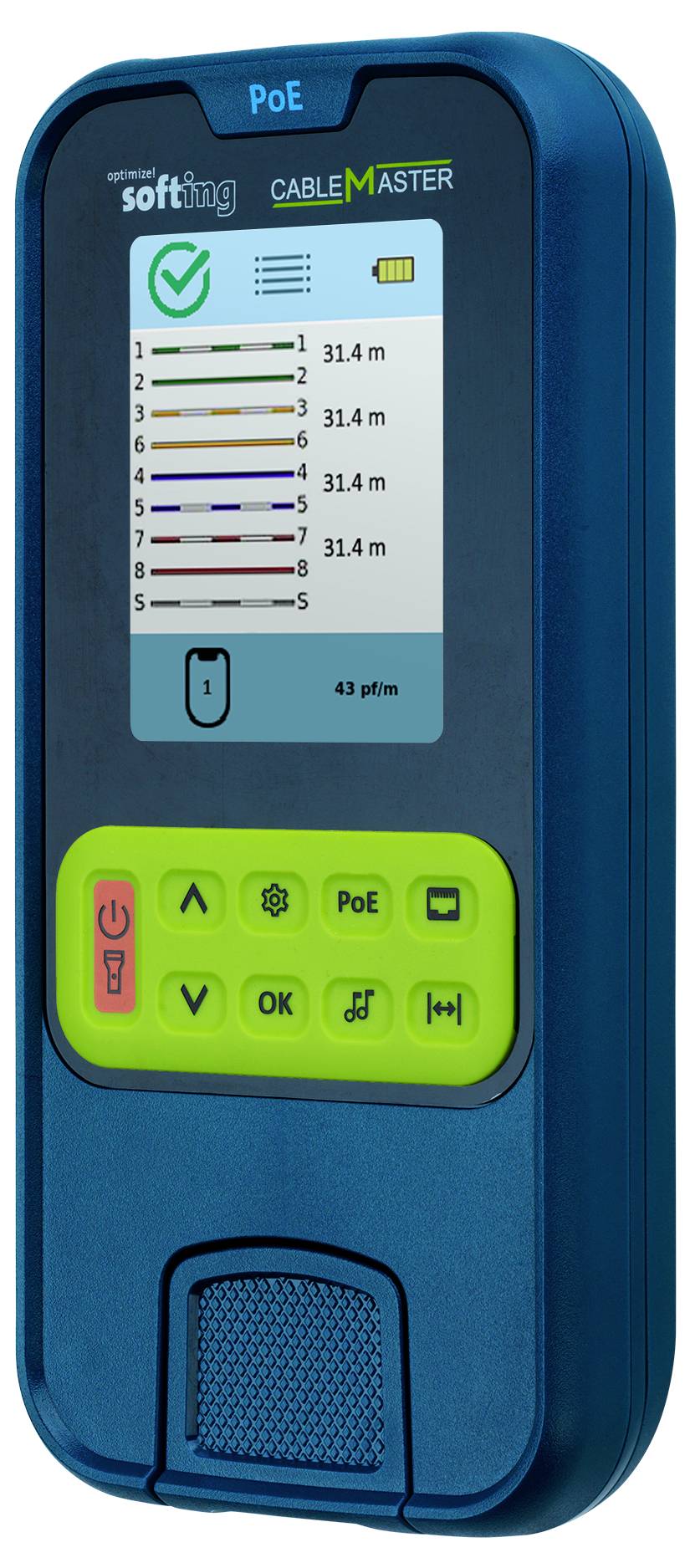

CableMaster PoE - Wiring and PoE+ Tester
Technical specifications
- Product type
Cable meter
- Function
Cable tracking
- Acoustic signal
Yes
- Display
Touchscreen
- Optical display
Yes
- Dim
(W x H x D) 85 x 38 x 175 mm
- Weight
0.416
- Range
Networks
- Features
PoE Pro Tester
- Width
85 mm
- Height
38 mm
- Depth
175 mm
- Type
CMPOE
Connection tester
Twisted Pair
TRUE
Touch screen
TRUE
FALSE
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3192642 Cable meter 226102 Softing CMPOE Networks
User & Safety Instructions
User & Safety Instructions 3192642 Cable meter 226102 Softing CMPOE Networks
Description
Handy wiring tester with integrated length measurement and tone generator.
In addition, the device detects PoE up to Class 8, 90W (PoE++) , and briefly applies power to the port to test the actual PoE power supply.
The device has a 3.5" color screen with graphical user interface and provides easy-to-understand test results.
Areas of application include: Pre-testing of cabling after installation and before final acceptance with a qualifier or certification; rapid testing of patch cables for correct wiring; locating of ports by means of tone generator and optionally available cable detectors such as: Softing CP15; diagnosis at ports which PoE up to 90W provide; PoE class detection and load application to the port to be tested; troubleshooting installation using PoE

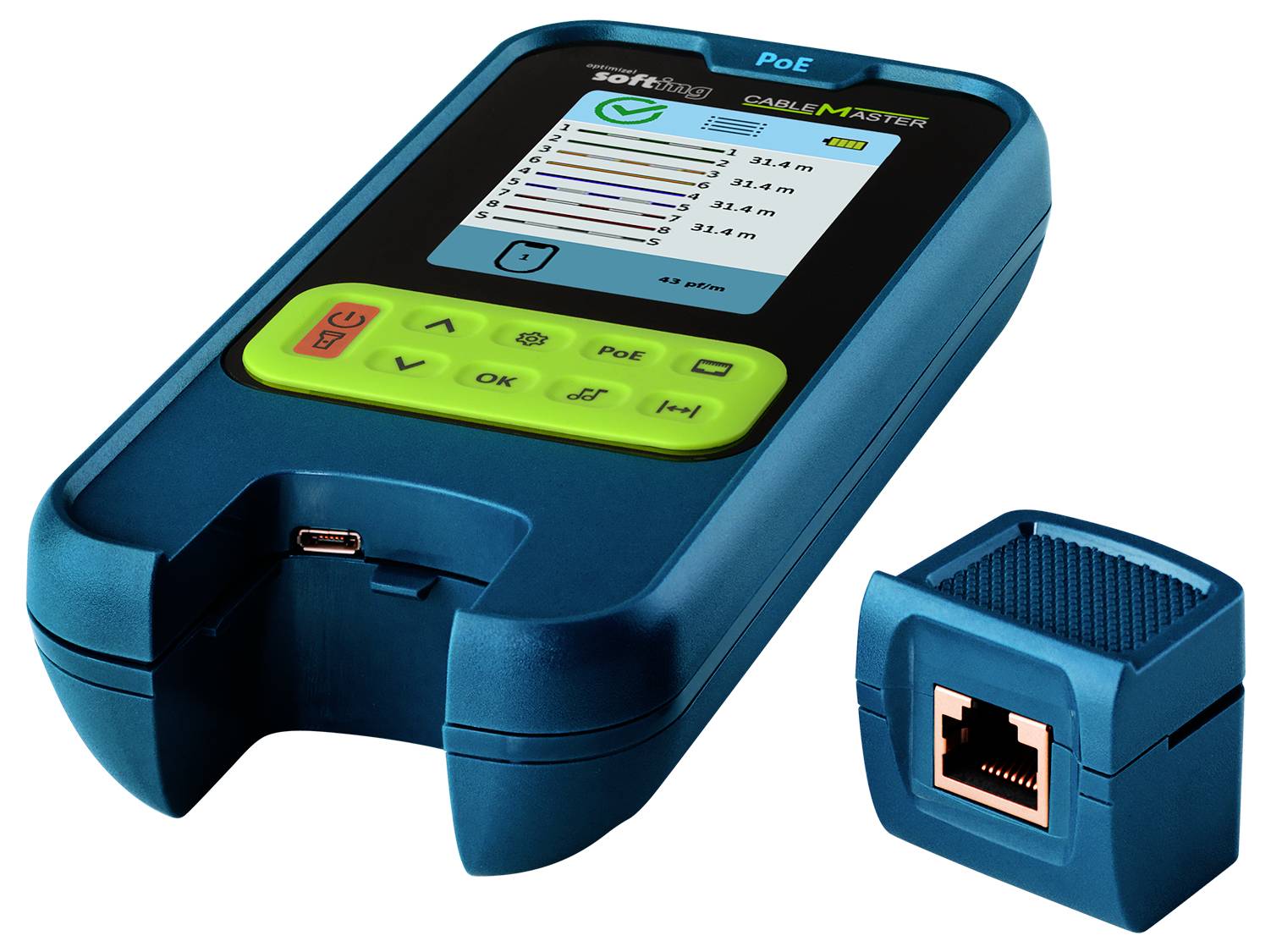

Contains:1 x CableMaster PoE with integrated remote, 1 x card with QR code with link to manual, 6 x AA battery (non-rechargeable)
This text is machine translated.
In addition, the device detects PoE up to Class 8, 90W (PoE++) , and briefly applies power to the port to test the actual PoE power supply.
The device has a 3.5" color screen with graphical user interface and provides easy-to-understand test results.
Areas of application include: Pre-testing of cabling after installation and before final acceptance with a qualifier or certification; rapid testing of patch cables for correct wiring; locating of ports by means of tone generator and optionally available cable detectors such as: Softing CP15; diagnosis at ports which PoE up to 90W provide; PoE class detection and load application to the port to be tested; troubleshooting installation using PoE
Contains:1 x CableMaster PoE with integrated remote, 1 x card with QR code with link to manual, 6 x AA battery (non-rechargeable)
