Cable meter 226115 Softing CMPOEKIT Networks
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 562.18 / piece)
€ 562.18
plus VAT.
14-day return policy included
Highlights & Details
CableMaster PoE Kit- Wiring- and PoE++ Tester
Technical specifications
- Product type
Cable meter
- Function
Cable tracking
- Acoustic signal
Yes
- Display
Touchscreen
- Optical display
Yes
- Test sockets
RJ45
- Dim
(W x H x D) 85 x 38 x 175 mm
- Weight
1.202
- Range
Networks
- Features
PoE Pro Tester
- Width
85 mm
- Height
38 mm
- Depth
175 mm
- Type
CMPOEKIT
Connection tester
Twisted Pair
TRUE
Touch screen
TRUE
FALSE
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3192638 Cable meter 226115 Softing CMPOEKIT Networks
User & Safety Instructions
User & Safety Instructions 3192638 Cable meter 226115 Softing CMPOEKIT Networks
Description
Handy wiring tester with integrated length measurement and tone generator.
In addition, the device detects PoE up to class 8, 90W (PoE++) , and briefly applies appropriate power to test the PoE power supply.
The device has a 3.5" color screen with graphical user interface, so the device is extremely easy to use and delivers easy-to-understand test results.
Areas of application include pre-testing of cabling after installation with a qualifier or certifier before final acceptance, quick test of patch cables for correct wiring, locating of ports by means of tone generator and cable finder Softing CP15, port identification by 24 pieces RJ45 port identifier, diagnosis at ports, which make PoE up to 90W available with recognition of the PoE class and apply load to the port to be tested or troubleshoot installation using PoE.

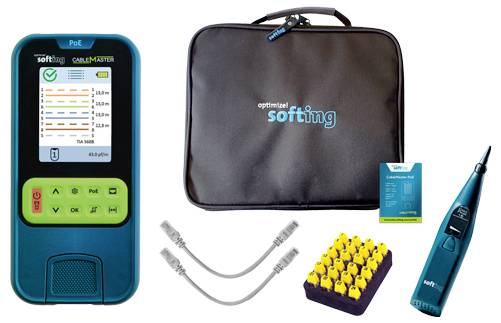

Includes: 1 x CableMaster PoE with integrated remote, 1 x card with QR code with link to manual, 6 x AA battery (non-rechargeable) , 1 x carrying case, 2 x Patch cable RJ45, 1 x CP15 tone probe, 1 x RJ45 port identifier set (1 - 24)
This text is machine translated.
In addition, the device detects PoE up to class 8, 90W (PoE++) , and briefly applies appropriate power to test the PoE power supply.
The device has a 3.5" color screen with graphical user interface, so the device is extremely easy to use and delivers easy-to-understand test results.
Areas of application include pre-testing of cabling after installation with a qualifier or certifier before final acceptance, quick test of patch cables for correct wiring, locating of ports by means of tone generator and cable finder Softing CP15, port identification by 24 pieces RJ45 port identifier, diagnosis at ports, which make PoE up to 90W available with recognition of the PoE class and apply load to the port to be tested or troubleshoot installation using PoE.
Includes: 1 x CableMaster PoE with integrated remote, 1 x card with QR code with link to manual, 6 x AA battery (non-rechargeable) , 1 x carrying case, 2 x Patch cable RJ45, 1 x CP15 tone probe, 1 x RJ45 port identifier set (1 - 24)
This text is machine translated.
