Cable meter 5081197 Fluke Networks DSX2-5-IE-K1 INT Telecom, Networks
EAN:
Part number:
Item no:
Number
Total (€ 24,217.65 / piece)
€ 24,217.65
plus VAT.
14-day return policy included
Highlights & Details
Versiv2 main unit WLAN activated and remote device + 1 GHz DSX-5000 module (2) + MINTERX(2), M12D(2), CAT 6A/Class EA(2) channel adapters
Technical specifications
- Function: Attenuation, interruption, short circuit, crossing (wire map), length, Runtime (propagation delay), delay difference (delay skew), DC-loop resistance, resistance imbalance, backflow damping (RL), Near Crosstalk (NEXT), PS-NEXT, ACR-N, ACR-F, Alien Crosstalk (ANEXT)
- LCD (14.5 cm / 5.7" touchscreen)
- Modular (expandable)
- Touchscreen
- Integrated Wi-Fi
- Operation via accumulators
- Specialized for M12 Industrial Ethernet
- Charging time: 4 hours (from 10% to 90%)
- Frequency range 1000 MHz (ANSI/TIA Level 2G / IEC Level V)
- Operating temperature: 0 °C to 45 °C
- Internal memory: Up to 12,000 CAT 6A measurements with plots
- Product type
Cable meter
- Function
Break
- Max. cable length
150 m
- Acoustic signal
Yes
- Display
LCD
- Optical display
Yes
- Test sockets
RJ45
- Dim
(L x W x H) 66.7 x 133.3 x 279.4 mm
Manufacturer's standards (with certificate)
- Weight
1.28 kg
- Range
Telecom
Networks
- Features
Touchscreen
- Reading category
CAT I
- Width
133.3 mm
- Height
279.4 mm
- Length
66.7 mm
- Type
DSX2-5-IE-K1 INT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3841436 Cable meter 5081197 Fluke Networks DSX2-5-IE-K1 INT Telecom, Networks
Description
The Fluke Networks DSX2-5-IE-K1 INT is a specialized Versiv2 complete set for certification and troubleshooting of industrial Ethernet networks (Industrial Ethernet). It combines the Versiv2 main unit (WLAN activated) and the remote device with the DSX-5000 copper measuring modules. Adapters for the most common interfaces in factory automation are included: M12X (8-pin), M12D (4-pin) and RJ45 CAT 6A channel adapters. The system offers a precise graphical error cause analysis (HDTDR/HDTDX) for a quick localization of cable interruptions, shielding errors or squeezing in the rough industrial environment.
This text is machine translated.
This text is machine translated.
Features
- 1 GHz DSX-5000 CableAnalyzer™ WLAN enabled: Versiv2 main and remote + (2) DSX copper modules + channel adapter for M12X (2), M12D (2), CAT 6A/Class EA (2)

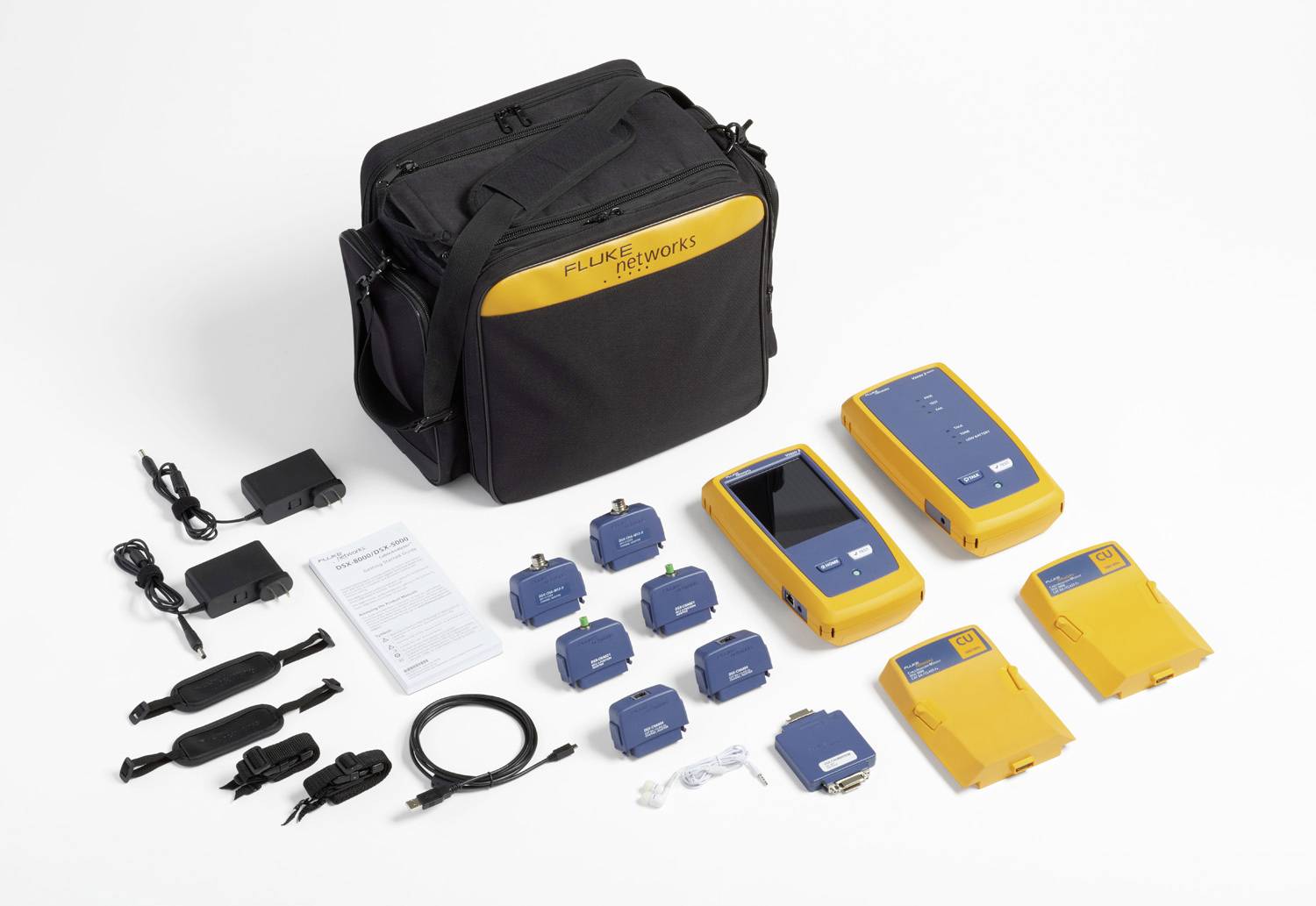

Scope of delivery
- 1x Versiv2 mainframe with WLAN
- 1x Versiv2 remote device
- 2x DSX-5000 CableAnalyzer modules (1 GHz)
- 2x M12-X channel adapter
- 2x M12-D channel adapter
- 2x CAT 6A / Class EA RJ45 channel adapter
- 2x Li-Ion battery pack
- 2x AC chargers/power supplies
- 2x Headsets
- 2x carrying strap
- USB cable
- Robust carry bag
- Calibration certificate
- Quick guide
