Name: Cable meter PCE-CLT 100-ICA PCE Instruments PCE-CLT 100-ICA Calibrated to (ISO standards)
Brand: PCE Instruments
SKU: 3812450

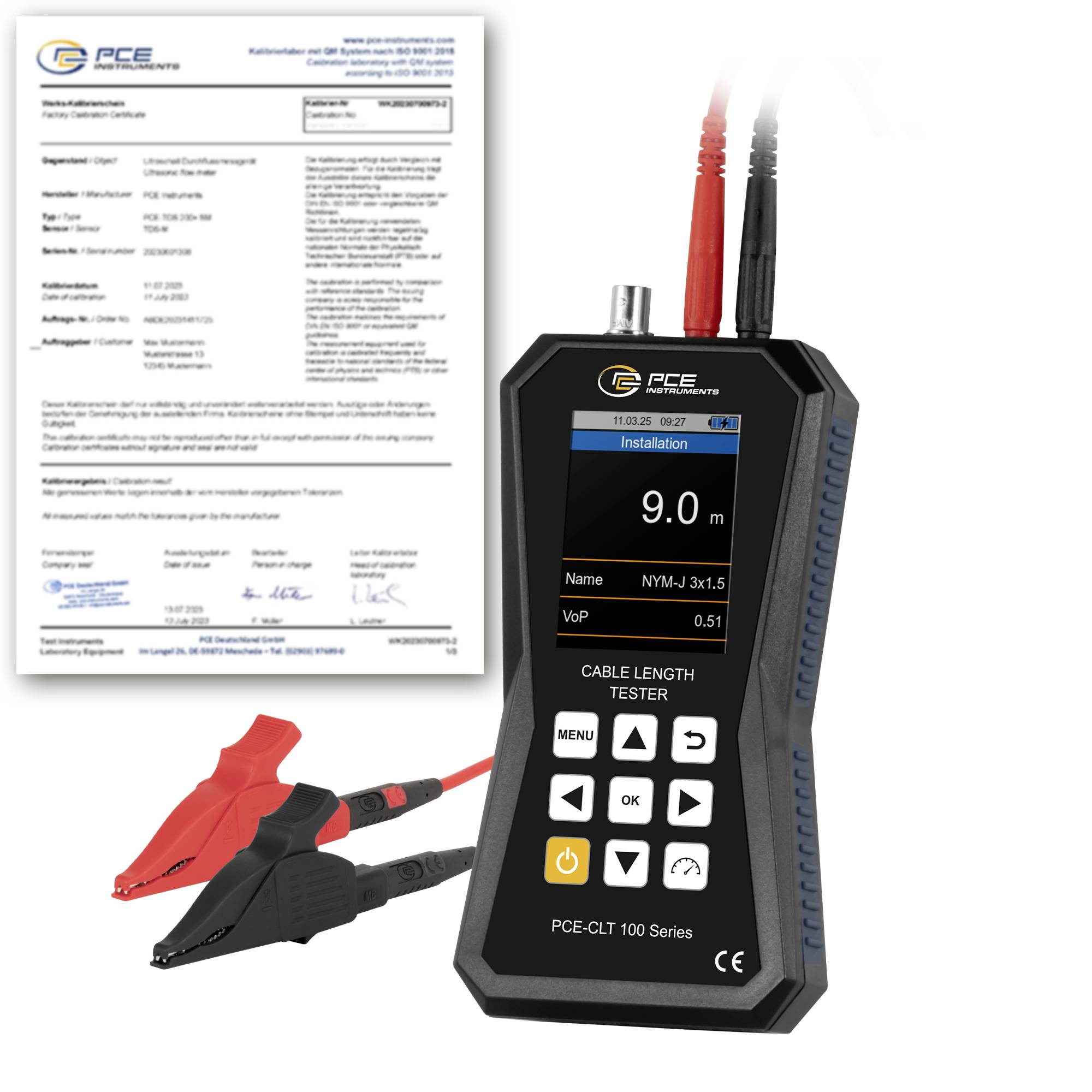

PCE cable length tester showing an insulation reading of 9.0 m, with red and black test leads and a calibration certificate beside it.

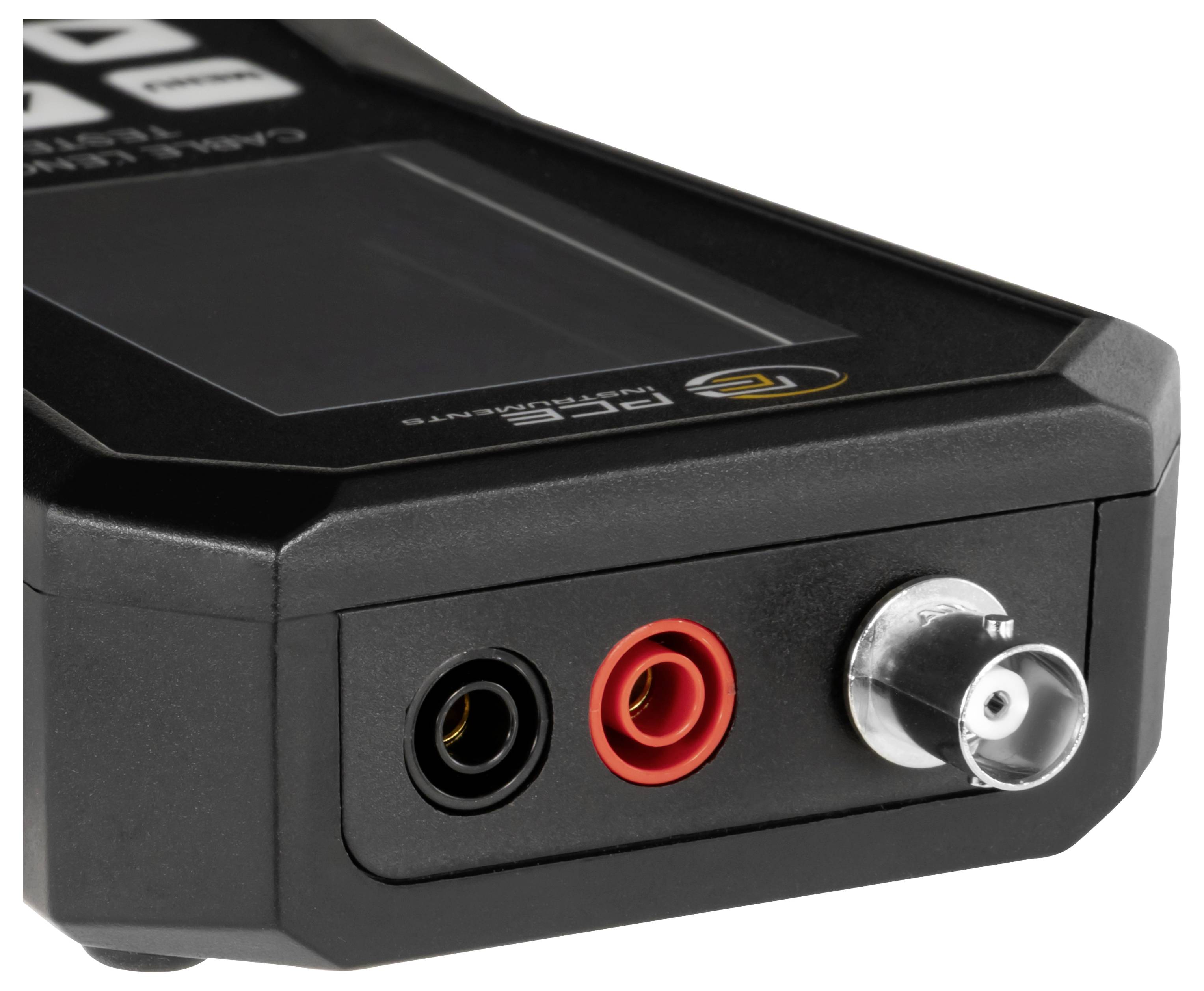

Close-up of a black handheld electronic device showing front ports: black and red audio jacks and a clear coaxial connector.<br>

Close-up of a black electronic device showing a front USB-C port and top control buttons, including an orange power button.<br>

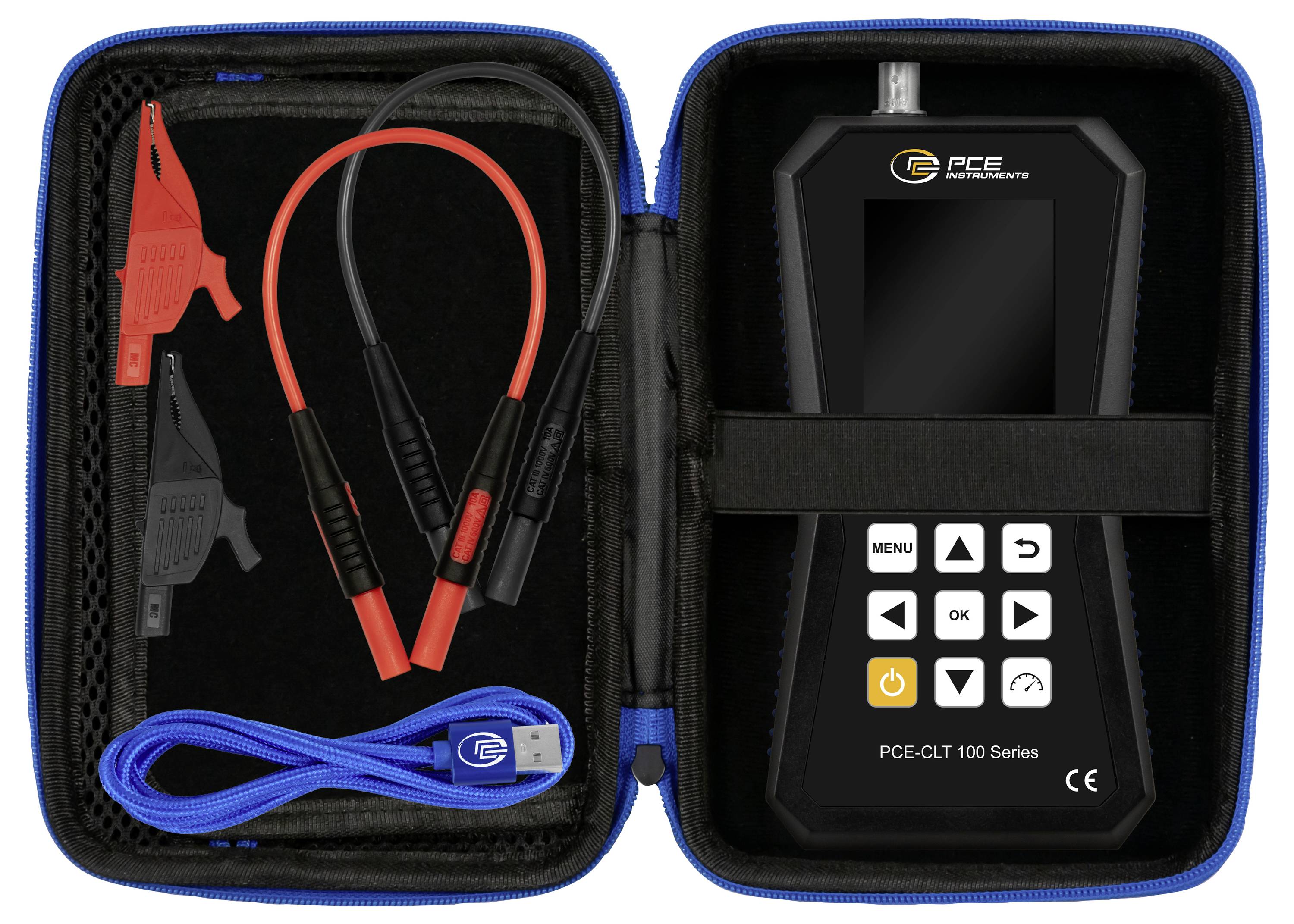

Open carrying case with a PCE-CLT 100 Series handheld device, test leads, clips, and a blue USB cable organized inside.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments cable length tester PCE-CLT 100-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CLT 100-ICA
Measuring range 5 ... 1500 m
Measurements within seconds
Data storage
Database of 86 cable types
User-specific cable database
Adjustable shortening factors (VOP)
2.8 inches TFT color display
Incl. ISO calibration certificate

Technical specifications

Length
Measuring range 5 ... 1500 m
Resolution 0.1 m
Accuracy ± (1 % of mw. + 0.2 m)
General Technical Data
Measurement principle runtime procedure (TDR)
Unit(s) m, ft
BNC connections, 4 mm laboratory socket
Display type LCD
Display size 2.8 inches
Storage medium Internal memory
Memory capacity: 100 measurements
Interface USB-C
Operating time 20 h
Operation time additional information depends on the display brightness
Number of cable types in database 86
Cable types Cat3,Cat5,Cat5e,Cat6,Cat6a,Cat7,Cat7,Cat7,Cat5,Cat5, Cat5, 5X1.5, H07RN 5X1.5, H07RN 5X2.5 NF, H07RN 5X25, H07RN 5X2.5 NF, H07RN 5X25 H07RN, H07RN-H05X1.5, H07RN-H00, H07RN 5X2.5 NF, H05X25, H07RN-H05X25, H07RN-H05X25 NF, H07RN-H05X2.5 NF NYM-J 3x2.5, NYM-J 3x5, NYM-J 4x1.5, NYM-J, NYM-J 4x1.5, NYM-NY5X1.5, NY5X2.5, NYM-NY5X2.5, NYM-NY5X1.5, NYM-J, 5X1.5, NYM-J, 5X1.5, NYnear 5X1.5, NYnear 5X2.5, NYnear 5X2.5, NYM-NYnear 5X2.5
Cable cross-section from ... to 0.25 ... 16 mm²
Reduction factor from ... to 0 ... 0.99
Menu language German, English (GB), English (US), Spanish, Italian, French, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish
Protection class (device) IP50
Power supply USB 5V DC 500mA
Battery/Battery 1 x 3.7 V LP785060 , Lithium-ion polymer battery
Capacity 2500 mAh
Power 9.25 Wh
Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
Dimensions ( L x W x H ) 165 x 85 x 32 mm
Weight: 255 g

Product type: Cable meter

Function: Continuity
Location

Max. cable length: 1500 m

Acoustic signal: No

Display: LCD

Optical display: Yes

Test sockets: BNC socket
4 mm socket

Dim: (L x W x H) 165 x 85 x 32 mm

: ISO standards

Weight: 255 g

Range: Networks

Features: Data export mode

Calibration service: ISO calibration certificate included

Width: 85 mm

Height: 32 mm

Length: 165 mm

Depth: 32 mm

Type: PCE-CLT 100-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812450 Cable meter PCE-CLT 100-ICA PCE Instruments PCE-CLT 100-ICA Calibrated to (ISO standards)

User & Safety Instructions

User & Safety Instructions 3812450 Cable meter PCE-CLT 100-ICA PCE Instruments PCE-CLT 100-ICA Calibrated to (ISO standards)

Description

The cable length tester is a versatile, reliable and precise measuring device for determining the cable lengths after the tested runtime process. This professional cable length tester allows you to reliably measure cables without unrolling them – Ideal for use in crafts, electrical installation and maintenance.

Thanks to the integrated cable database with 86 different types of cable, as well as the option to learn-in cables and to adjust shortening factors individually, the cable length tester can be used especially flexibly. The connection is made comfortable via 4 mm laboratory jacks with the provided alligator clips or via a BNC socket for coaxial cables. Cable cross-sections from 0.25 mm² to 16 mm² are supported, WAS makes the cable length tester suitable for a wide range of applications.

A 2.8 inch display provides for a clear display of all measurement results, the multi-lingual menu enables an easy and user-friendly use. The measurement results can be stored internally and called up again on the device. With a battery life of up to 20 hours and compact dimensions, the cable length tester is optimally designed for mobile use and is ideal for the daily use on construction sites or in workshops.

The cable length tester is thus the perfect solution for all, who are looking for a reliable, precise and handy measuring device for determining the length of electrical cables.

This text is machine translated.
