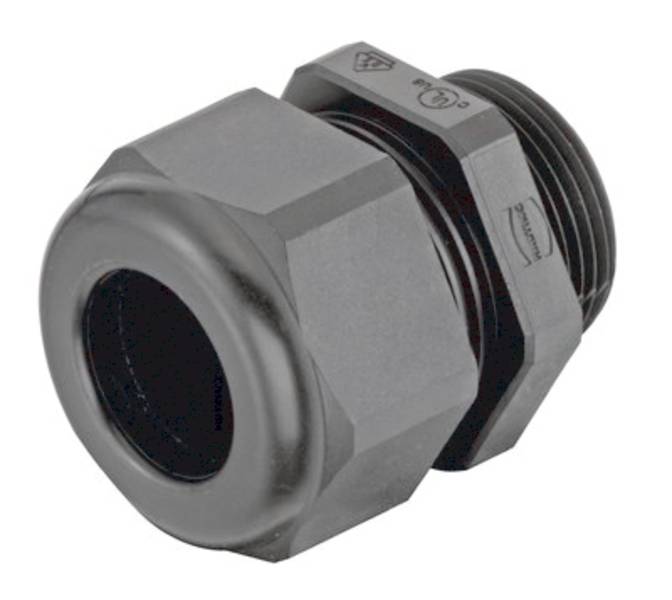

Cable screw gland 19000005183 HARTING Content: 1 pc(s) Cable screw gland
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Cable screw gland
Type
19 00 000 5183
Manufacturer part #
19000005183
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Temperature limit: -40 ... +100 °C
- Material flammability class acc. To UL 94: V-0
- Net weight: 10.98 g
- Protection class according to IEC 60529:IP68;IP69 / IPX9K according to ISO 20653
- Tightening torque: ≤4.5 Nm (depending on cable and sealing insert used)
- Accessory type: Cable gland
- Approvals DNV GL
- Clamping range: 6 ... 12 mm
- Housing series: HAN® CGM-P
- Material sealing: NBR
- Spanner opening 24
- Screw connection size M20
- Material screwed cable glands: Polyamide (PA)
- Colour cable screwing RAL 9005 (jet black)
- Width across corners 26.4 mm
- Packaging type
Piece
- Type
19 00 000 5183
- Product type
Cable screw gland
- Manufacturer part #
19000005183
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
100 °C
Black
FALSE
Other
24 mm
Plastic
26.4 mm
IP68
Documents & Downloads
Datasheet
Datasheet 3008474 Cable screw gland 19000005183 HARTING Content: 1 pc(s) Cable screw gland
Datasheet 3008474 Cable screw gland 19000005183 HARTING Content: 1 pc(s) Cable screw gland
User & Safety Instructions
User & Safety Instructions 3008474 Cable screw gland 19000005183 HARTING Content: 1 pc(s) Cable screw gland
Description
Cable gland, M20, clamping range: 6 ... 12 mm, material screwed cable glands: Polyamide (PA), IP68, IP69 / IPX9K according to ISO 20653
