Buy Cable tester 13.99.3003 Value Telecom, Networks

Unavailable

29 Piece(s)

Show alternatives

Sales and shipping:

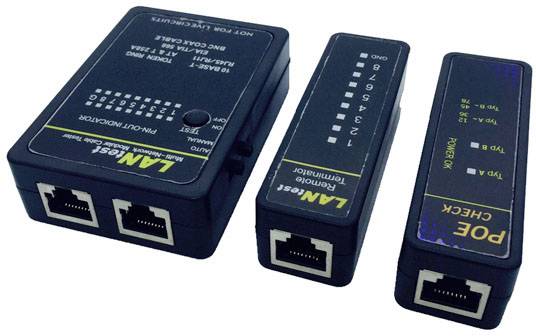

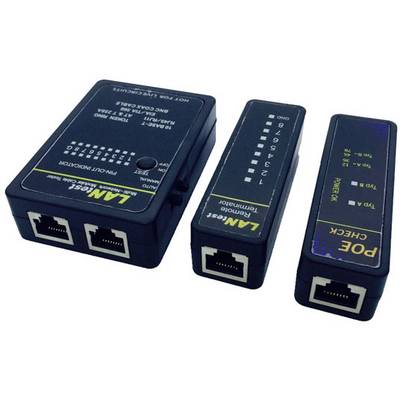

VALUE LANtest multi-network cable & PoE tester

User & Safety Instructions 2342537 Cable tester 13.99.3003 Value Telecom, Networks

Continuity test of 8-pin data cables with attached RJ-45 plugs and of coaxial cables with BNC plug

This text is machine translated.

The device detects open and short-circuited (wire/wire or wire/shield) connections
A two-line display (LEDs) shows sequentially which pin of the RJ-45 plug of cable end A is connected to which pin of the RJ-45 plug of cable end B; a manual or automatic switching is possible. In the event of a short circuit, more than two LEDs light up at the same time
The device has two RJ-45 sockets (e.g. for testing patch cables); with the enclosed remote unit, cables laid in the wall can also be tested
Two adapter cables (BNC/RJ-45) are included for testing coaxial cables
With the enclosed PoE check, it can be tested whether PoE is present on a twisted pair cable and, if necessary, which PoE mode (A = endspan / B = midspan)

9V block battery is not included in the delivery
Tester, remote unit, PoE check with test cable, 2x BNC adapter cable, BNC coupling, operating instructions
