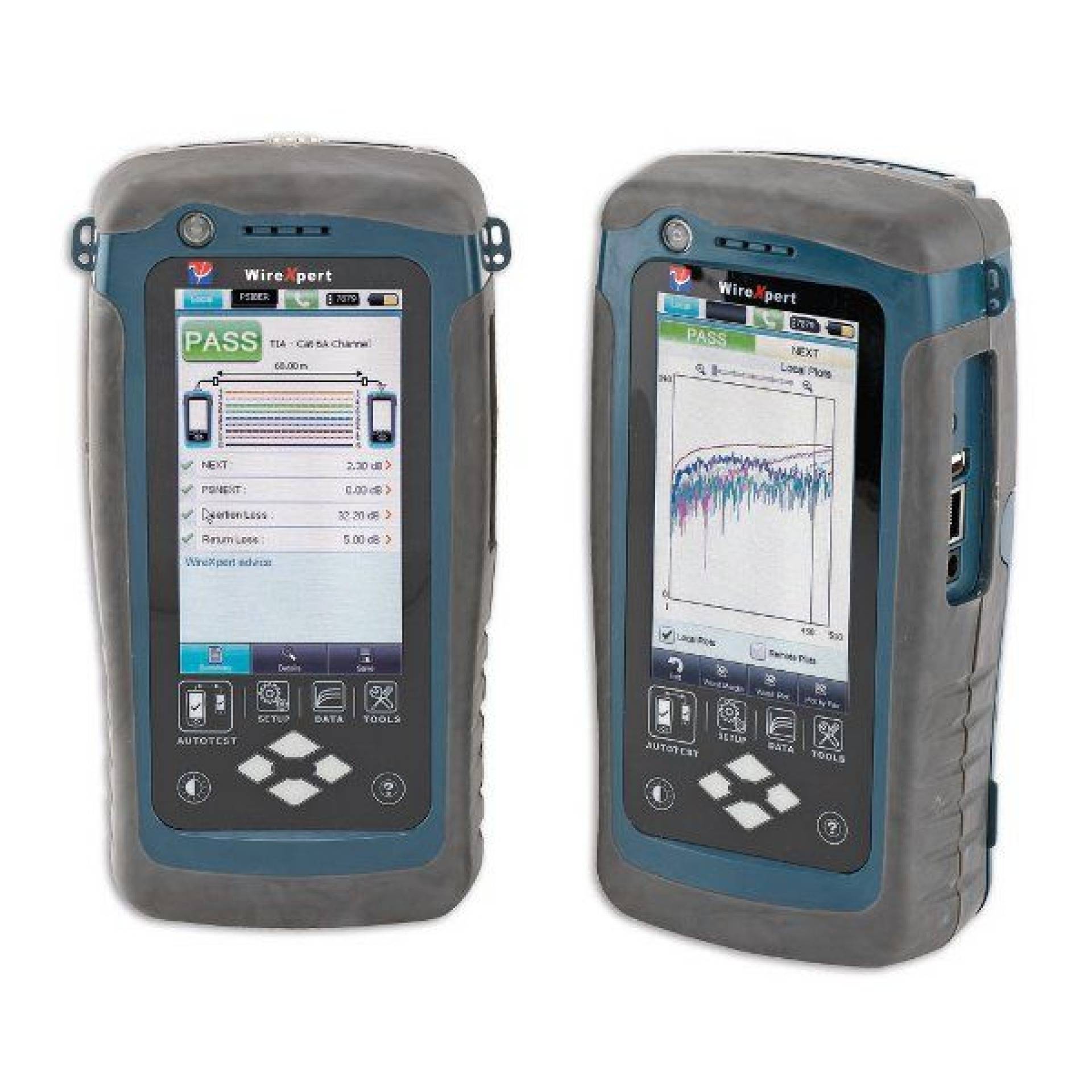

Cable tester 228071 Softing WX500
EAN:
Part number:
Item no:
Highlights & Details
Technical specifications
- Display type: Touchscreen
- Suitable for network protocol measurement: Yes
- Measured value memory: Yes
- With PC/printer interface: Yes
- Product type
Cable tester
- Display
Touchscreen
- Optical display
Yes
- Dim
(W x H x D) 126 x 232 x 87 mm
- Weight
5.371
- Features
Touchscreen
- Width
126 mm
- Height
232 mm
- Depth
87 mm
- Type
WX500
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799134 Cable tester 228071 Softing WX500
Description
Features:
Extended cable certification up to 500 MHz
Industry Standard Certification - Class D/E/EA and Category 5e/6/6A
Meets TIA and ISO Level IIIe precision requirements
Patch cord certification tests
Test Industrial Ethernet with RJ45 and M12 connectivity, E2E connectivity tests
Advanced reporting and documentation
Cost-effective cable certified for on-site cabling and Industrial Ethernet
Ability to upgrade to WX4500 through paid software update and recalibration

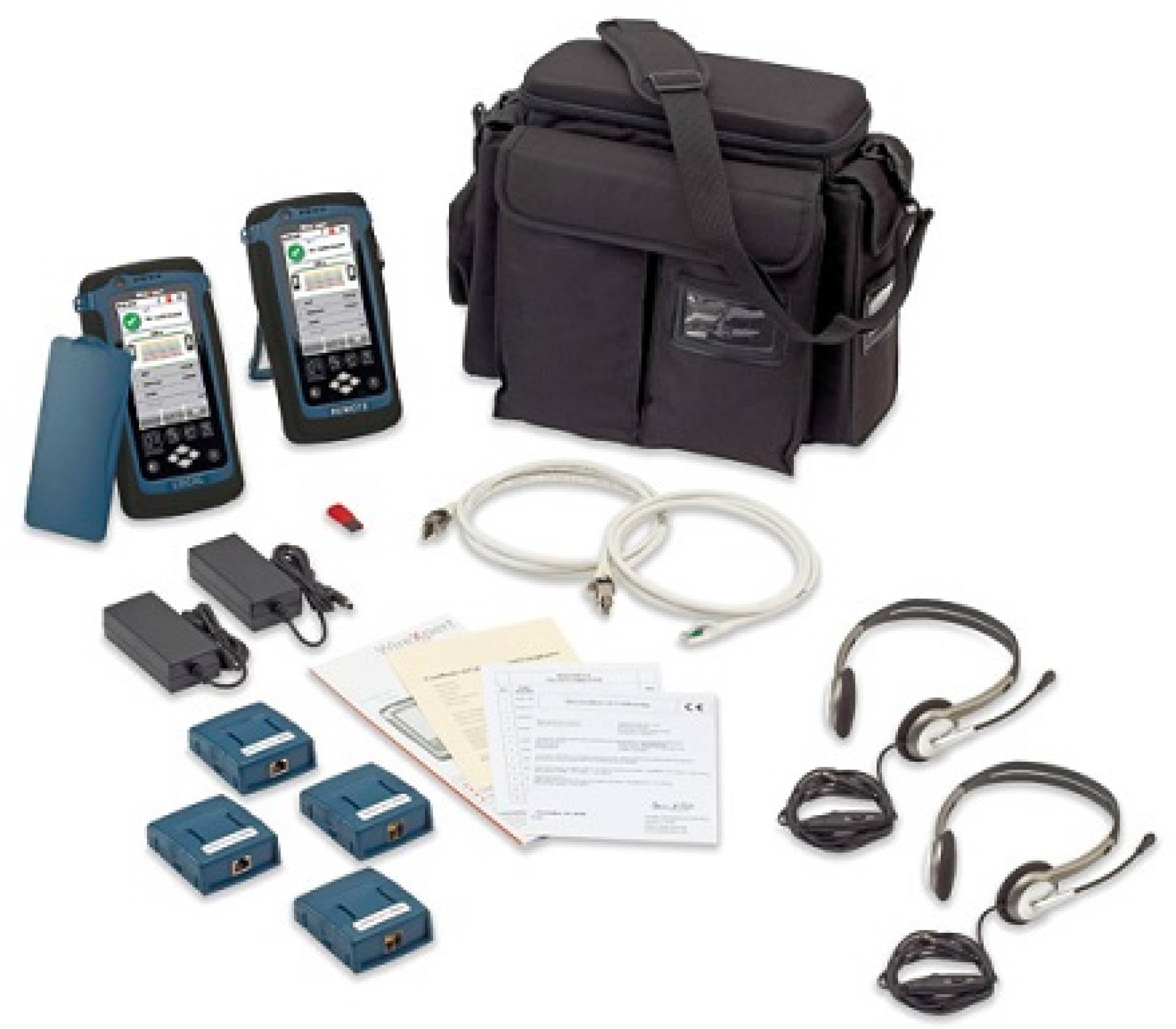

Supplied with:
2 units of measurement, LOCAL and REMOTE
1 pairs of channel adapters for CAT 6A, 1 pair of link adapters for CAT 6A
2 headphones, Li-ion batteries, power supply, USB-stick, carry bag, Calibration certification and reporting software
This text is machine translated.
Extended cable certification up to 500 MHz
Industry Standard Certification - Class D/E/EA and Category 5e/6/6A
Meets TIA and ISO Level IIIe precision requirements
Patch cord certification tests
Test Industrial Ethernet with RJ45 and M12 connectivity, E2E connectivity tests
Advanced reporting and documentation
Cost-effective cable certified for on-site cabling and Industrial Ethernet
Ability to upgrade to WX4500 through paid software update and recalibration
Supplied with:
2 units of measurement, LOCAL and REMOTE
1 pairs of channel adapters for CAT 6A, 1 pair of link adapters for CAT 6A
2 headphones, Li-ion batteries, power supply, USB-stick, carry bag, Calibration certification and reporting software
This text is machine translated.
