Cable tester 258898 Hobbes HOBBES TEST-i All-in-One Kabel-/Schnitts Networks
EAN:
Part number:
Item no:
Highlights & Details
HOBBES TEST-i Black, Yellow
Technical specifications
- Product color: Black, yellow
- Product type
Cable tester
- Function
Location
- Display
LCD
- Optical display
Yes
- Dim
(W x H x D) 170 x 80 x 290 mm
- Weight
1.18
- Range
Networks
- Features
Data export mode
- Width
170 mm
- Height
80 mm
- Depth
290 mm
- Type
HOBBES TEST-i All-in-One Kabel-/Schnitts
- Factory colour
Multicolour
- UKCA
not relevant
- Number of batteries supported
1
- Operating voltage
9 V
Documents & Downloads
Datasheet
Datasheet 3796755 Cable tester 258898 Hobbes HOBBES TEST-i All-in-One Kabel-/Schnitts Networks
User & Safety Instructions
User & Safety Instructions 3796755 Cable tester 258898 Hobbes HOBBES TEST-i All-in-One Kabel-/Schnitts Networks
Description

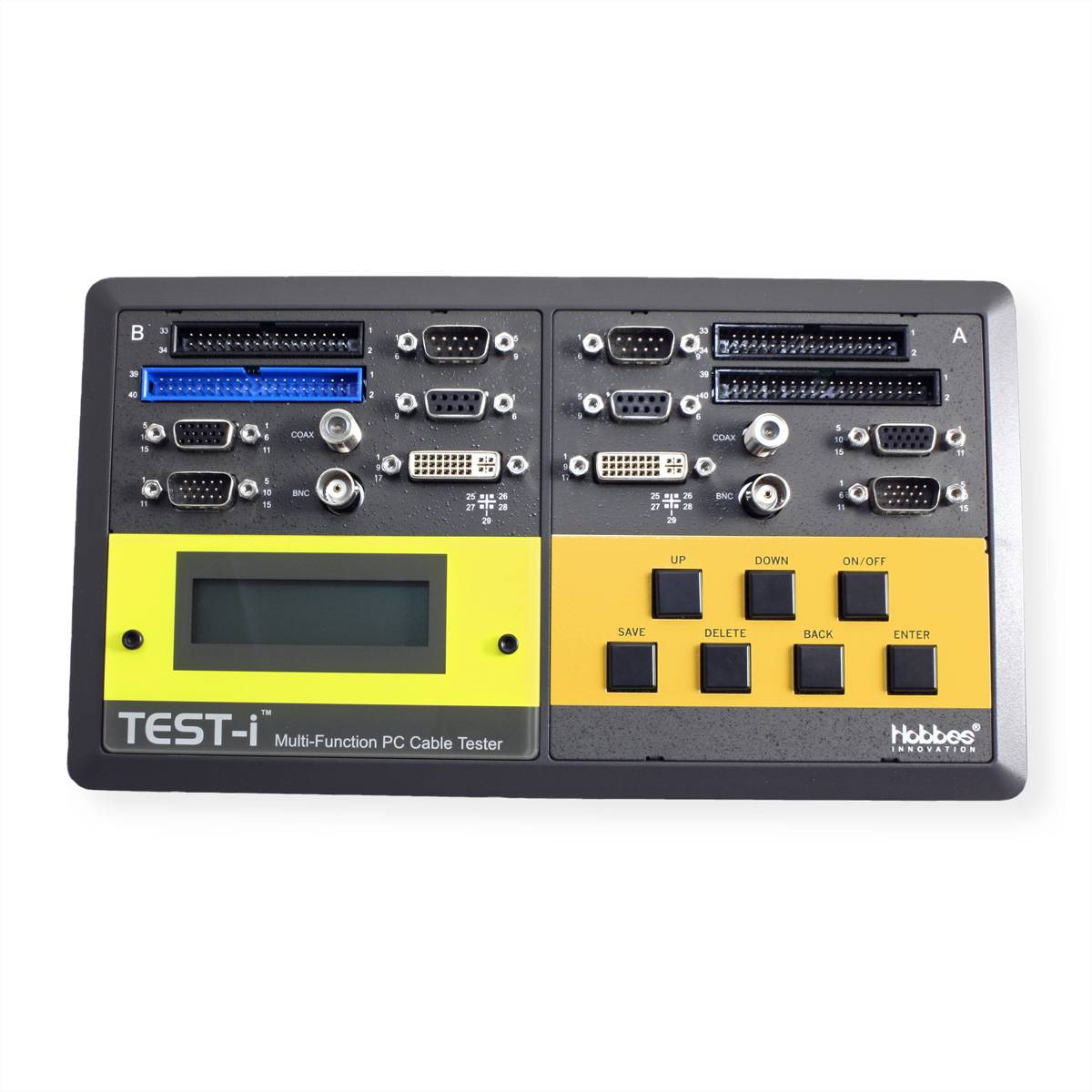

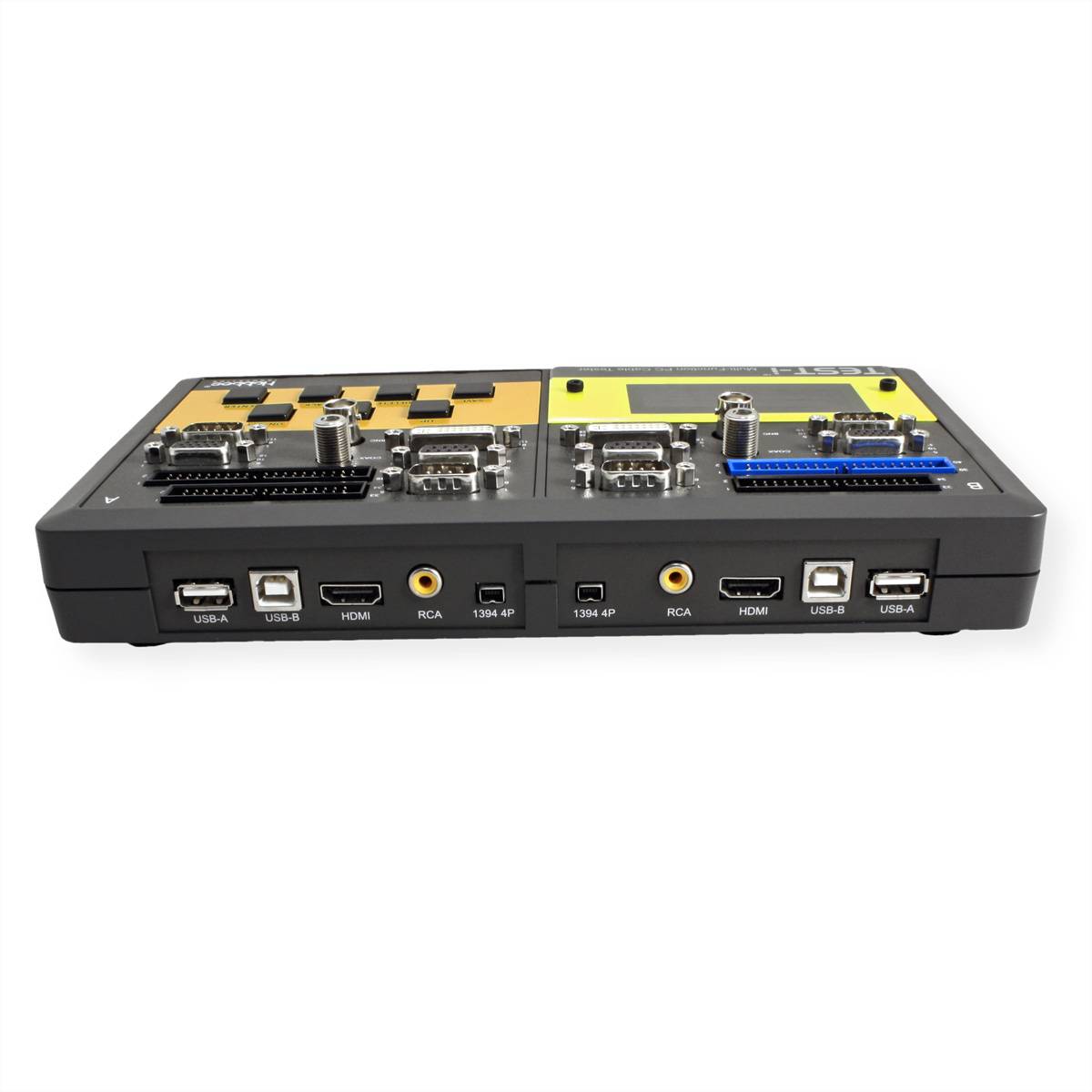

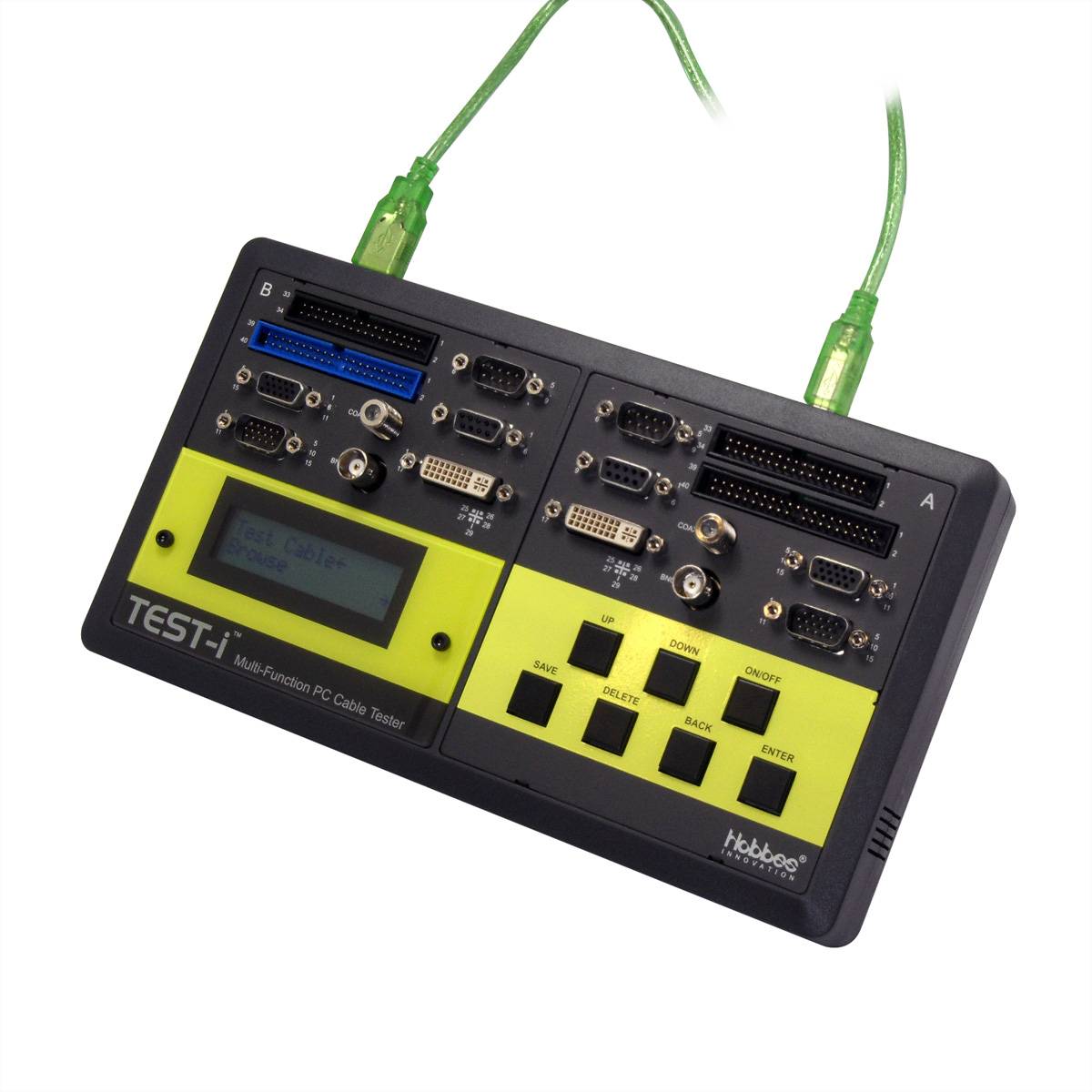

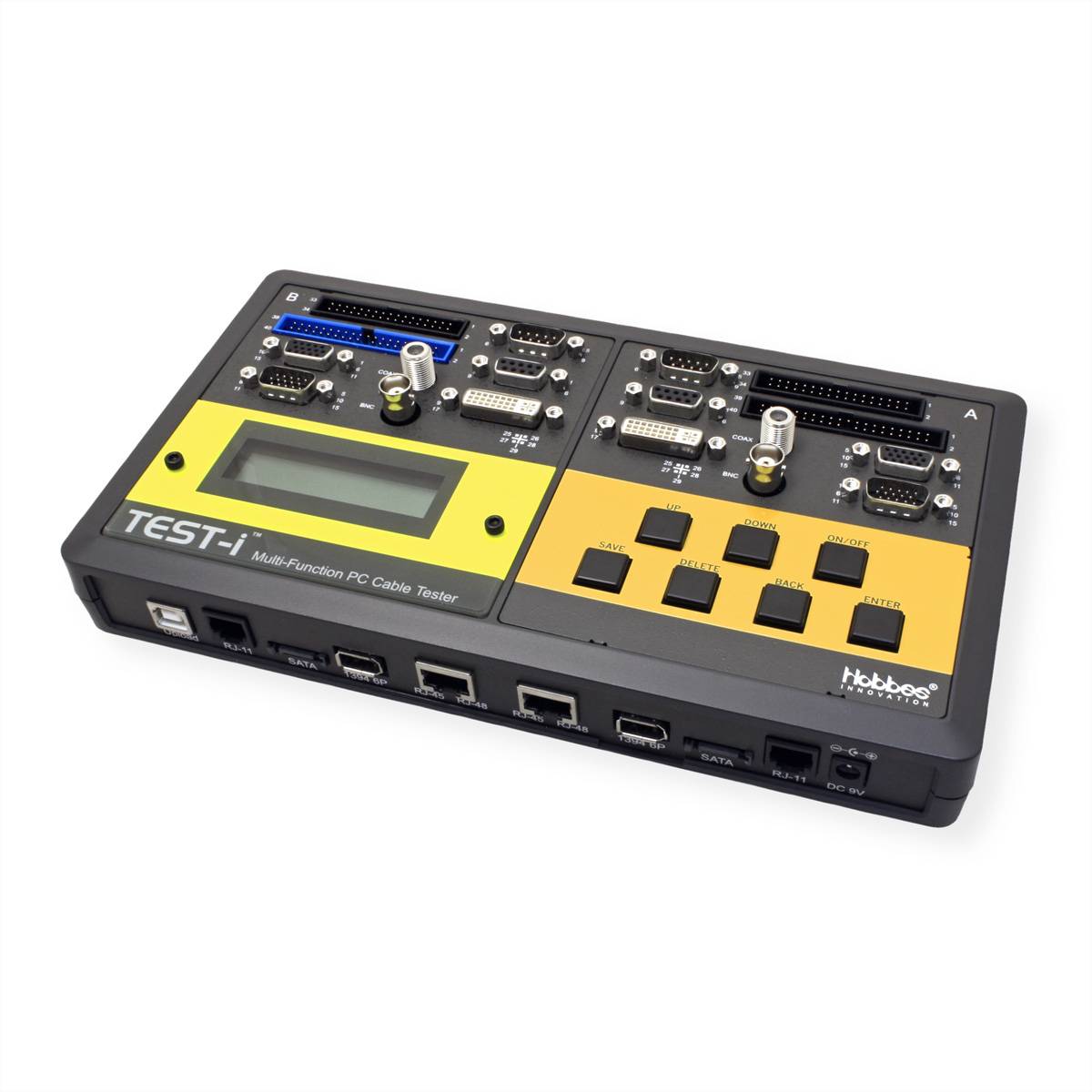

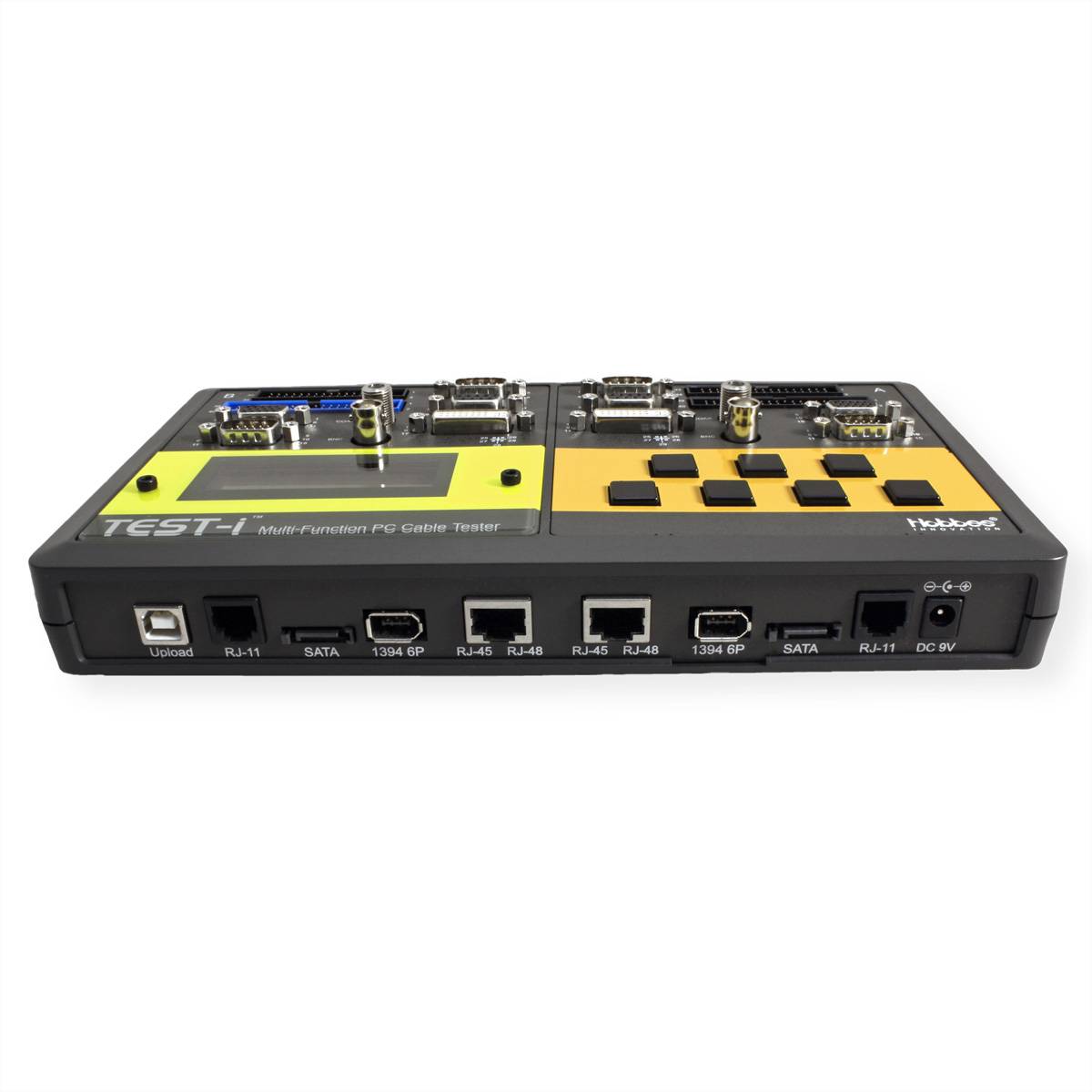

The third generation of the PC cable tester - Hobbes TEST-i is designed specifically for requirements of modern test environments. The TEST-i tests and analyzes a broad spectrum of PC connector types (including DVI and HDMI) and most of the usual flat band cables in the PC field.
Thereby, the Hobbes TEST-i analyzes the cables not only for wiring errors but also shows the wiring of the individual wires in the plug. The result is displayed in the so-called "Pin to Pin" procedure. In addition, the TEST-i offers the possibility to store the last 100 measurement results through its internal memory and to transfer them to a PC via the USB connection. The easy-to-read LCD display (with backlighting for working in low-light conditions) means that test results can be read and tested. Even especially at Hobbes TEST-i it is possible to combine different plug types. This allows you to check individual cables quickly and easily. Through the integrated quick-test function the cables to be tested can be compared with a pre-defined reference cable and thus increase the working speed while testing.
The Hobbes TEST-i is thus a useful and useful tool for system integrators and cable assemblies.
- Identify open, short-circuited, miswired and crossed cable connections
- Supports 18 different ribbon cable types
- 100 measurement results can be stored and transferred to a PC via USB
- Alphanumeric LCD display with backlight
- Battery level indicator
This text is machine translated.
Thereby, the Hobbes TEST-i analyzes the cables not only for wiring errors but also shows the wiring of the individual wires in the plug. The result is displayed in the so-called "Pin to Pin" procedure. In addition, the TEST-i offers the possibility to store the last 100 measurement results through its internal memory and to transfer them to a PC via the USB connection. The easy-to-read LCD display (with backlighting for working in low-light conditions) means that test results can be read and tested. Even especially at Hobbes TEST-i it is possible to combine different plug types. This allows you to check individual cables quickly and easily. Through the integrated quick-test function the cables to be tested can be compared with a pre-defined reference cable and thus increase the working speed while testing.
The Hobbes TEST-i is thus a useful and useful tool for system integrators and cable assemblies.
- Identify open, short-circuited, miswired and crossed cable connections
- Supports 18 different ribbon cable types
- 100 measurement results can be stored and transferred to a PC via USB
- Alphanumeric LCD display with backlight
- Battery level indicator
This text is machine translated.
Scope of delivery
- HOBBES TEST-i All-in-One cable/interface tester
