Cable tester FC-2009A Hobbes HOBBES Fiber Checker Pro ll LWL-Kabel Pr Networks
EAN:
Part number:
Item no:
Highlights & Details
HOBBES Fibre Checker Pro II Black
Technical specifications
- Light color red
- Battery technology: Alkaline
- Product type
Cable tester
- Function
Break
- Max. cable length
7 km
- Optical display
Yes
- Test sockets
LC
- Dim
(W x H x D) 120 x 70 x 250 mm
- Weight
0.306
- Range
Networks
- Width
120 mm
- Height
70 mm
- Depth
250 mm
- Type
HOBBES Fiber Checker Pro ll LWL-Kabel Pr
- Factory colour
Black
- Type A
AMP
- Type B
AMP
- Battery voltage
1.5 V
- UKCA
not relevant
- Number of batteries supported
2
- Wavelength range
640 - 660 nm
- On/off switch
yes
- Built-in display
no
Documents & Downloads
Datasheet
Datasheet 3796767 Cable tester FC-2009A Hobbes HOBBES Fiber Checker Pro ll LWL-Kabel Pr Networks
User & Safety Instructions
User & Safety Instructions 3796767 Cable tester FC-2009A Hobbes HOBBES Fiber Checker Pro ll LWL-Kabel Pr Networks
Description

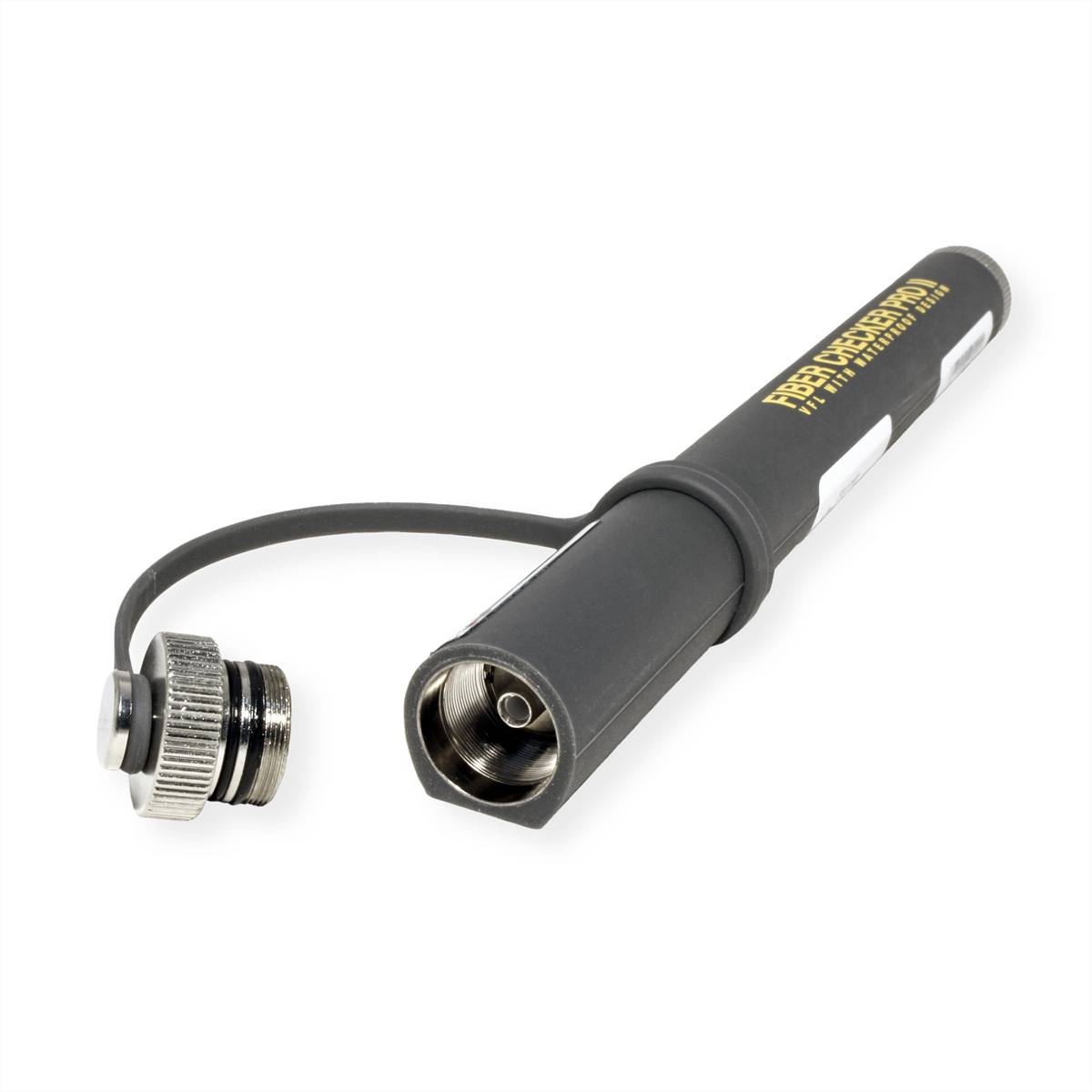

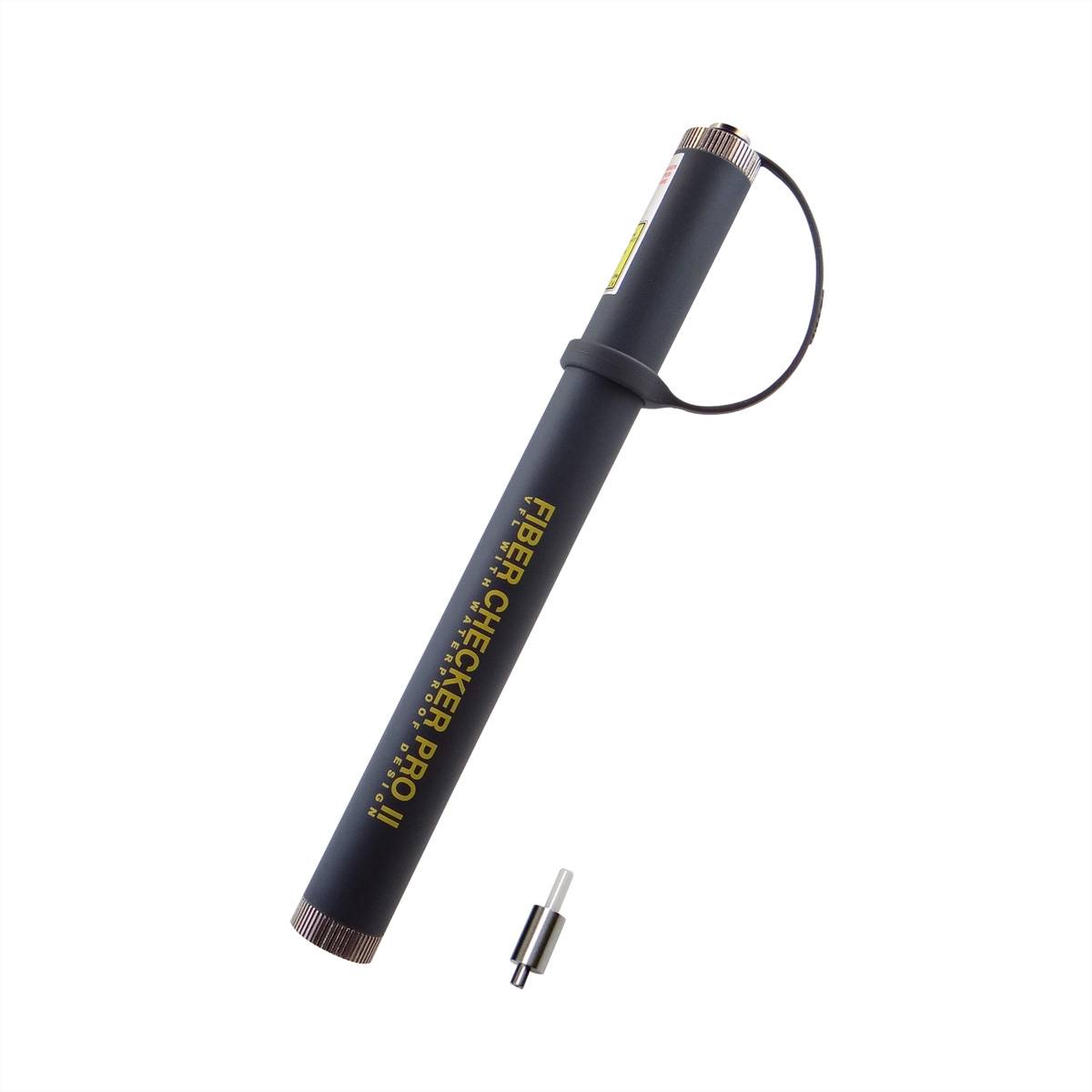

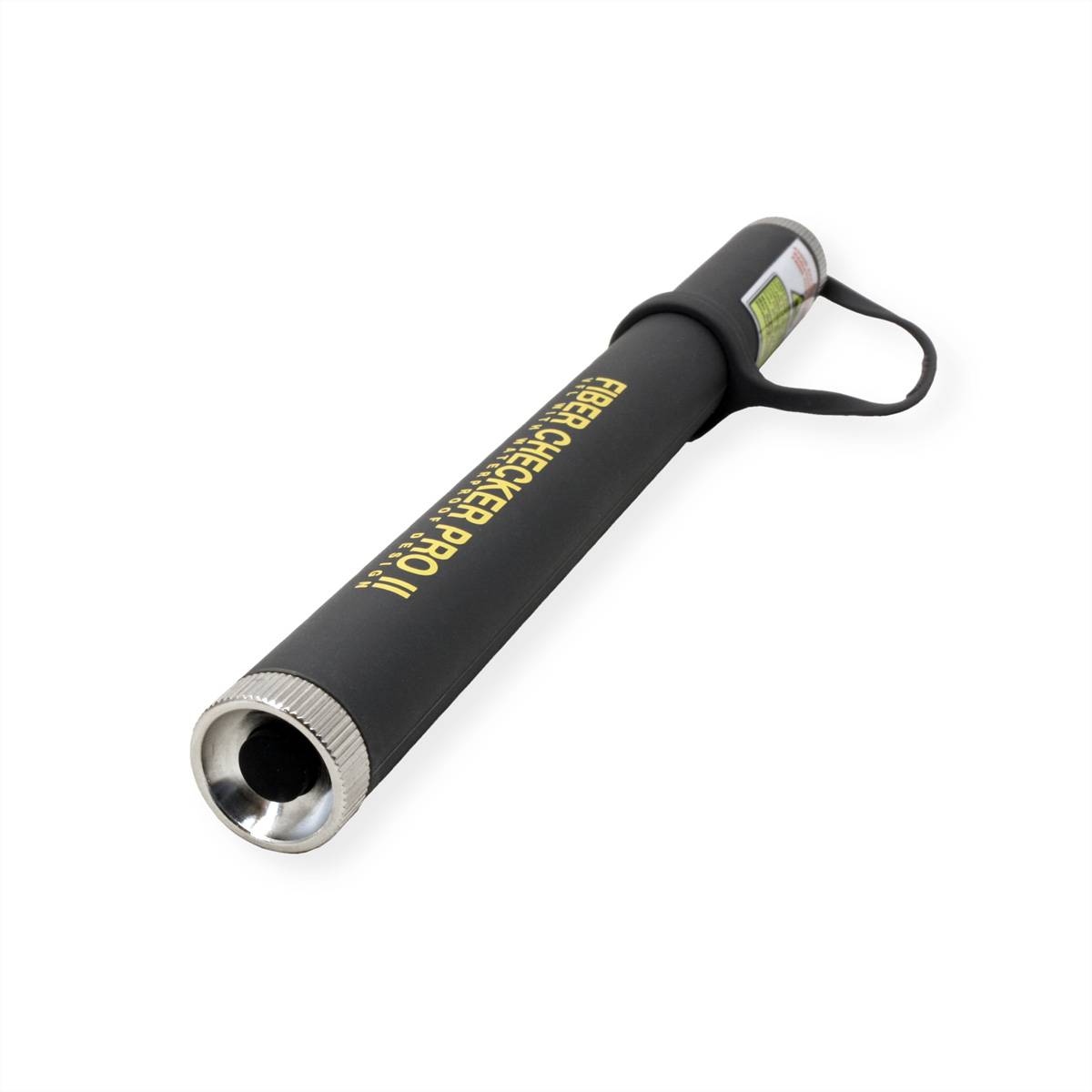

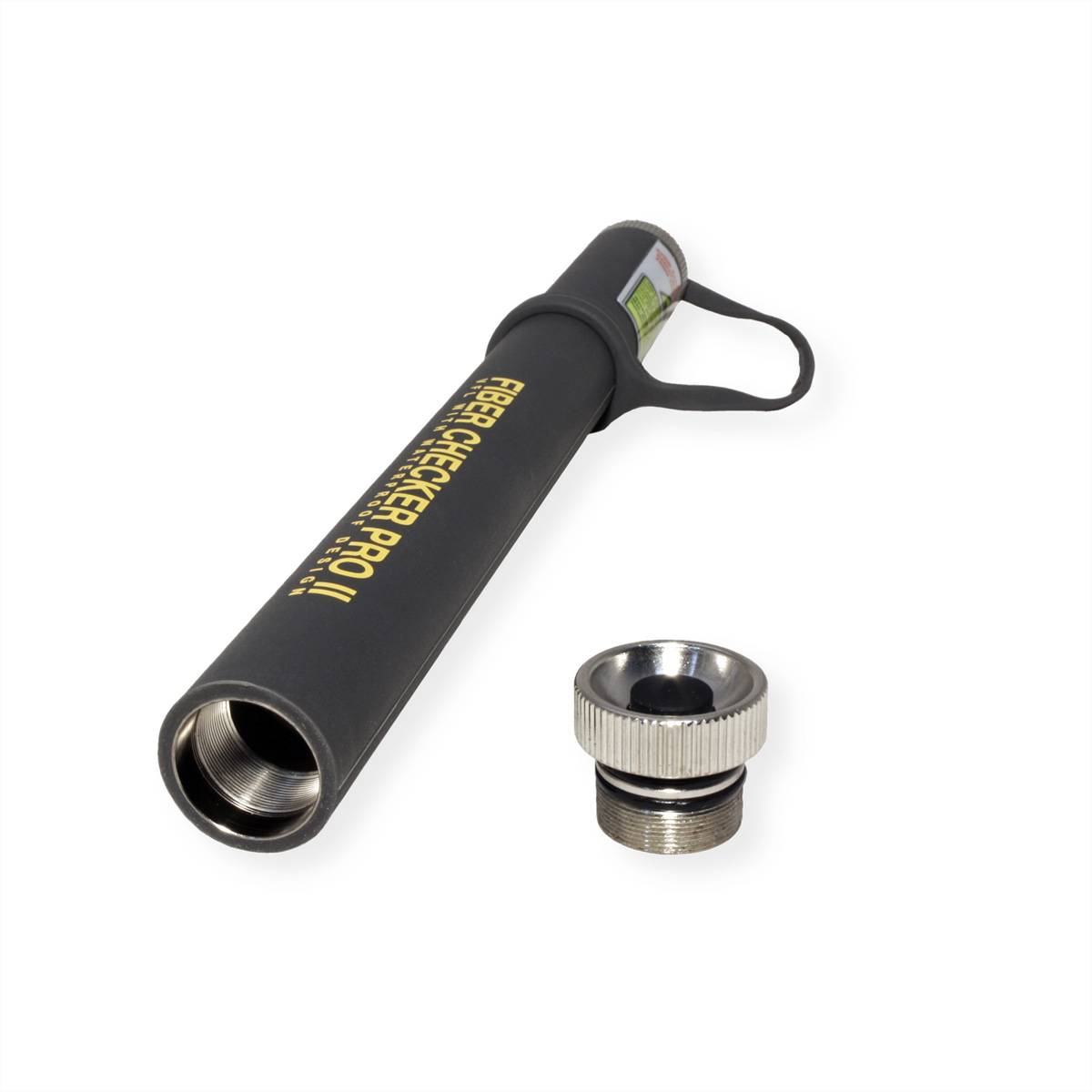

Fiber Checker Pro, VFL with 2.5mm & 1.25mm Interface Visual Fault Locator is used for installation, maintenance, troubleshooting and repair in fiber optic cables. It is used to detect the continuity of the signal transmission and cable breaks in glass fiber lines. The device works both in the single mode, as well as in multi-mode and in fiber optic cables made of plastic. The visible range of the laser beam is around 7 km. Fiber Checker Pro, VFL with 2.5mm & 1.25mm Interface Visual Fault Locator emits a bright red laser beam in a wave range of 650nm through the connected fiber optic cable either as a pulsed beam or as a continuous beam and thus helps to detect faulty spots on the fiber optic cable or on connectors.
The Hobbes Fibre Checker Pro II is used for installation, maintenance, troubleshooting and repair in fiber optic cables. It is used to detect the continuity of the signal transmission and cable breaks in glass fiber lines. The device works both in the single mode, as well as in multi-mode and in fiber optic cables made of plastic. The visible range of the laser beam is around 7 km. The Hobbes Fibre Checker Pro II emits a bright red laser beam within a wave range of 650nm via the connected fiber optic cable either as a pulsed beam or as a continuous beam and thus helps to detect faulty spots on the fiber optic cable or on connectors.
When testing for continuity, it is thus easy to test fiber optic cables in a bundle of fiber optic cables. Alternatively, a fiber path can be tested by bending a patch cord. Defective parts can be detected by the red laser light clearly outlet at the defective point.
This text is machine translated.
The Hobbes Fibre Checker Pro II is used for installation, maintenance, troubleshooting and repair in fiber optic cables. It is used to detect the continuity of the signal transmission and cable breaks in glass fiber lines. The device works both in the single mode, as well as in multi-mode and in fiber optic cables made of plastic. The visible range of the laser beam is around 7 km. The Hobbes Fibre Checker Pro II emits a bright red laser beam within a wave range of 650nm via the connected fiber optic cable either as a pulsed beam or as a continuous beam and thus helps to detect faulty spots on the fiber optic cable or on connectors.
When testing for continuity, it is thus easy to test fiber optic cables in a bundle of fiber optic cables. Alternatively, a fiber path can be tested by bending a patch cord. Defective parts can be detected by the red laser light clearly outlet at the defective point.
This text is machine translated.
Features
- Wave range: 650nm
- Range: Visible up to 7 km.
- Simple detection of fiber optic cable errors by visible red laser beam
- Universal connector for testing different connectors: ST, SC, FC, FDDA
- Tests single mode and multi-mode fiber optic cable (optionally available fiber optic cable adapter FA-002 from 2.50 mm to 1.25mm)
- Highly effective circuits ensure a stable laser output
- Works either with a continuous beam or with a pulsed beam
- Can withstand dust, moisture and immersion up to 1 m of water
Scope of delivery
- HOBBES Fibre Checker Pro ll fiber cable tester 2.5 & 1.25 mm
