Cable tester CIQ-100 Fluke Networks CIQ-100
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 2,264.71 / piece)
€ 2,264.71
plus VAT.
Highlights & Details
The CableIQ Qualification Tester
Technical specifications
- Supported cable types: UTP, STP, FTP, SSTP, RG6, RG59, audio and security
- Qualification AutoTests : 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, Telco, Wiremap only, Coax
- Supported tests: Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection.
- Wiremap: detects single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects swapped pairs.
- Locates and identifies crosstalk or impedance changes in wiring. Compares results with max/min limits. Pinpoints both single and multiple faults within wiring if they affect performance.
- Memory: stores 250 test results
- Power supply: 4x AA alkaline battery (NEDA 15A, IEC LR6)
- Battery life: 20 hours (standard use without background lighting)
- Also supported: 4x AA (Photo lithium, NiMH, NiCad)
- Size and weight: 17. 8 cm x 8. 9 x 4. 5 cm, 0.55 kg
- Product type
Cable tester
- Dim
(L x W x H) 28 x 20 x 10 cm
- Weight
1.1 kg
- Width
20 cm
- Height
10 cm
- Length
28 cm
- Type
CIQ-100
Documents & Downloads
Datasheet
Datasheet 1195740 Cable tester CIQ-100 Fluke Networks CIQ-100
User & Safety Instructions
User & Safety Instructions 1195740 Cable tester CIQ-100 Fluke Networks CIQ-100
Conformity certificate
Conformity certificate 1195740 Cable tester CIQ-100 Fluke Networks CIQ-100
Description
The network tech's vision into cabling bandwidth. The CableIQ qualification tester is the first cabling bandwidth tester for network technicians. This Ethernet network cable tester gives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. This means: network technicians can trouble tickets faster, less time and save money by a more effective use of the existing infrastructure. Up to 30% less escalated problems. The high-performance diagnostic and intuitive user interface enable technicians to identify and troubleshoot a wider range of infrastructure problems. Is the port enabled? Do duplex settings match? It is it a network or a wiring problem? Can the cabling support the required bandwidth? CableIQ network cable tester is the only Ethernet cable tester that can answer all these questions before trouble tickets are passed on to the next level reducing problem escalation by up to 30%.
This text is machine translated.
This text is machine translated.
Features
- Detects whether a link, including patch cords, supports Voice, 10/100BASE-T, VoIP, or Gigabit Ethernet
- Reveals why the existing
- wiring can't support the required bandwidth
- Determines what is at the far end of any cable, and shows device configuration
- Identifies unused switch ports that can be reallocated
- Graphical display of wiring configuration and distance to fault
- Suitable for all types of copper wiring including twisted-pair, coax, and audio cables.
Scope of delivery
- The CableIQ basic device
- Bag

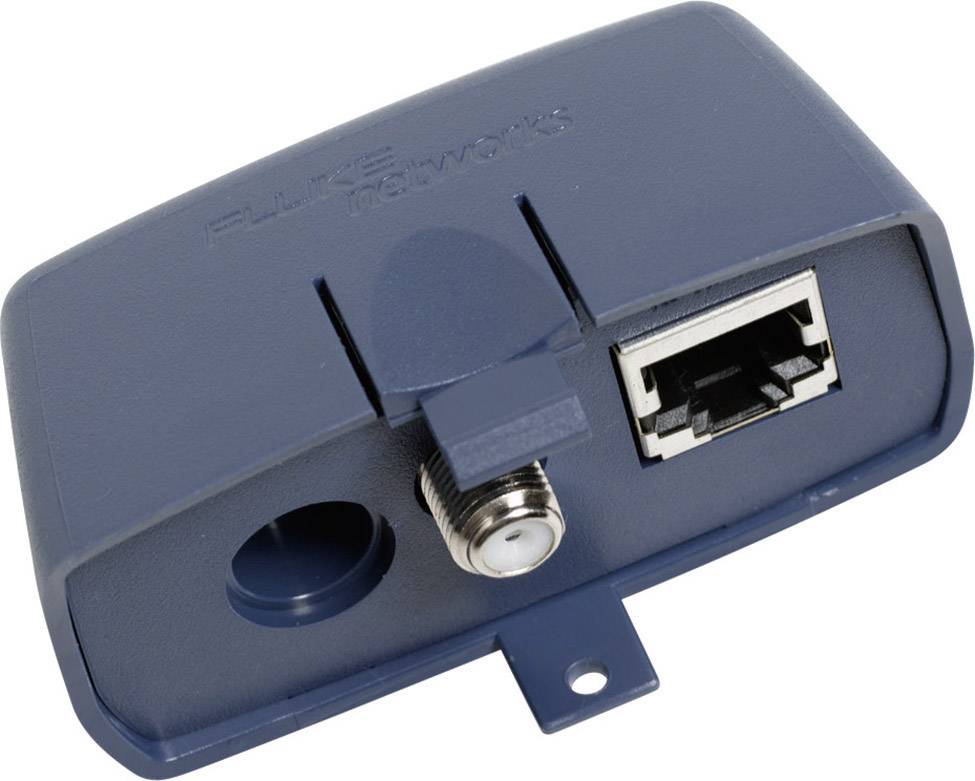

- Remote Adapter
