Cable tester P06237901 Multimetrix CT 51 Networks, Telecom
EAN:
Part number:
Item no:
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
Only 6 Piece(s) available
Highlights & Details
CT 51 cable tester
Technical specifications
- Product type
Cable tester
- Function
Continuity
Break
- Max. cable length
180 m
- Display
LED
- Test sockets
RJ11 socket
RJ45 socket
USB 2.0 port A
USB 2.0 port B
- Dim
(L x W x H) 200 x 100 x 27 mm
Manufacturer's standards (no certificate)
- Weight
280 g
- Range
Networks
Telecom
- Reading category
CAT I
- Width
100 mm
- Height
27 mm
- Length
200 mm
- Type
CT 51
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2346538 Cable tester P06237901 Multimetrix CT 51 Networks, Telecom
Description

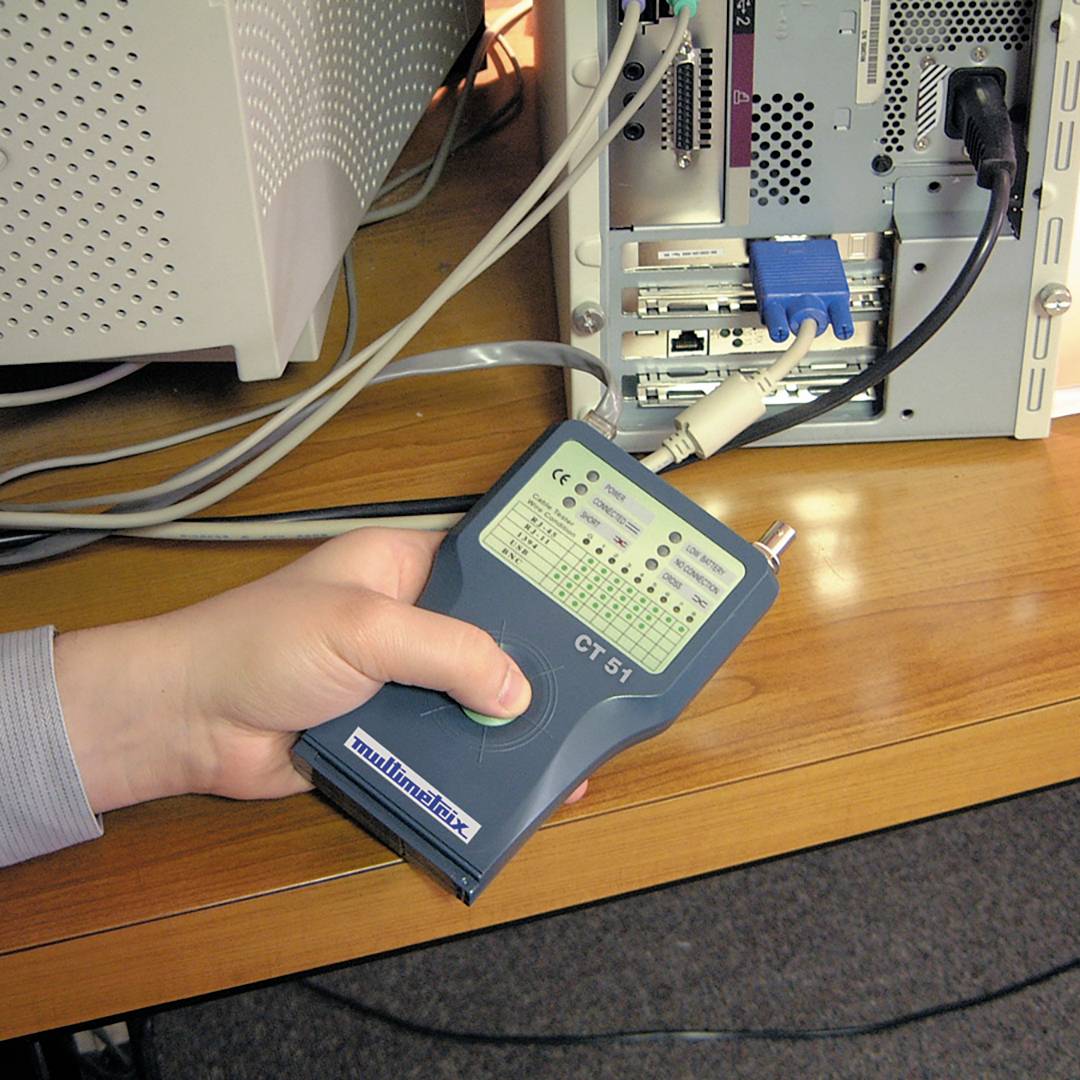

The Multimetrix CT 51 is a simple cable tester for the cable types RJ-45, RJ-11, USB, 1394 and BNC:
- RJ-45 for testing LAN and INTERNET 10BASE-T cables, EIA/TIA-568/568B, AT&T268A, Token Ring and other cabling systems with RJ-45 connectors
- RJ-11 for testing telephone and phonenet cables and others Cabling systems with RJ-11 plug contacts
- IEEE 1394 for testing cables with IEEE 1394 Connectors
- USB B for testing USB connection cables and other cabling systems With USB plugs
- BNC for testing terminal connection cables ETHERNET 10BASE-2/10BASE-5
Operation is done via only one button. With the removable transmitter module, the measurement can be done by only one person.
Measurements can be made on cables up to 180 m long.
The cable tester also offers continuity testing, open circuit testing and short circuits.
This text is machine translated.
- RJ-45 for testing LAN and INTERNET 10BASE-T cables, EIA/TIA-568/568B, AT&T268A, Token Ring and other cabling systems with RJ-45 connectors
- RJ-11 for testing telephone and phonenet cables and others Cabling systems with RJ-11 plug contacts
- IEEE 1394 for testing cables with IEEE 1394 Connectors
- USB B for testing USB connection cables and other cabling systems With USB plugs
- BNC for testing terminal connection cables ETHERNET 10BASE-2/10BASE-5
Operation is done via only one button. With the removable transmitter module, the measurement can be done by only one person.
Measurements can be made on cables up to 180 m long.
The cable tester also offers continuity testing, open circuit testing and short circuits.
This text is machine translated.
Scope of delivery
- 1 set of cable adapters (RJ11, R45 and BNC connectors with load resistance
- 1 bag
- 1 x 9 V battery
- 1 operating instructions
