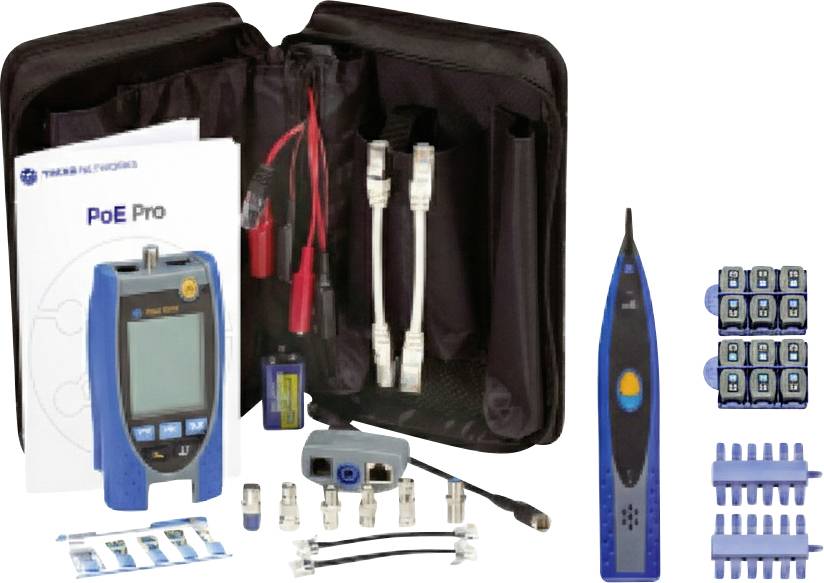

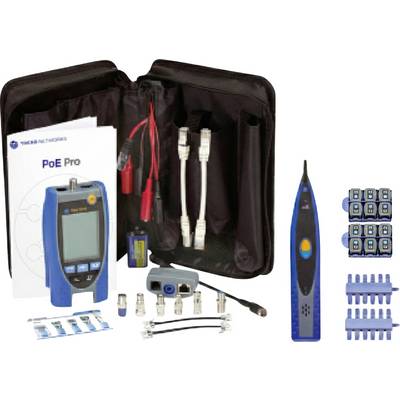

Cable tester POEPRO-MAPKIT Trend Networks Verdrahtungstester-Kit

The PoE Pro Test Package includes the PoE Pro BT wiring tester with Bluetooth reporting function using Anyware Cloud APP. Including port identifier no. 1-24, RJ45 remote adapter no. 1-12 and inductive receiver. The PoE Pro determines the existing class of the PoE source and voltage, regardless of length, cable quality or other factors and provides a PASS/FAIL information according to IEEE 802.3af/at/bt standards. It shows the maximum power at the location of the terminal including max. Watt, PSE Class 0-8, Voltage (V), PSE Type AF/at/bt, supports 802.bt High Power PoE up to 90 watts and includes a comprehensive set of cable test functions such as wiring test, TDR, length determination, port identification/hub link and built-in tone generator. Follow with the inductive receiver (R180001) and the sound generated by the PoE Pro, along the cable or via a patch field to locate the remote end. The RJ45 port identifiers from 1 to 24 support the unique designation of the ports and the RJ45 remote adapters from 1 to 12 enable an efficient use when testing in one-man mode. All items of the PoE Pro test package can be ordered separately.

This text is machine translated.
