Cable tester VC-9199620 VOLTCRAFT KT-600 Networks
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 231.09
-45 %
€ 126.04
plus VAT.
Highlights & Details

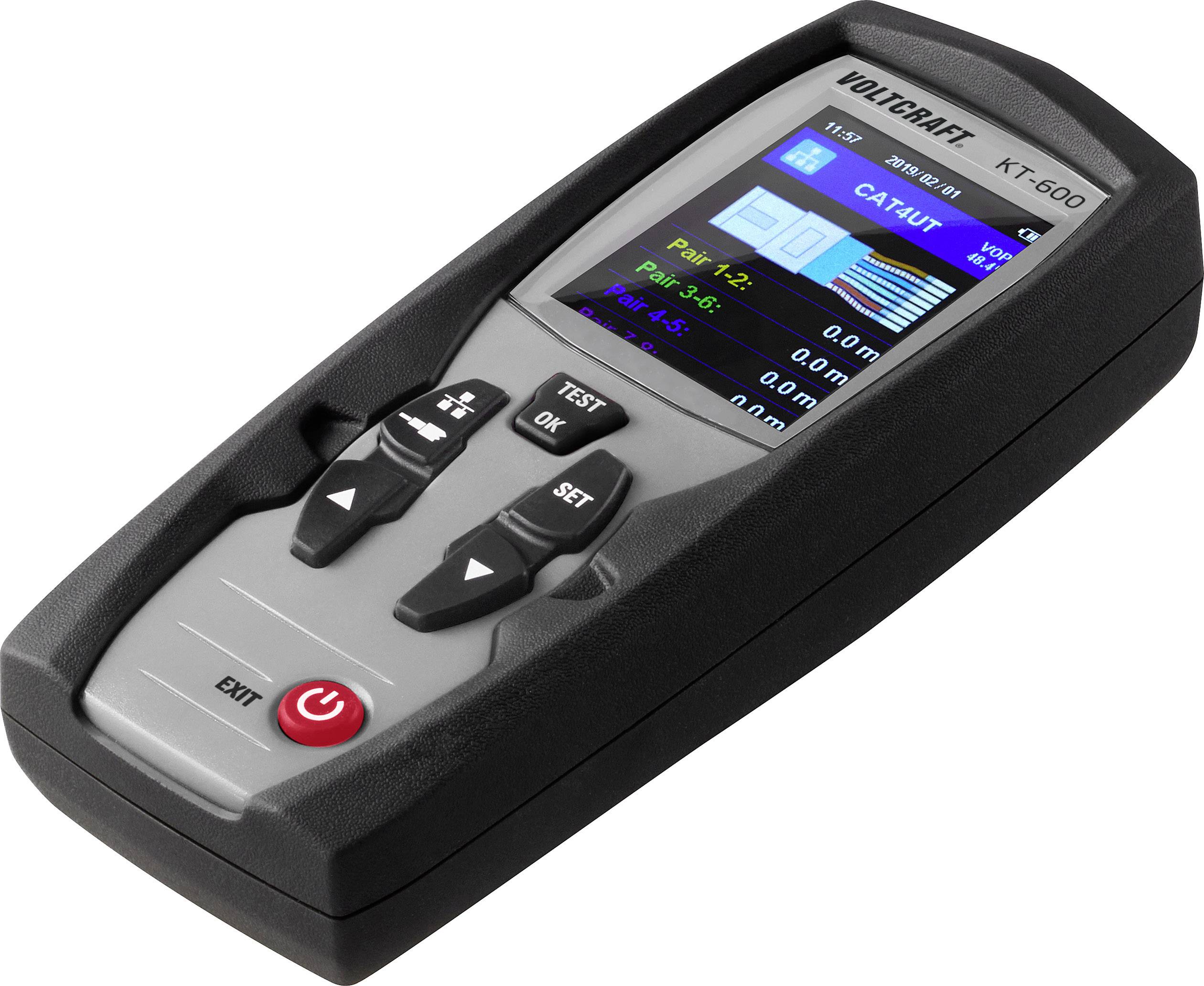

The TDR-cable tester KT-600
- 99 internal storage locations
- High accuracy and fast reflection
- Built-in 20 groups of standard cables V.O.P. Value
Technical specifications
- Product type
Cable tester
- Function
Break
- Max. cable length
3000 m
- Acoustic signal
No
- Display
Digital
LCD

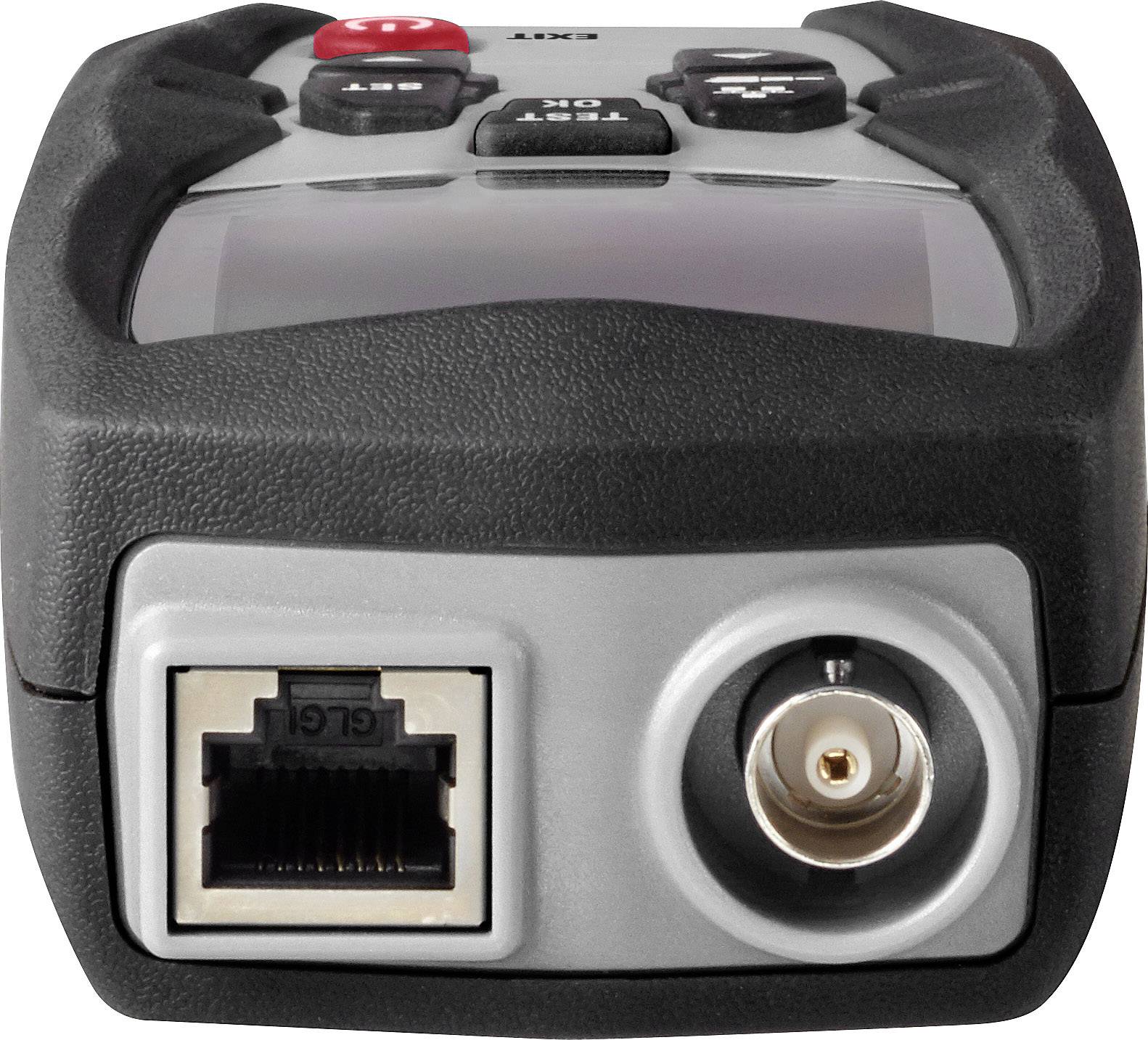

- Test sockets
BNC plug
- Dim
(L x W x H) 152 x 61 x 34 mm
Manufacturer's standards (no certificate)
- Weight
230 g
- Range
Networks
- Width
61 mm
- Height
34 mm
- Length
152 mm
- Type
KT-600
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1839924 Cable tester VC-9199620 VOLTCRAFT KT-600 Networks
Warranty Terms
Warranty Terms 1839924 Cable tester VC-9199620 VOLTCRAFT KT-600 Networks
Description

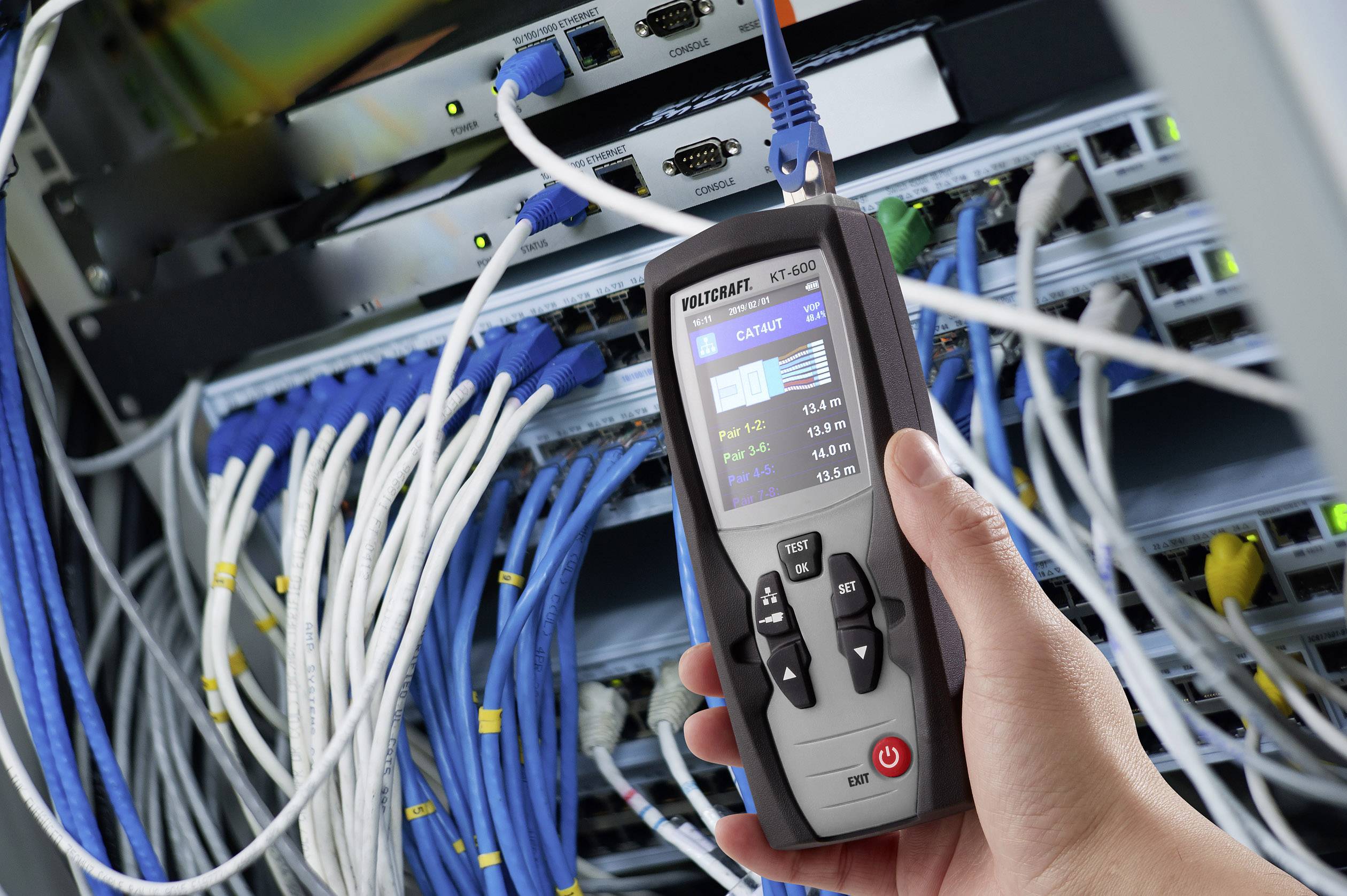

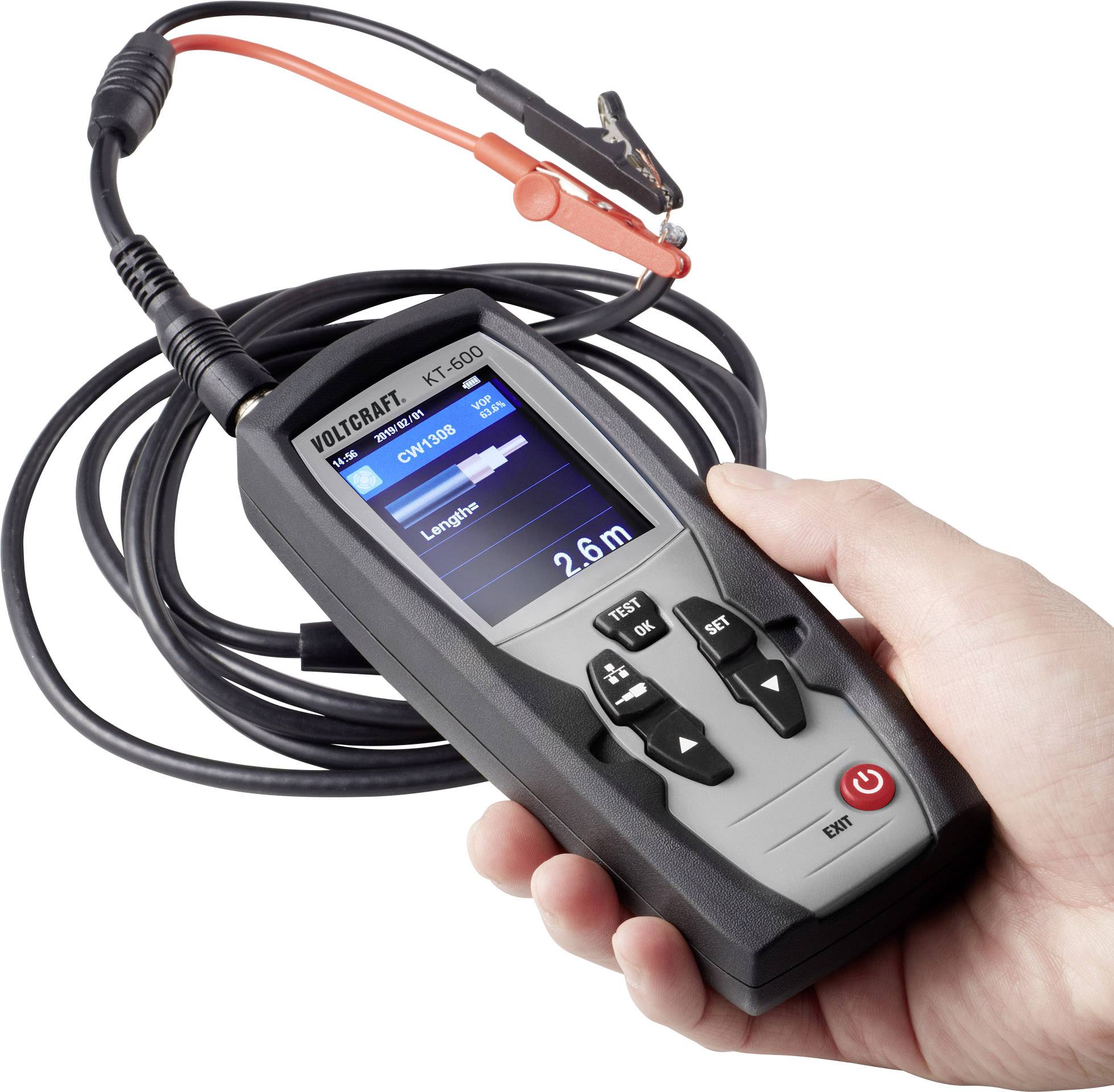

The KT-600 is a precise cable length measuring device with TDR (Time Domain Reflectometer) for the measurement of the technology cable length. The measuring device can be used for each cable, from at least two insulated metal elements, one of which the cover or shielding of the cable can be. By means of the function selection buttons, the KT-600 can be adjusted exactly to the cable to be tested. The adaptation of the propagation speed (V. O.P.) enables highly precise distance measurement.
This text is machine translated.
This text is machine translated.
Features
- Simple operation
- 2.4 inch TFT color screen
- User friendly Menu
- The automatic sensitivity adjustment enables a closer to a large number of cables to be tested.

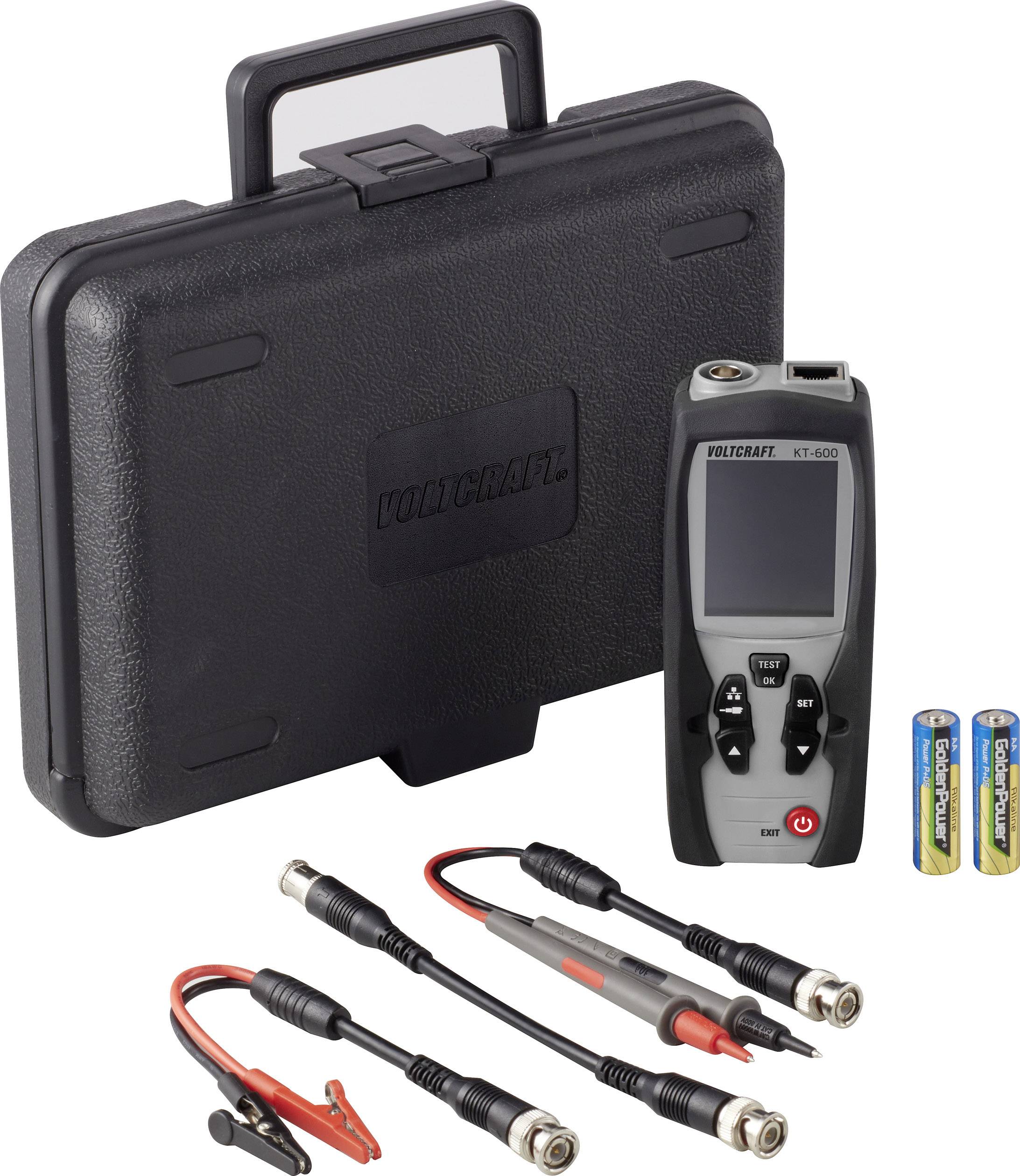

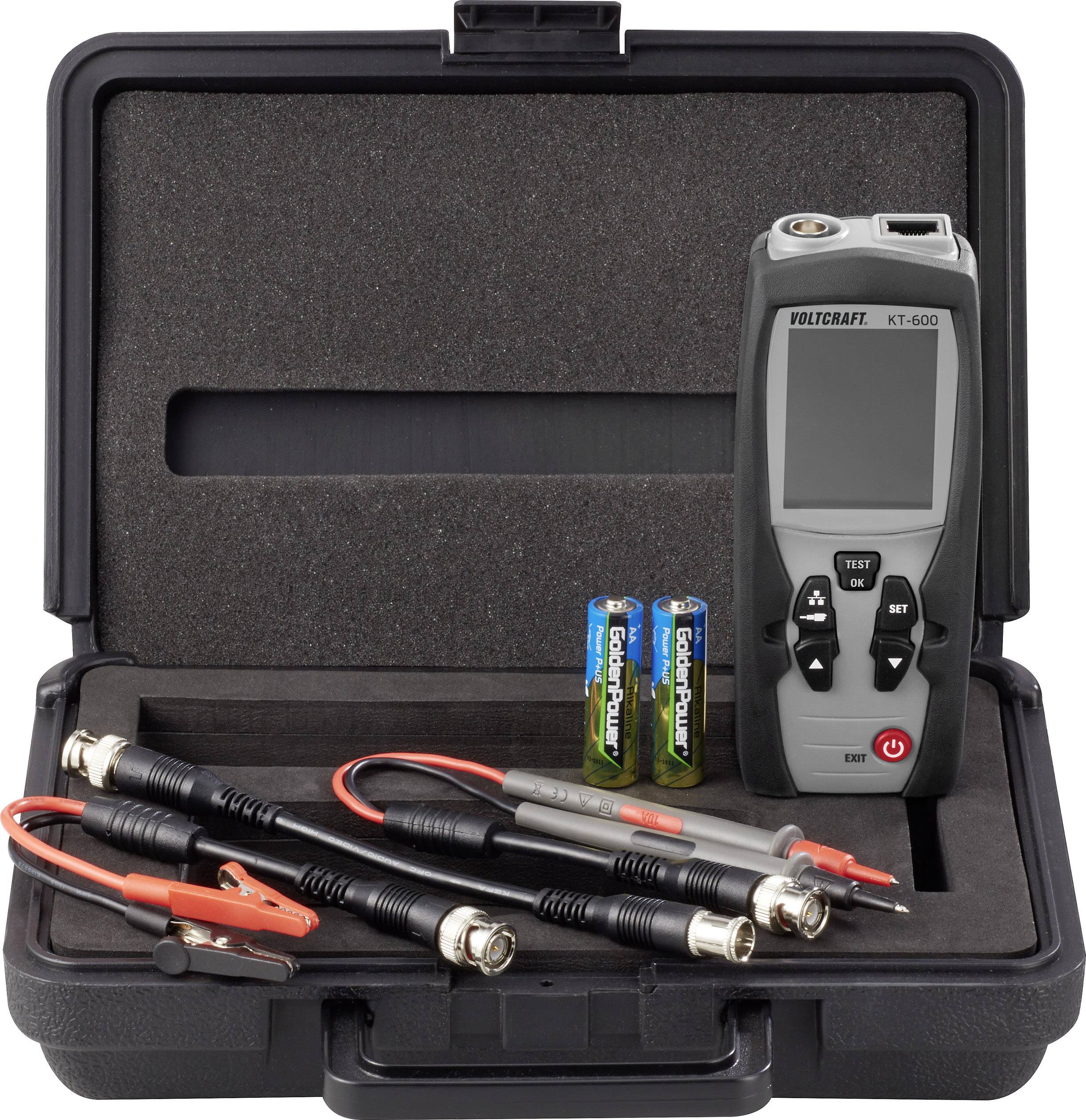

Scope of delivery
- Cable tester

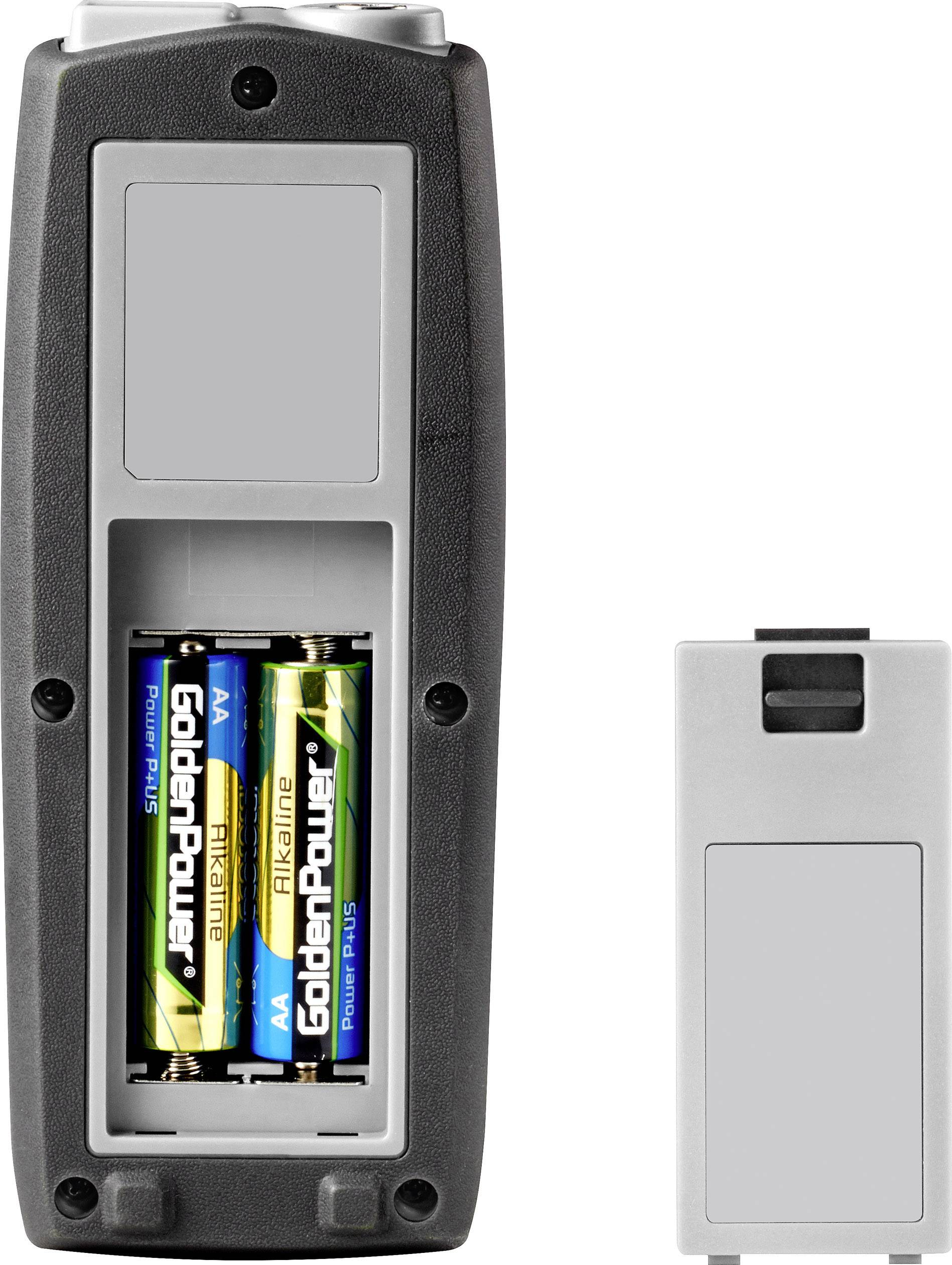

- 2 x 1.5V LR6 batteries
- 1 x BNC cable with test leads
- 1 x BNC cable with alligator clips
- 1 x BNC cable
- User manual
- 1x Carrying Case
