Calpeda 72U70050014 GXRM 9 GF Effluent sump pump Single-stage 170 l/min 9 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

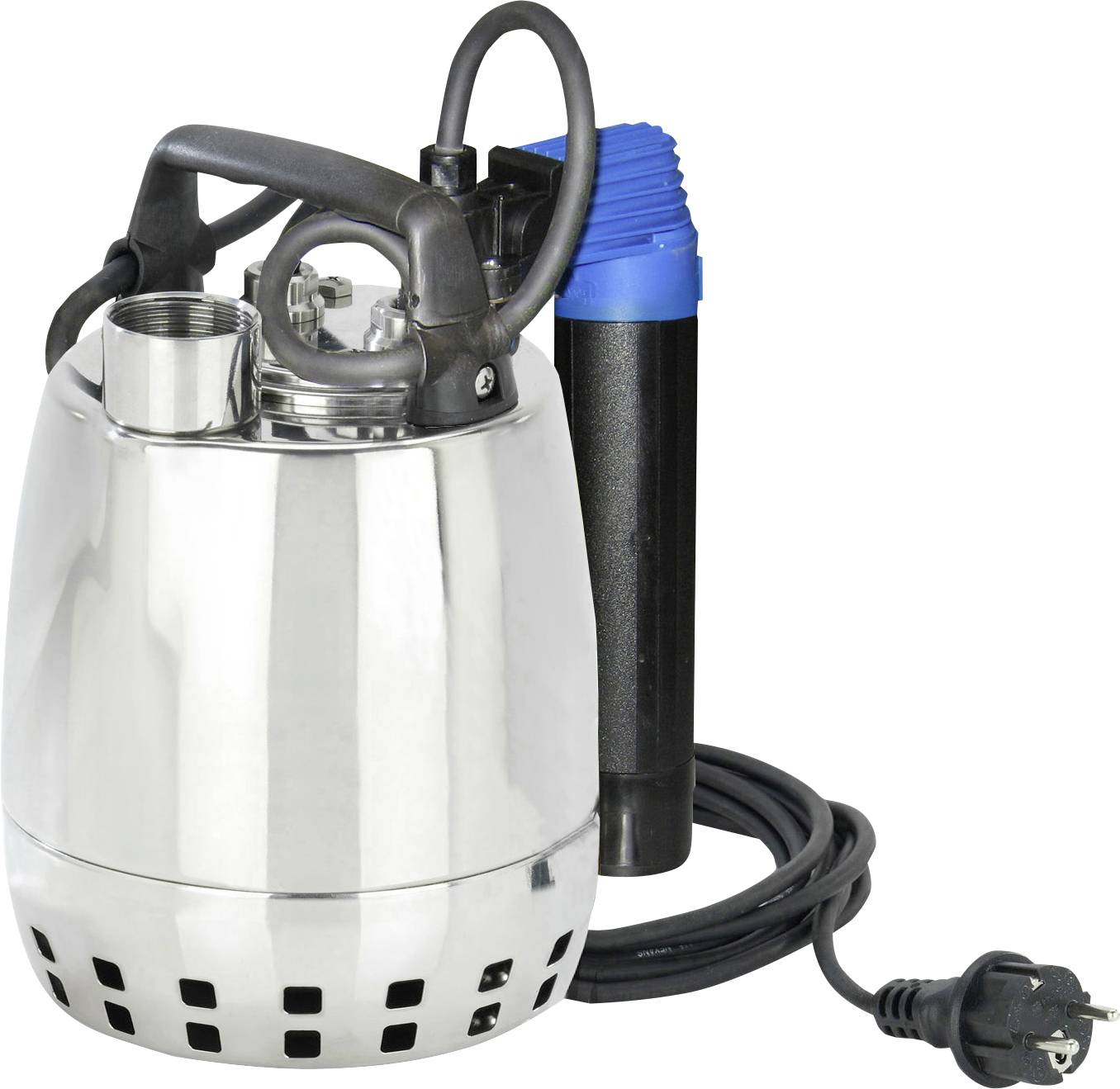

Calpeda submersible pump GXRM 9 GF - with magnetic switch
- For pure water, even with solid components up to 10 mm grain size; for the drainage of cellars or flooded spaces; for the collection of water from ponds, streams or rain water collection basins; for irrigation; permanent operation
Technical specifications
- Product type
Effluent sump pump
- Features
Single-stage
- Max. delivery head
9 m
- Max. feed rate
170 l/min
- Max. discharge pressure
0.9 bar
- Operating voltage
230 V
- Power consumption (P1)
0.5 W
- Pressure connection
39.0 mm (1 1/4") IT
- Connection
G 1 ¼" (ISO 228)
vertical up
- Type
Single-stage submersible pump made of chrome-nickel-steel with an open impeller
- Max. size of solids
10 mm
- Immersion depth
5 m
- Max. cable length
5 m
- Operating time (OT)
Non-stop
- Float switch
Yes
- Overload protection
Yes
- Height
265 mm
- (Ø)
176 mm
- Dim
(Ø x H) 176 mm x 265 mm
- Weight
5 kg
IP68
Documents & Downloads
Datasheet
Datasheet 3733460 Calpeda 72U70050014 GXRM 9 GF Effluent sump pump Single-stage 170 l/min 9 m
User & Safety Instructions
User & Safety Instructions 3733460 Calpeda 72U70050014 GXRM 9 GF Effluent sump pump Single-stage 170 l/min 9 m
Description
Fully flooded single-stage submersible pumps made of chrome nickel steel, with vertical pressure nozzles
With vertical magnetic switch for automatic operation.
GXR: With open wheel.
GXV: With free-current wheel (Vortex impeller).
Engine cooling by flowing water between the motor and pump sheath.
Double shaft sealing with intermediate oil chamber.
Minimum dimensions and large delivery rate, for the application in different applications.
This text is machine translated.
With vertical magnetic switch for automatic operation.
GXR: With open wheel.
GXV: With free-current wheel (Vortex impeller).
Engine cooling by flowing water between the motor and pump sheath.
Double shaft sealing with intermediate oil chamber.
Minimum dimensions and large delivery rate, for the application in different applications.
This text is machine translated.
Features
- 2-pin induction motor, 50 Hz (N = 2900 1/min).
- GXR, GXV: Three-phase (three-phase) 230 V ± 10%;
- Three-phase (three-phase) 400 V ± 10%.
- GXRM, GXVM: Single-phase (AC) 230 V ± 10%
- With float switch and thermo switch.
- Capacitor installed.
- Insulation class for
- Protection class IP X8 (for continuous immersion).
- Dry runner with double impregnated winding, moisture resistant.
- According to EN 60 335-2-41.
Hints
Max. flow 170 l/min
Max. Delivery height (H max.): 9m
Rated engine power (P2): 0.25kW
Voltage 230 V/50 Hz
Nominal current: 2.5A
Pressure connection 1 1/4" G
Cable: 10m with connector
