Calpeda 76U01000000 GXM Zero Wet intake submersible pump Single-stage, Food contact material 100 l/min 9.8 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

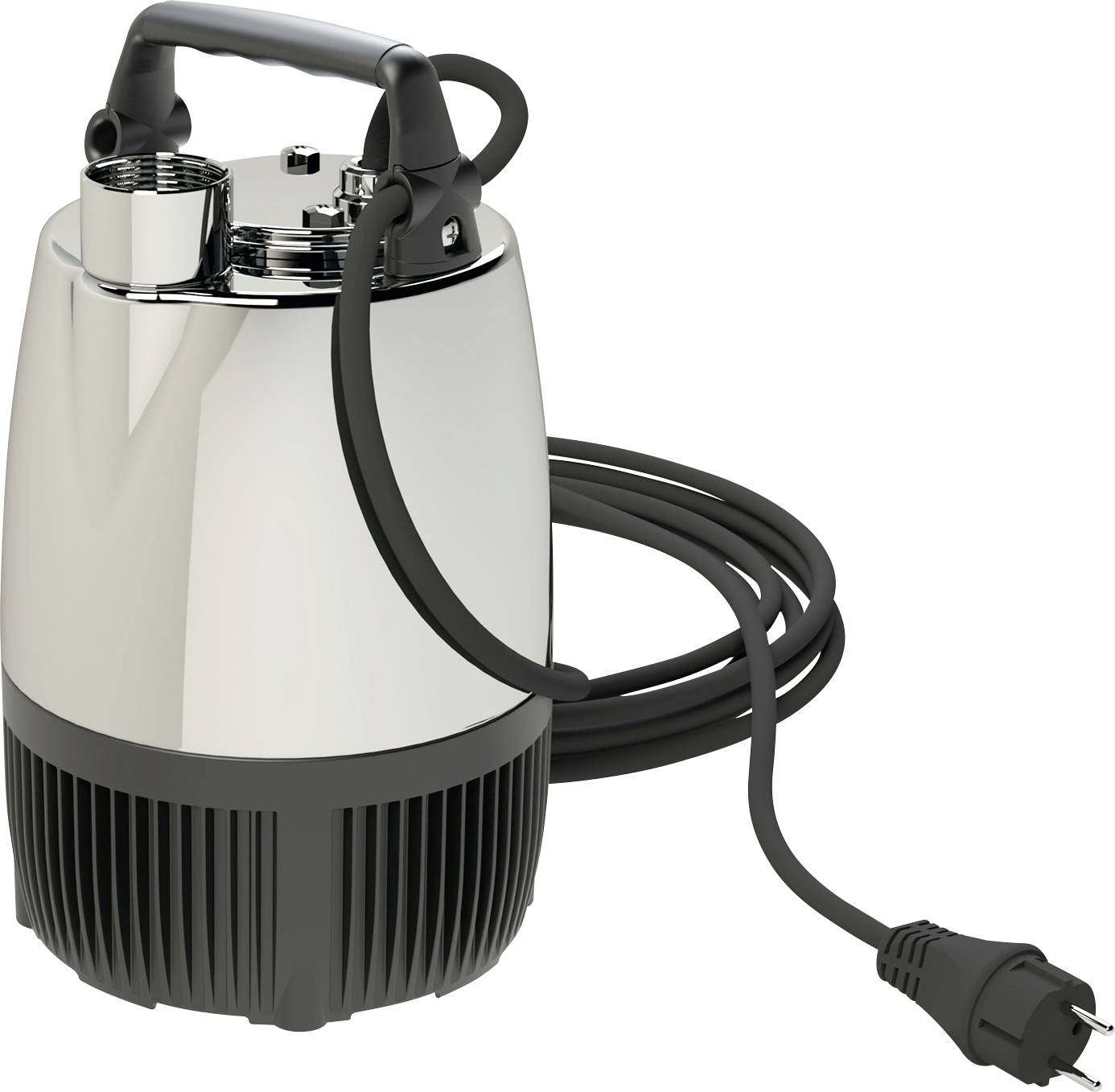

Calpeda submersible pump GXM ZERO - chrome-nickel steel and plastic, flat-sucking
- For pure water, even with solid components up to 3 mm grain size; for the drainage of cellars or flooded spaces; for the collection of water from ponds, streams or rain water collecting basins; for drainage
Technical specifications
- Product type
Wet intake submersible pump
- Features
Single-stage
Food contact material
- Max. delivery head
9.8 m
- Max. feed rate
100 l/min
- Max. discharge pressure
0.98 bar
- Operating voltage
230 V
- Power (P2)
0.25 W
- Pressure connection
41.91 mm (1 1/4") OT
- Connection
G 1 1/4 (ISO 228)
- Type
Single-stage submersible pump with vertical pressure collar and built-in non-return valve
- Max. size of solids
3 mm
- Immersion depth
5 m
- Max. cable length
10 m
- Operating time (OT)
Non-stop
- Overload protection
Yes
- Height
297 mm
- (Ø)
176 mm
- Dim
(Ø x H) 176 mm x 297 mm
- Weight
5 kg
IPX8
Documents & Downloads
Datasheet
Datasheet 3733459 Calpeda 76U01000000 GXM Zero Wet intake submersible pump Single-stage, Food contact material 100 l/min 9.8 m
User & Safety Instructions
User & Safety Instructions 3733459 Calpeda 76U01000000 GXM Zero Wet intake submersible pump Single-stage, Food contact material 100 l/min 9.8 m
Description
Fully flooded single-stage submersible pumps made of chrome-nickel steel, with vertical pressure nozzles and built-in check valve on the suction side.
Engine cooling by flowing water between the motor and pump sheath.
Flat suction up to 1 mm water level possible.
This text is machine translated.
Engine cooling by flowing water between the motor and pump sheath.
Flat suction up to 1 mm water level possible.
This text is machine translated.
Features
- 2-pin induction motor, 50 Hz (N = 2900 1/min).
- GX ZERO: Three-phase (three-phase) 230 V ± 10%;
- Three-phase (three-phase) 400 V ± 10%.
- GXM ZERO: Single-phase (alternating current) 230 V ± 10%
- With thermo switch.
- Capacitor installed.
- H05RN-F cable, 3G0,75 mm2, length 10 m, with plug (CEI - UNEL 47166).
- Insulation class for
- Protection class IP X8 (for continuous immersion).
- Dry runner with double impregnated winding, moisture resistant.
- According to EN 60 335-2-41.
Hints
Max. flow 100 l/min
Max. Delivery height (H max.): 9.8m
Rated engine power (P2): 0.25kW
Voltage 230 V/50 Hz
Nominal current: 2.5A
Pressure connection 1 1/4" G
Cable: 10m with connector
