Calpeda 76U10000000 GM 5-9 Effluent sump pump PG connector 217 l/min 8.9 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

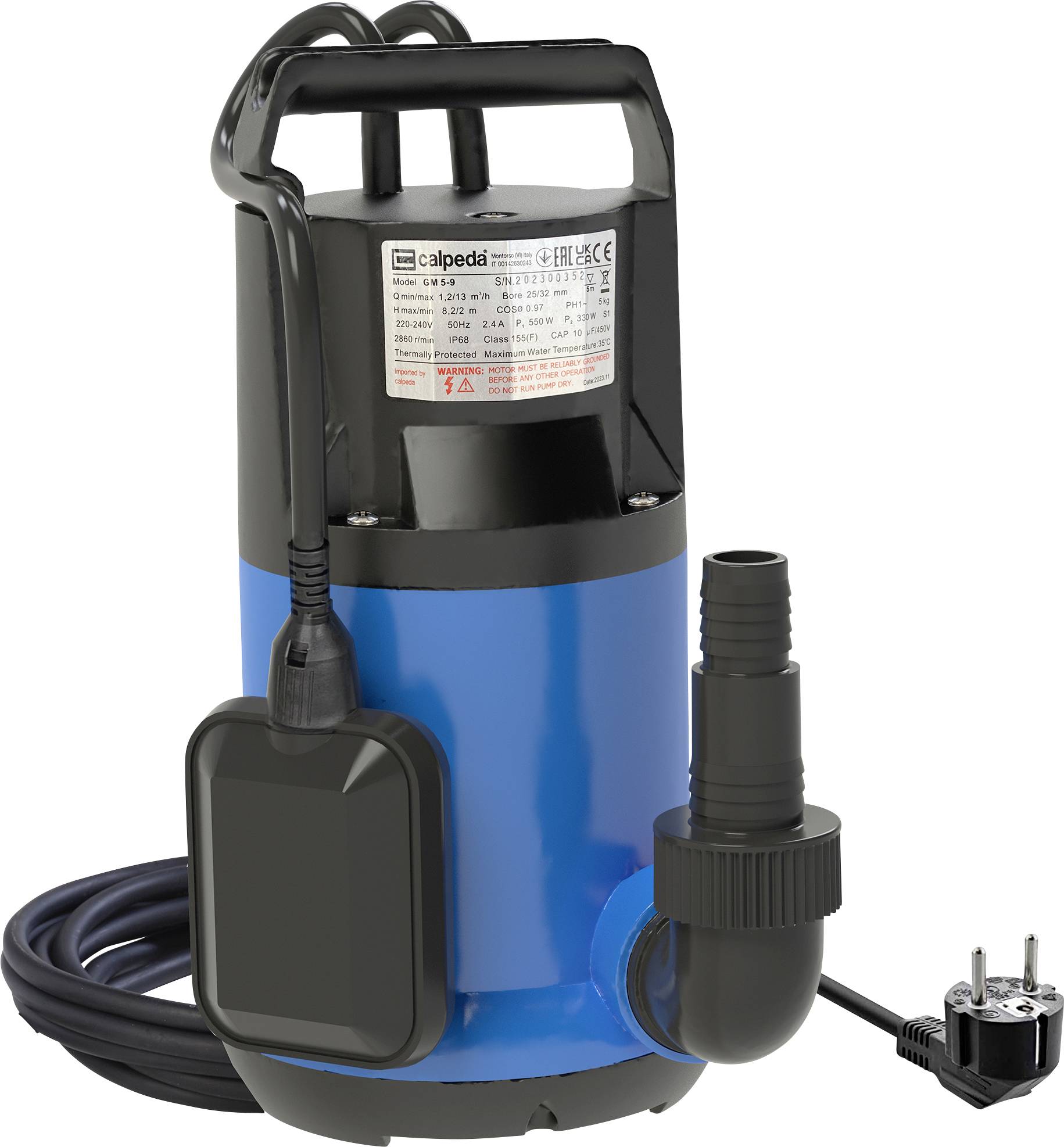

Calpeda submersible pump GM 5-9 - plastic with float switch
- For clean water with solids up to a diameter of 5 mm; for emptying flooded spaces or tanks; water drawn from ponds, streams and rain water collection pools; for irrigation and irrigation; permanent operation
Technical specifications
- Product type
Effluent sump pump
- Features
PG connector
- Max. delivery head
8.9 m
- Max. feed rate
217 l/min
- Max. discharge pressure
0.89 bar
- Operating voltage
230 V
- Power consumption (P1)
0.55 W
- Pressure connection
47.81 mm (1 1/2") OT
- Connection
G 1 1/2 (DN 2)
- Type
Electric submersible pump made of composite polymers with double shaft seal and oil chamber.
- Max. size of solids
5 mm
- Immersion depth
5 m
- Max. cable length
10 m
- Float switch
Yes
- Overload protection
Yes
- Width
157 mm
- Height
316 mm
- (Ø)
222 mm
- Dim
(Ø x H) 222 mm x 316 mm
- Weight
4.7 kg
IP68
Documents & Downloads
Datasheet
Datasheet 3733461 Calpeda 76U10000000 GM 5-9 Effluent sump pump PG connector 217 l/min 8.9 m
User & Safety Instructions
User & Safety Instructions 3733461 Calpeda 76U10000000 GM 5-9 Effluent sump pump PG connector 217 l/min 8.9 m
Description
Electric submersible pump for drainage of the waste water from specially developed composite polymers.
Double shaft sealing with intermediate oil chamber.
Small dimensions and high power for use in different applications, for flow rates up to 217 liters per minute.
With float switch for automatic start and stop
This text is machine translated.
Double shaft sealing with intermediate oil chamber.
Small dimensions and high power for use in different applications, for flow rates up to 217 liters per minute.
With float switch for automatic start and stop
This text is machine translated.
Features
- 2-pin induction motor, 50 Hz (N = 2800 1/min).
- Single phase 230 V ± 10% with thermal protection switch
- Built-in capacitor.
- Mains cable H05RN-F, 3G0,75 mm2: With plug, 10 m long, 245IEC57
- Design according to EN 60335-2-41 (Art. 25.6) for pumps up to 10 kg.
- Insulation class for
- Protection class IP 68 (for continuous immersion)
Hints
Max. flow 217 l/min
Max. Delivery height (H max.): 8.9 m
Rated engine power (P2): 0.33kW
Voltage 230 V/50 Hz
Nominal current 2.4A
Pressure connection 1 1/2" G
Cable: 10m with connector
