Buy Camdenboss Easy Assembly CBEAC-04-WH Casing 150 x 90 x 50 Acrylonitrile butadiene styrene White 50 pc(s)

A rectangular white plastic box with a removable lid and a small screw, suitable for storing items.

White rectangular plastic box with a removable lid and screw beside it, suitable for electrical installations.

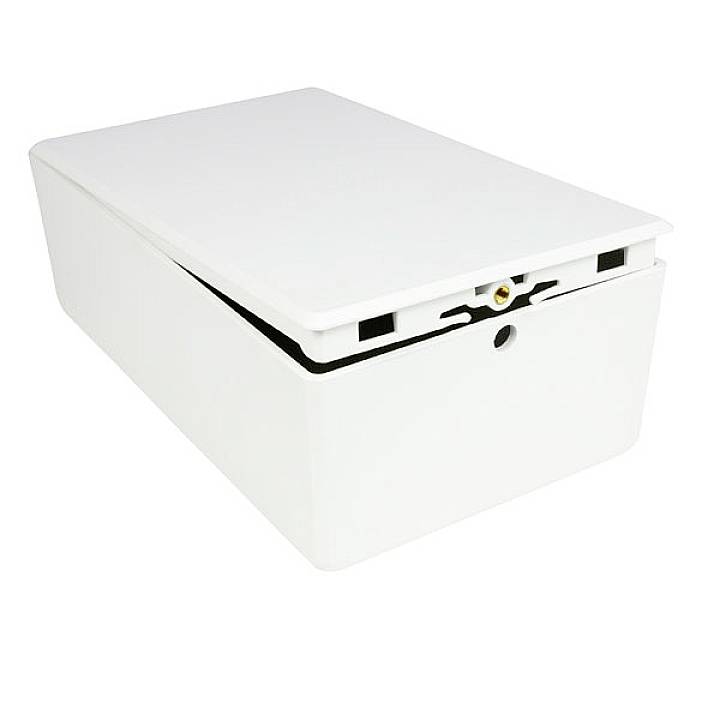

White box with a curved lid. The box has a black line separating the lid from the rest, and a small padlock slot on the front.

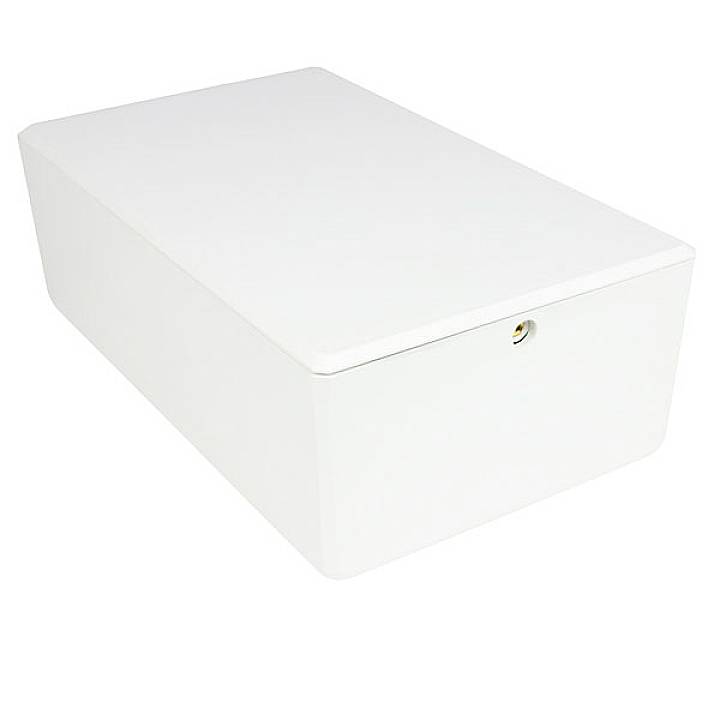

A rectangular, white box with a smooth surface and a small round lock in the centre of the front side.

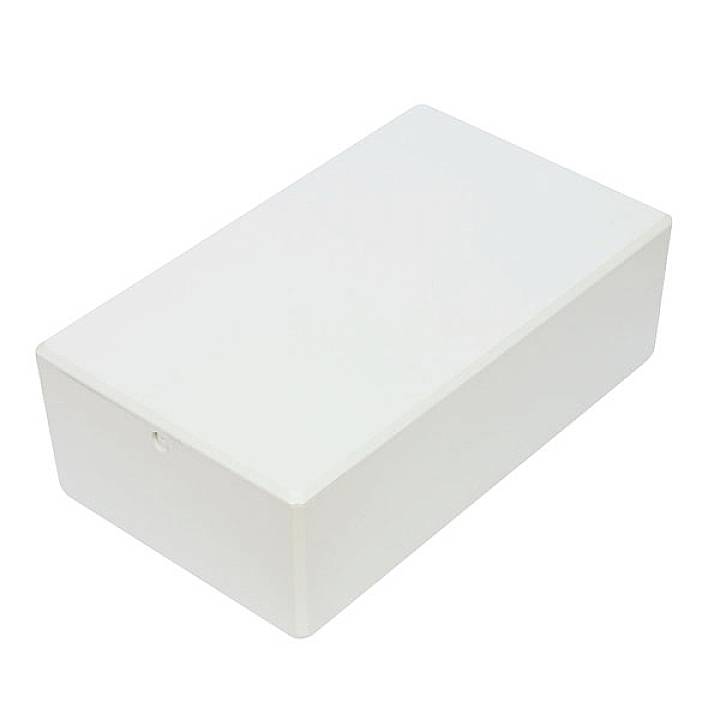

White rectangular box with a smooth surface, no visible markings or features.

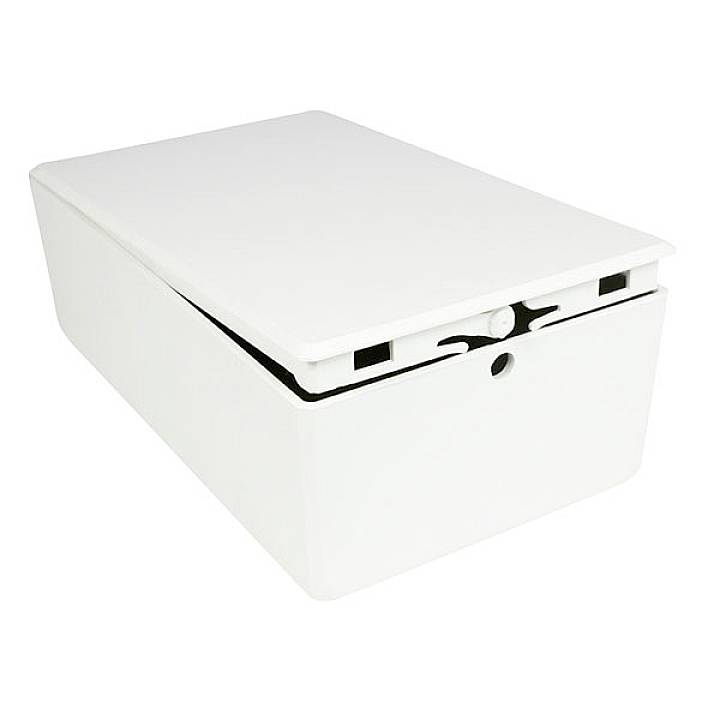

White rectangular box with a removable lid, suitable for storing cables or office supplies.<br><br>Note: This translation was already quite close to British English, so minimal changes were required.

1/6

Product type

Casing

Material

Acrylonitrile butadiene styrene

IP rating

IP40

Width

90 mm

Height

50 mm

Fast track dispatch on Fri, 11 Sep

2 Set(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.44 / piece)

€ 121.84

plus VAT.

Only 2 Set(s) available

Report legal concerns

Highlights & Details

CamdenBoss Ltd CBEAC-04-WH Easy Assembly Enclosure Size 4 150x90x50mm White

High quality universal housing with cost saving mounting features
Made of ABS
No cornerstones maximize PCB area and edge-to-edge capability
Several PCB mounting points in lid and base
Unique spring element in the lid holds your PCB securely in position
The 'Easy Assembly' strip holds the PCB in place without the need for screws
Protection class IP40
Operating temperature -10 °C to + +80°C
UL94-V0 approval

Our service for you

Technical specifications

Product type: Casing

Material: Acrylonitrile butadiene styrene

: IP40

Factory colour: White

Length: 150 mm

Width: 90 mm

Height: 50 mm

Content: 50 pc(s)

Dim: (L x W x H) 150 x 90 x 50 mm

RoHS-compliant: Yes

Weight: 128 g

Type: Easy Assembly

Description

This universal casing was developed to offer flexibility and increased functionality. A unique, two-sided lid and mounting points for your circuit board shorten the assembly time and offer the end user a high quality, modern product. Shaped of ABS UL94-V0 material, in different sizes and colors, with optional DIN rails / wall brackets available. If you are looking for a housing that can hold your electronic accessories and looks good at the same time, don't look further!

Cover used on both sides
The cover that can be used on both sides can be fixed either by a push button or with a single screw.

Spring function in lid
If the PCB is held firmly in place without the need for screws, WAS significantly shortens the assembly time.

No corner supports
Maximized PCB dimensions that lead from edge to edge.

PCB corner bracket in base
Sizes 3 & 4 have four additional half-board brackets that can be removed to create space for solder points on the bottom of the circuit board.

PCB holder for easy installation
Together with the spring function in the lid the strip holds the PCB in place without screws for a quick and easy mounting.

Several PCB mounting points in base and lid
Mounting domes in central position support the place capacitance of the conducting board.

Flat surfaces
All sides of the case have a smooth surface which is suitable for easy editing.

Raspberry Pi compatible
Sizes 3 & 4 fit Raspberry Pi 3 and 4, and size 1 match those of Raspberry Pi Zero.
