Cameo CONTROL 54 DMX controller 54-channel
EAN:
Part number:
Item no:
Highlights & Details

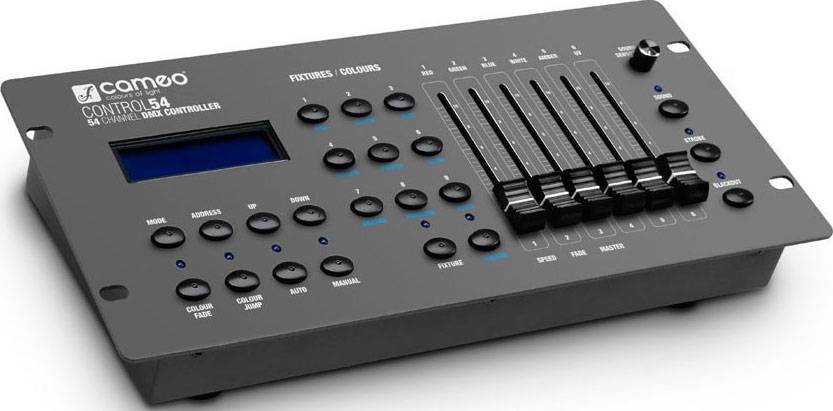

cameo CONTROL 54 54-channel DMX controller

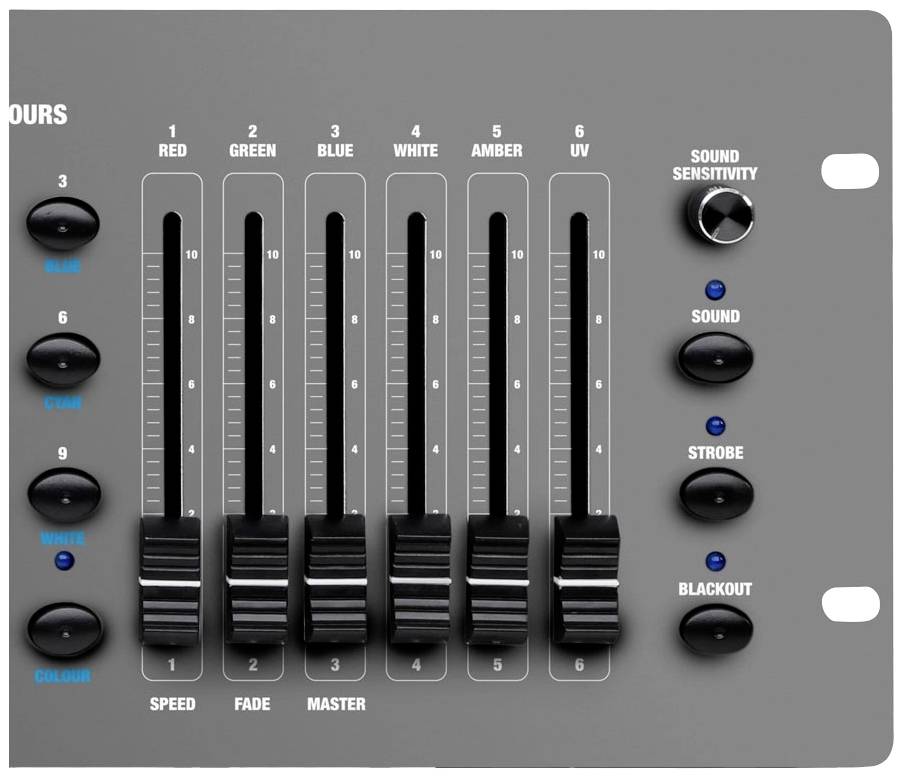

- 54-channel DMX controllerFor a maximum of 9 headlights or groups of headlightsSuitable for all RGB, RGBW, RGBWA and RGBWA+UV headlights6 smooth fader for mixing red, green, blue, white, amber and UV9 color presets with immediate selection keysImmediate selection of automatic or manual mode, blackout, color jump, color fade, strobe and sound control with adjustable microphone sensitivityWith network adapter and 9V block for optional battery operationideal for DJs, clubs, bars, foyers, etc.
Technical specifications

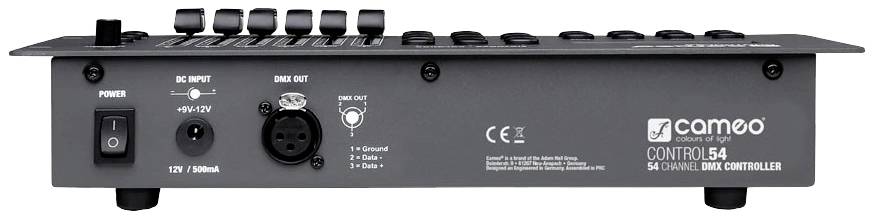

- Control: USITT DMX 512 protocolFunctions: Auto mode, blackout, color fade, color jump, color macros, Manual control, music control, stroboscopeDMX output: XLR 3-pin femaleControls: 22 control buttons, 6x channel fader, on/off switch, control for microphone sensitivityDisplay elements: LC displayPower supply : 9 V block battery, external power supplyOPERATING VOLTAGE 9 V DC - 12 V DCColor: GroughMaterial: Metallic
- Product type
DMX controller
- No. of channels
54-channel
- Weight
1.5 kg
- Width
316 mm
- Height
63 mm
- Length
140 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2616422 Cameo CONTROL 54 DMX controller 54-channel
Description

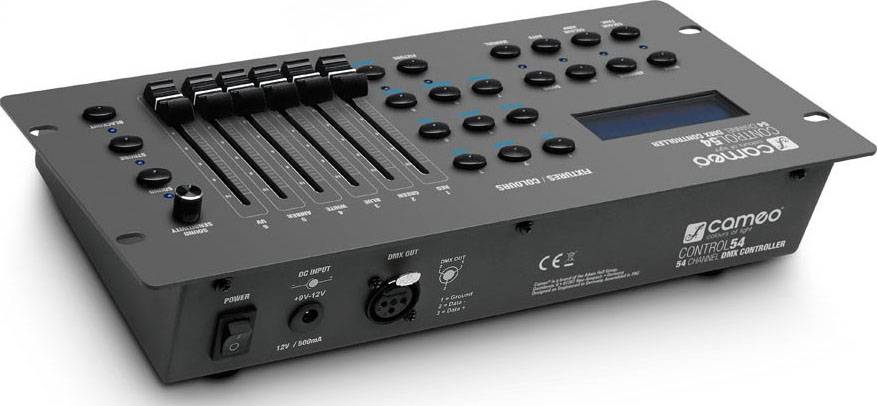

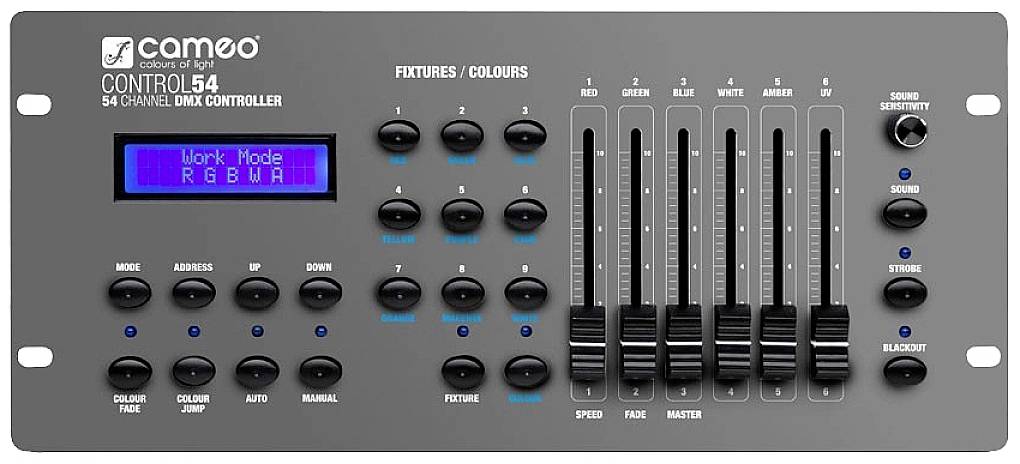

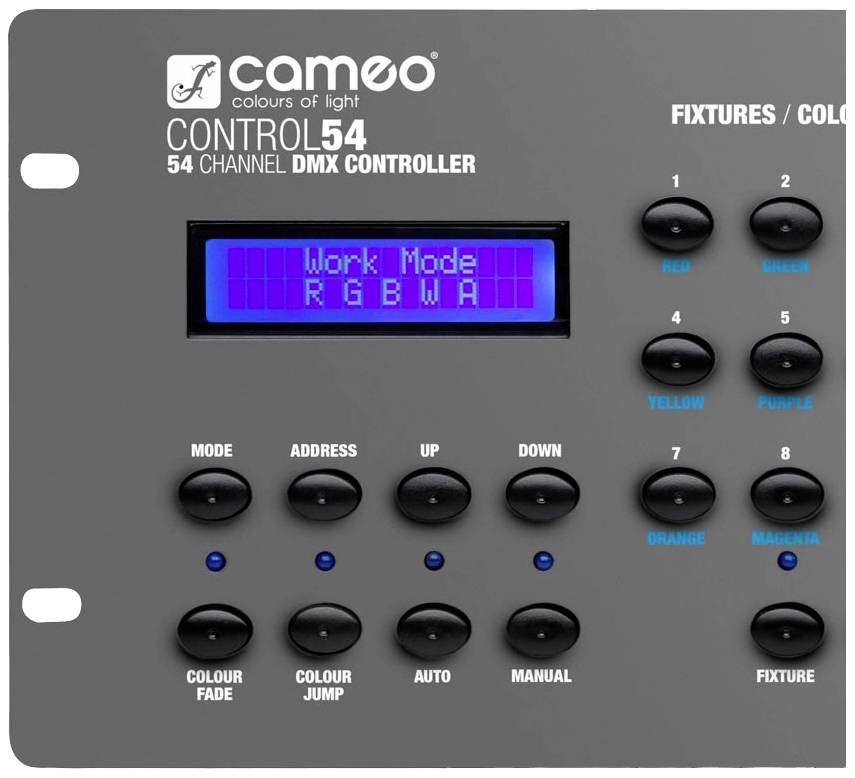

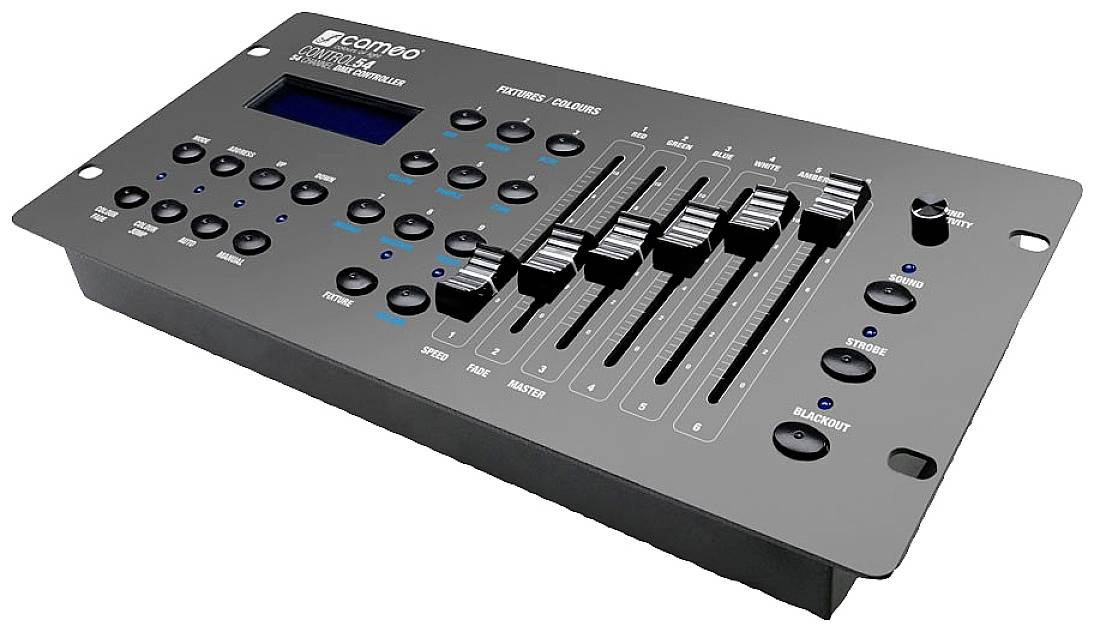

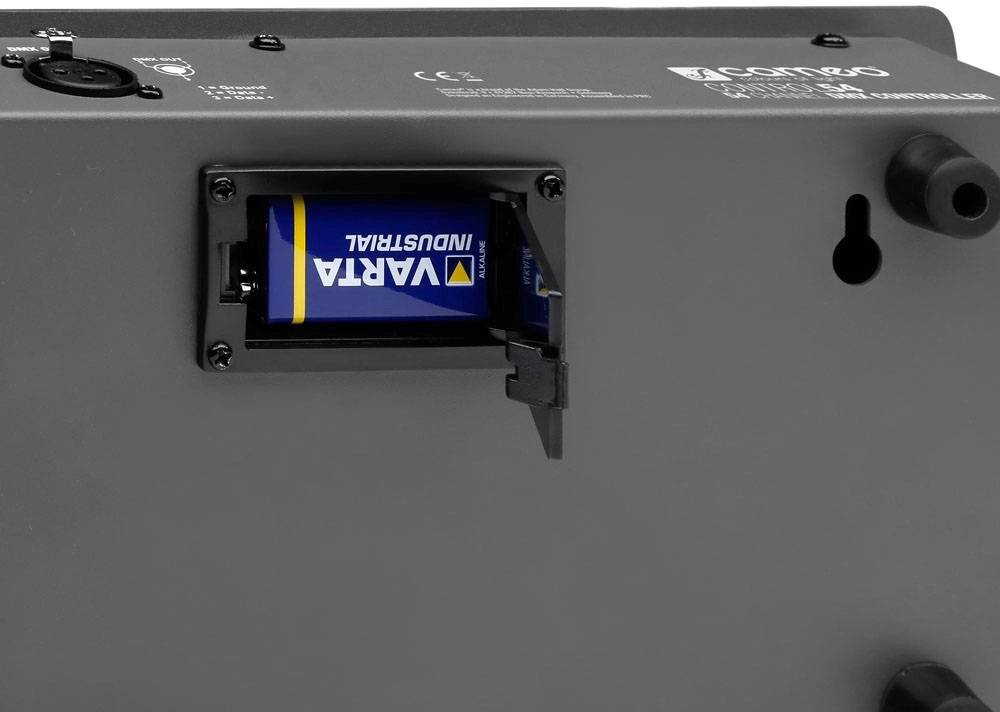

The Control 54 is a compact DMX light mixer, which controls up to 9 headlights or groups of headlights. The versatile controller can be used easily and intuitively and is ideal for DJs, clubs, bars or foyers. It is equipped with 9 color presets, whose selection buttons can also be used for selecting headlights, 6 faders are used for individual control of the proportions of red, green, blue, white, amber and UV.Automatic, manual or sound control with adjustable microphone sensitivity, strobe, blackout, color fade and color jump can be selected directly via the own buttons. A convenient LCD display shows the ncurrent function and its parameters.The cameo Control 54 is supplied with a 9 - 12 V DC mains adapter and 9V-block for optional battery operation. It is suitable for controlling all headlights with RGB, RGBW, RGBWA and RGBWA+UV color mixing, e.g. cameo LED bars and PAR cans including the series FLAT PAR PRO and FLAT PAR 1.
This text is machine translated.
This text is machine translated.
System requirements

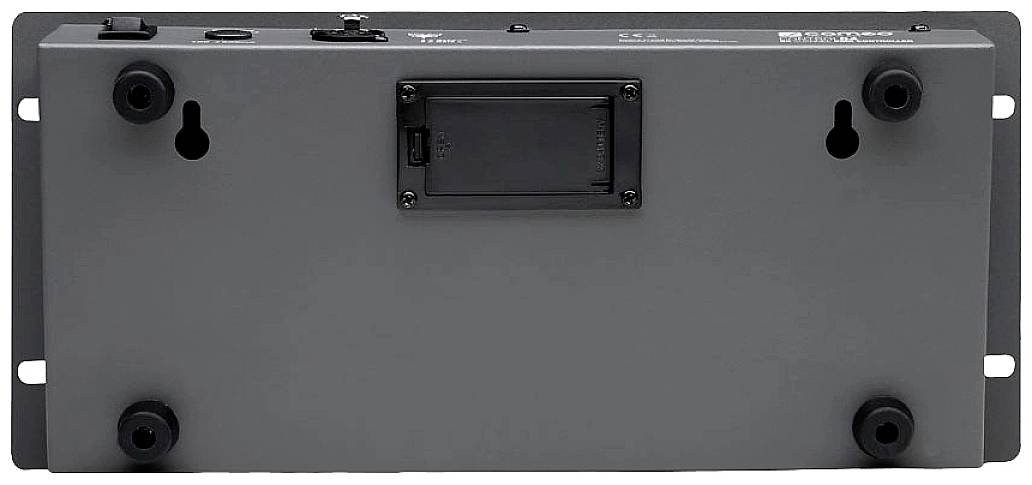

- 9V PP3 battery.

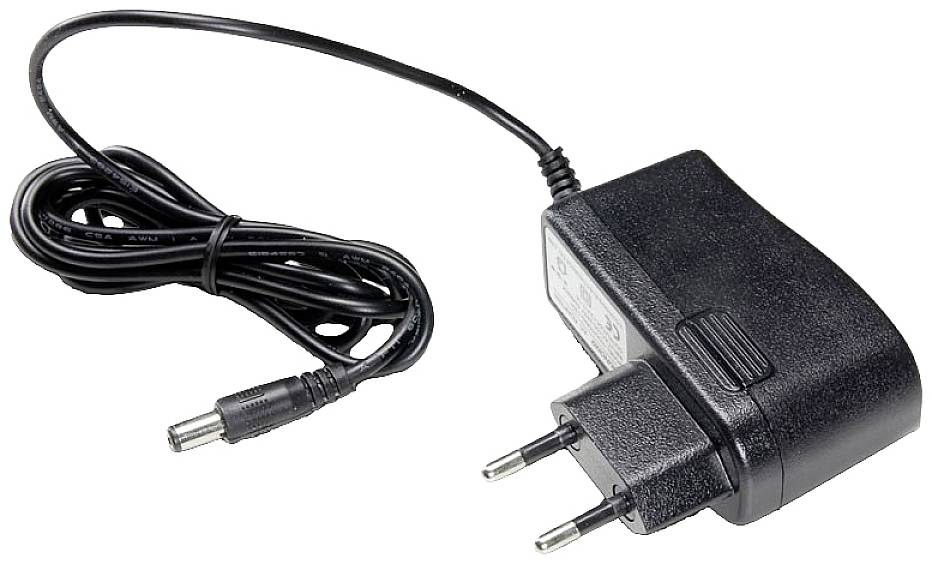

- Power supply unit
