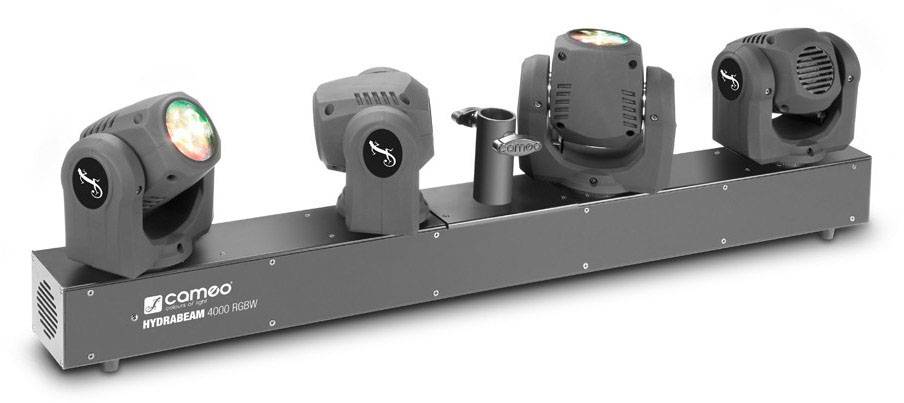

Four movable LED spotlights on a bar, model 'Cameo HYDRABEAM 400 RGBW', for stage lighting.

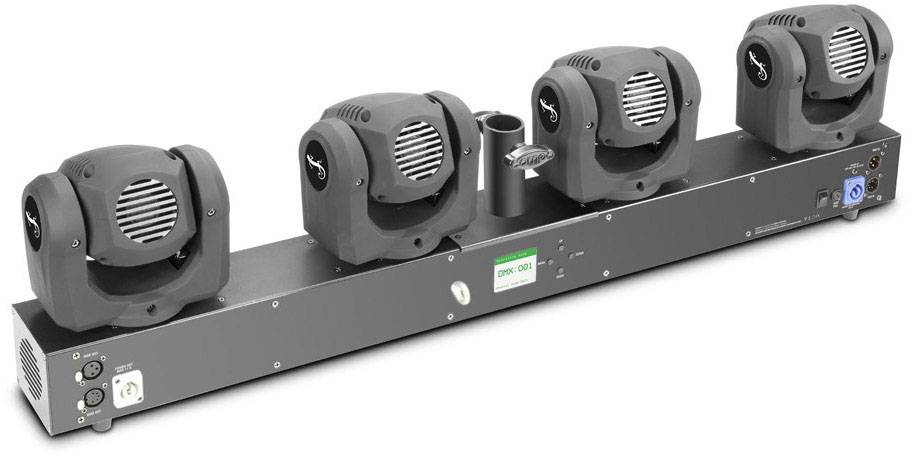

A four-headed stage lighting fixture with pivoting lights, suitable for stage lighting and entertainment applications.

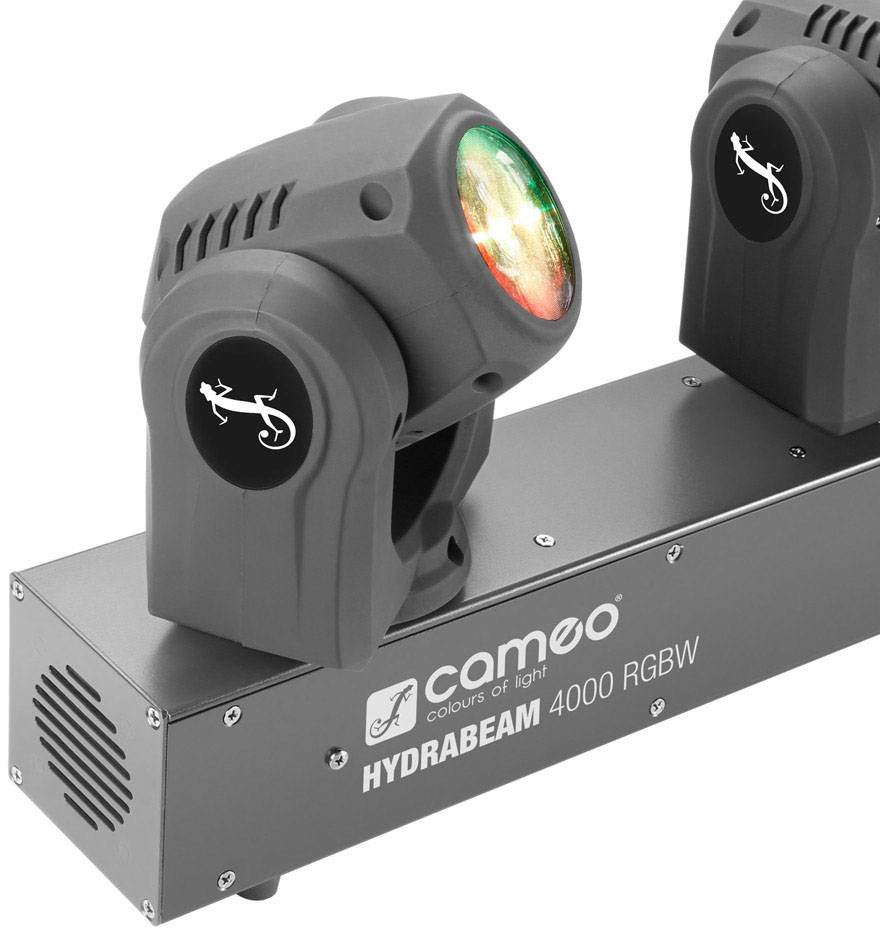

Two swivelling LED spotlights on a base with the inscription 'Cameo Hydrabeam 4000 RGBW', one illuminating in rainbow colours.

Lighting unit with multiple connections on the rear, including DMX in/out and mains power connection.

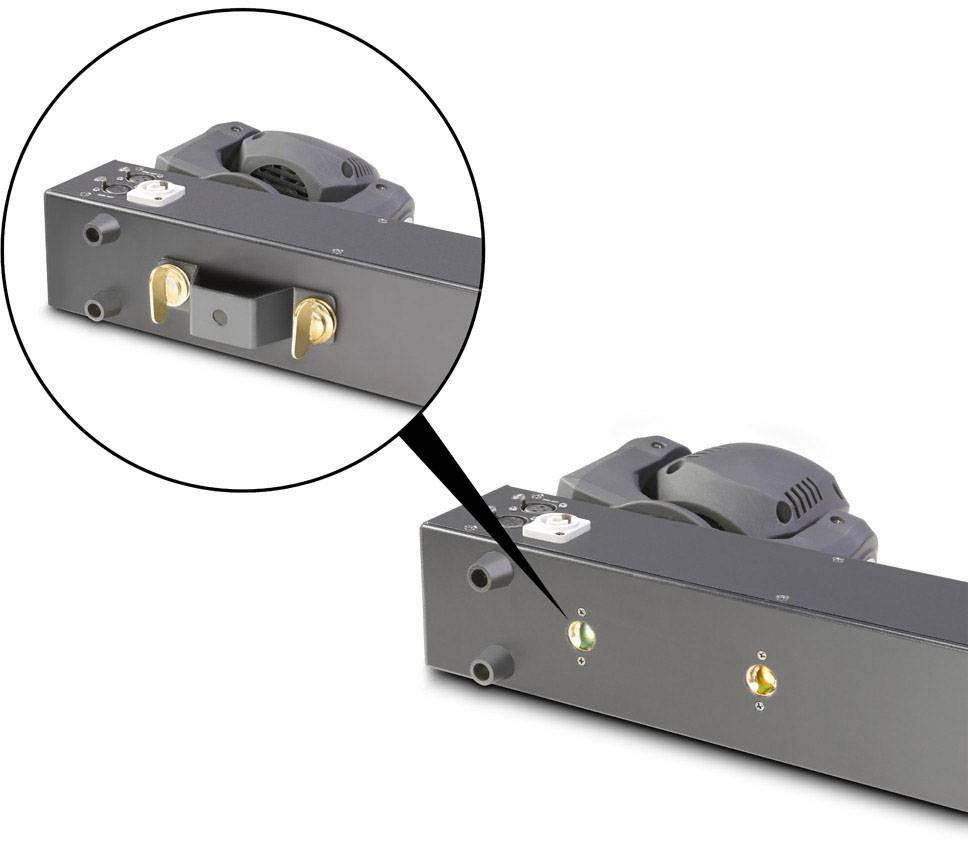

Close-up of a black device with a fan. The enlarged section shows two connection points on the side of the device.

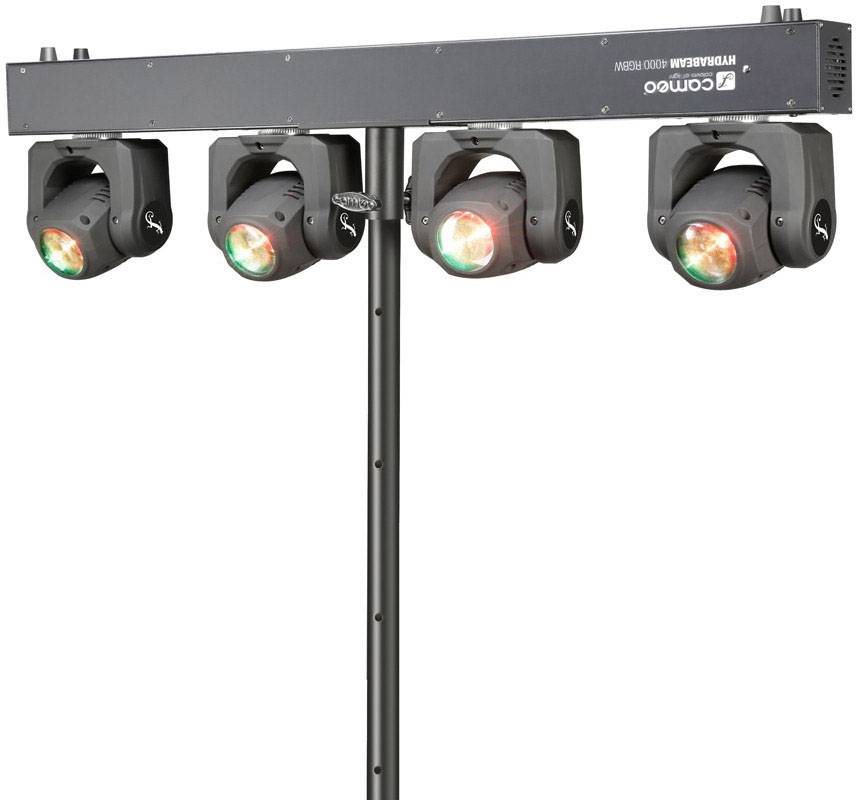

Four movable spotlights on a mounting bracket, creating colourful light effects. Ideal for stage and disco lighting.

Coloured light rays stream from left to right across a dark room, creating a rainbow effect.

Three light rays in red, green and blue, which are bundled and directed downwards in a dark room, create a coloured light spectrum.

Four colourful light beams (red, green, blue, white) radiate from left to right in the dark room.

'Light rays in the colours green, red, white and blue, running alongside each other in a dark room.'

Four colourful light rays beam in different colours downwards from a dark background.

Four bright spotlights project red and white light beams in a dark room. The lights are aligned parallel and identically.

Four strong light beams shining diagonally from above onto a dark surface. The beams are parallel and evenly distributed.

Four blue light beams are visible in a dark room, shining from top to bottom.

Four red light beams shine from top to bottom in a dark room.

Four green light beams shine downwards in a dark room, creating a futuristic and mystical ambience.

1/17

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Light system with 4 ultra-fast 32 W RGBW Quad-LED moving heads

Light system with 4 individually controllable moving heads
Ultra-fast 540° pan and 270° tilt
Powerful 32 W RGBW Quad LEDs
Universal possibility for installation:
2 Omega-brackets and removable tripod flange included
Power Twist-mains sockets (1 x blue, 1 x gray) plus 3- and 5-pin DMX-sockets
Easy to switch in series
5 DMX modes, sound control and automatic mode
16 effective programs
Color display with 4 buttons for convenient configuration

Technical specifications

Product type: LED moving lights
Type: LED moving lights
Color spectrum: RGBW
Number of LEDs: 4
Average lifespan: LED50000 hours
LED type 32 W
Refresh rate 6000 Hz
Beam angle: 2.5 °
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
RDM: No.
Protocols: USITT DMX-512
DMX mode: 10-channel , 19-channel , 32-channel , 56-channel , 6-channel
DMX functions: Auto programs , Color Change , Dimmer , PAN , Strobe , TILT
Wireless DMX: No.
Pan movement: 540°
Tilt movement: 270°
High frequency stroboscope: 1 - 20 Hz
Standalone modes: Auto Run , Sound Control
Controls: Enter , LCD display , Mode , Value Down , Value Up
Display elements: Colored LC display
Power supply: 100 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 220 W
How many devices can be connected (110V): 3
How many devices can be connected (240V): 5
Fuse F3AL / 250 V.
Power supply connection: Blue Power Twist male
Power supply connection: Gray Power Twist female
Max. output current 11 A
Housing material: ABS plastic, metal
Housing colour black.
IP protection class IP20
Cooling: Low-noise fan
Illuminance: Blue 9600lx @ 1m , green 42400lx @ 1m , red 17900lx @ 1m , white 67200lx @ 1m
Maximum ambient temperature 0 - 40° C °C.

Product type: LED stage lighting system

Factory colour: Black

: n.rel.

Dim: (L x W x H) 100 x 9 x 27 cm

Weight: 11.6 kg

Width: 9 cm

Height: 27 cm

Length: 100 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1590400 Cameo Hydrabeam 4000 RGBW LED stage lighting system

Description

The Cameo Hydrabeam 4000 combines 4 individually controllable moving heads with ultra-fast 540° pan and 270° tilt in a 100 cm long headlight system. They are equipped with bright 32 W RGBW Quad-LEDs for brilliant, homogeneous color mixing and generate pin-sharp light beams with a narrow 2.5° angle of radiation.

The Hydrabeam 4000 can be controlled in 5 different DMX modes and possesses 16 varied programs for automatic operation or activation through external sound sources. It also enables even dimming, and the integrated fast strobe produces up to 20 intense flashes of light per second.

The robust design made of ABS and metal has a low-noise fan for effective cooling and a color display with 4 buttons, which serves for comfortable and intuitive configuration as for manual operation. 3- and 5-pin DMX-In and outputs as well as the blue and gray Power Twist-mains sockets permit a problem-free looping through. The Hydrabeam 4000 is supplied with two Omega-brackets and a mounting flange, which covers practically all mounting options.

This text is machine translated.

Features

Every Moving Head can be controlled individually
Easy to operate through four buttons with display.

Scope of delivery

LED lighting system
User manual.
