Cameo SB 6 T RDM DMX splitter 6-channel
EAN:
Part number:
Item no:
Highlights & Details
cameo SB 6 T RDM 6-channel DMX/RDM Splitter/Booster (3 and 5-pin)

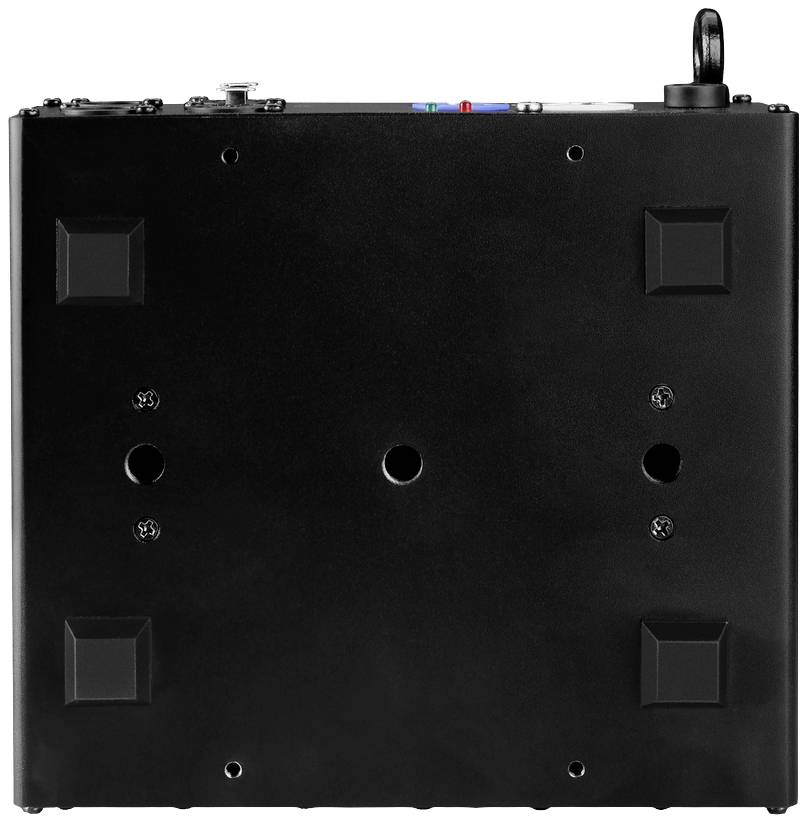

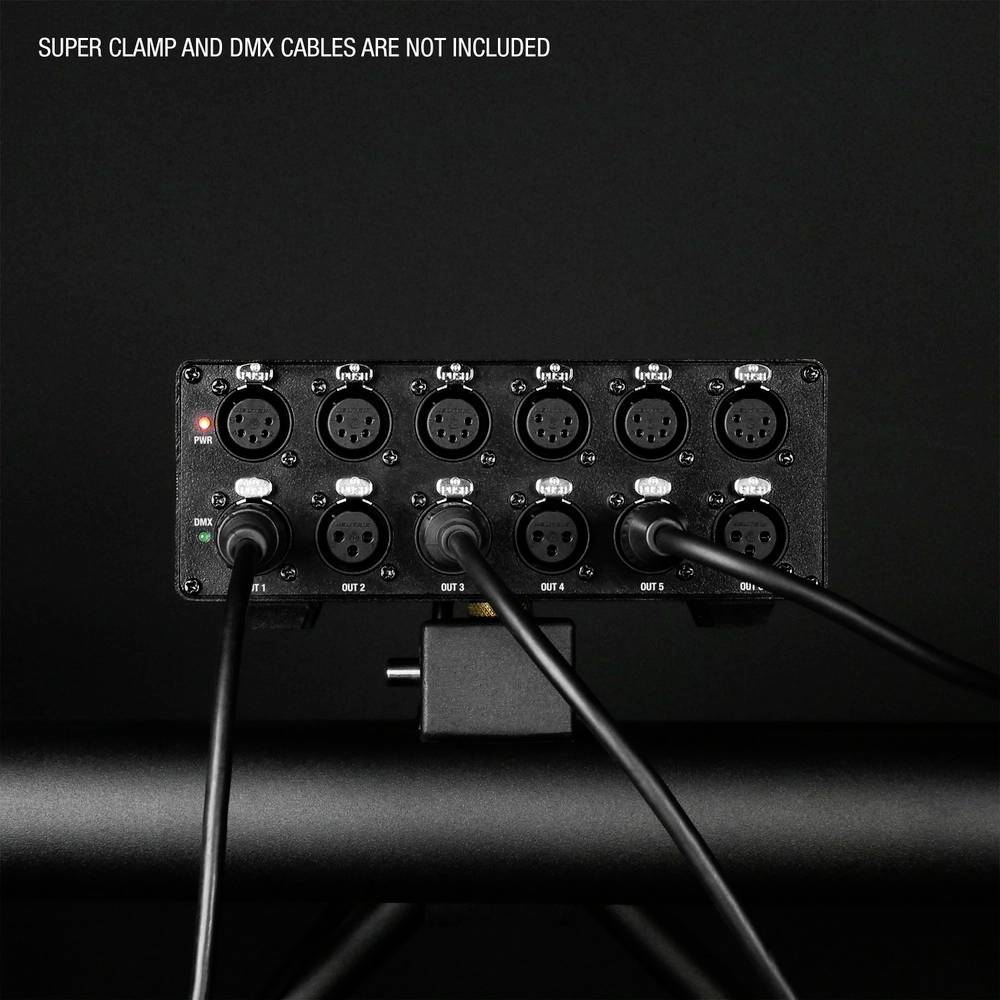

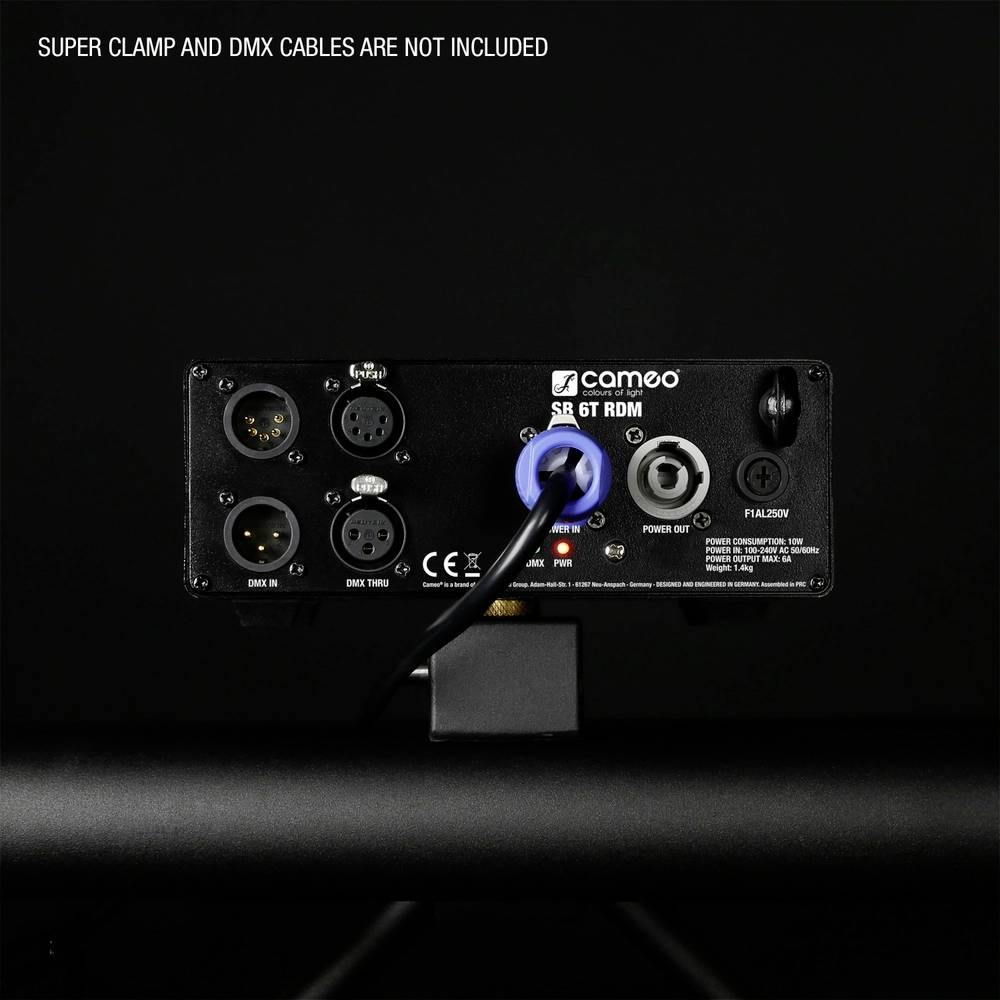

- Professional 6-way DMX/RDM splitter/booster6 optically and electronically separated XLR outputs 3-pin and 5-pinCompact casingOriginal Neutrik® sockets for highest reliability3 x M10 screw threads for mounting in traverse systemsOperating and DMX status indicators on the front and back"2 HE 19" mounting frame for one and two SB 6T RDM available as accessories
Technical specifications

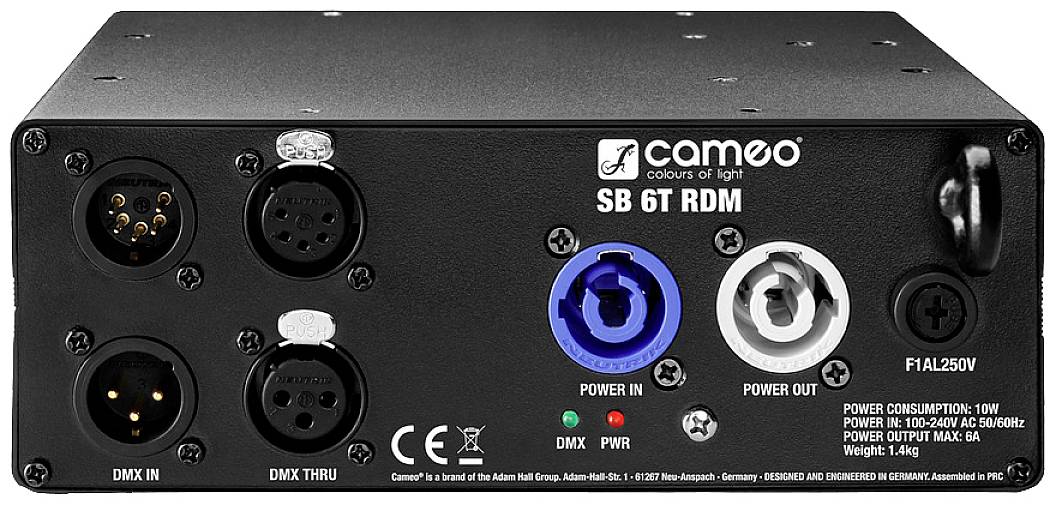

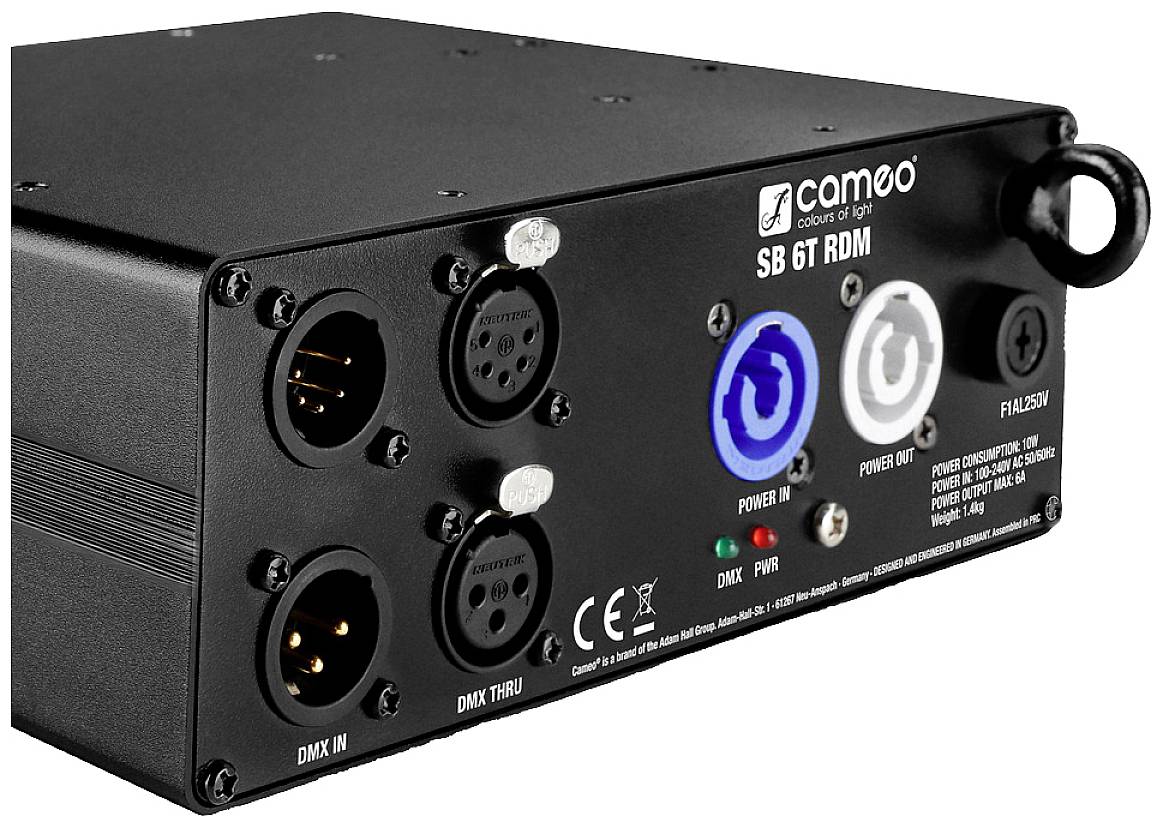

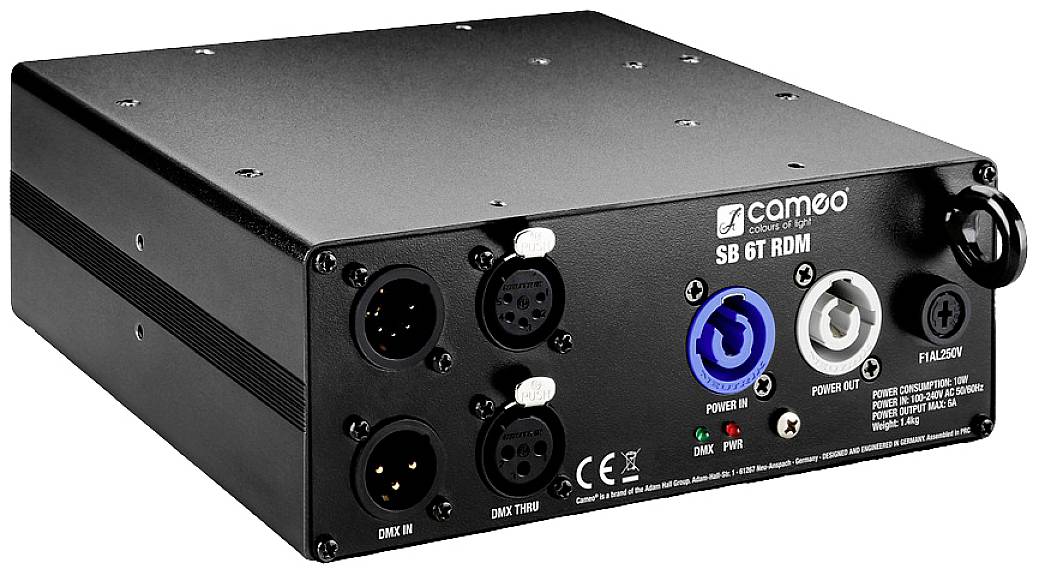

- DMX inputs : 2 (parallel)DMX input connectors: XLR 3-pin male, XLR 5-pin maleDMX Thru Outputs: 2 (parallel)DMX Thru output connectors: XLR 3-pin female, XLR 5-pin femaleDMX outputs : 6DMX output connectors: XLR 3-pin male, XLR 5-pin maleDisplay elements : 2 x power LED, 2 x signal LEDPower connection: Neutrik® powerCONPower supply 100 V AC - 240 V AC / 50 - 60 HzOperating voltage 100 V AC - 240 V AC / 50 - 60 HzMax.Current 6 A.Power consumption 10 W
- Product type
DMX splitter
- No. of channels
6-channel
- Weight
1.3 kg
- Width
185 mm
- Height
77 mm
- Length
170 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2616438 Cameo SB 6 T RDM DMX splitter 6-channel
Description

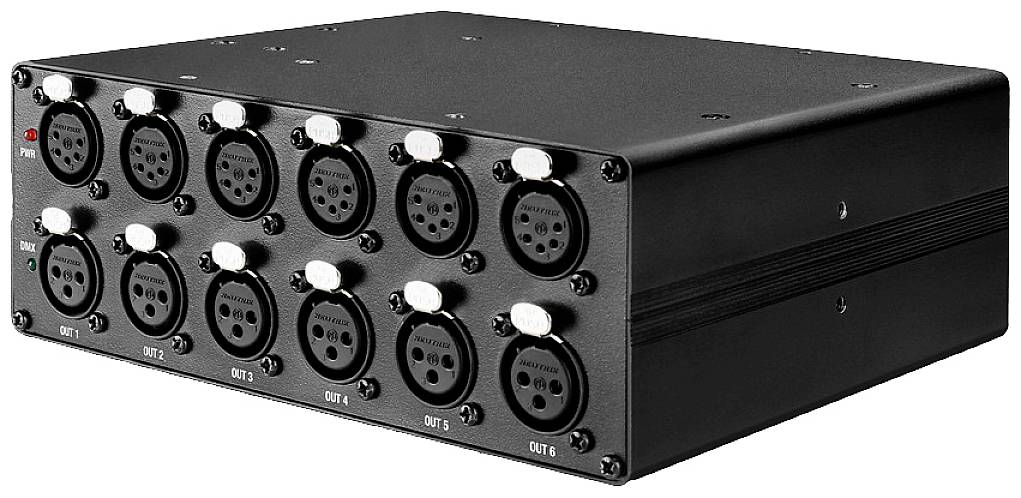

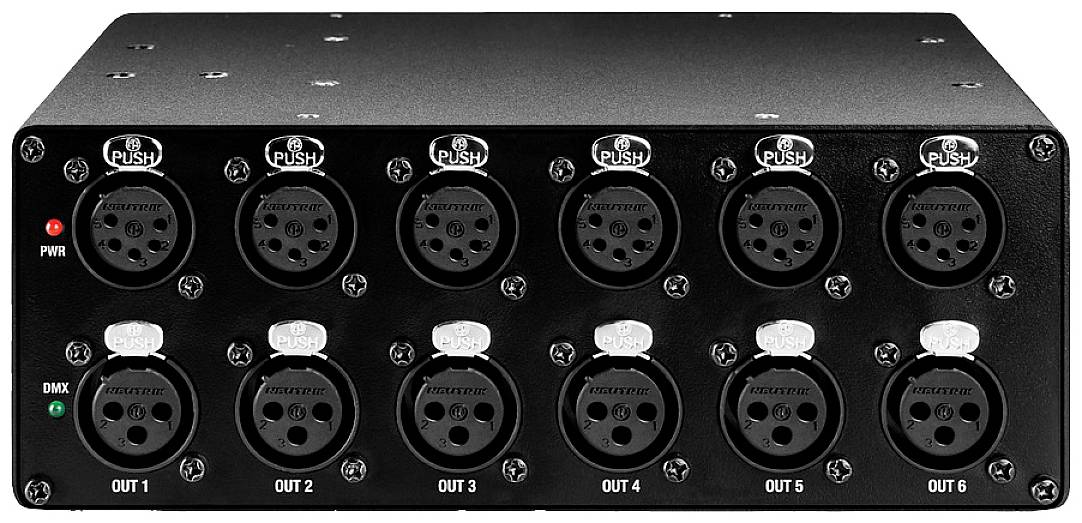

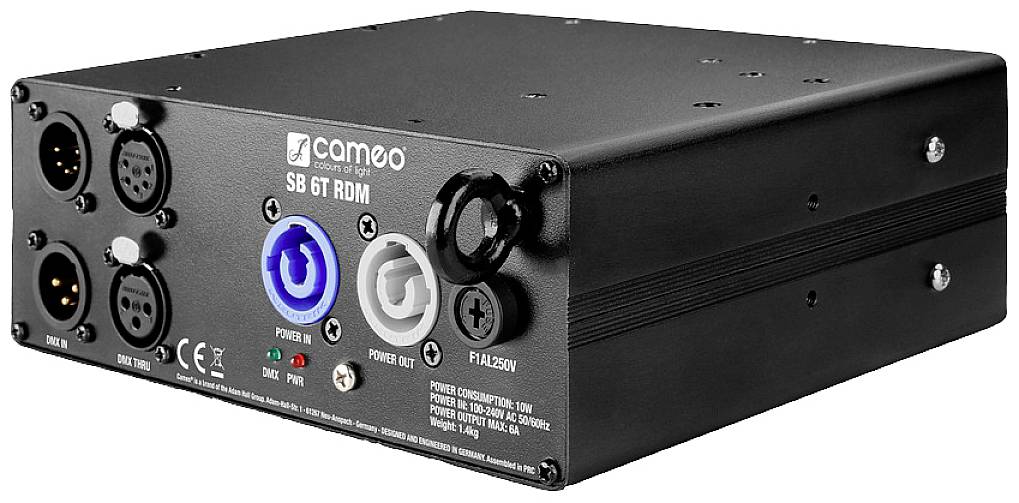

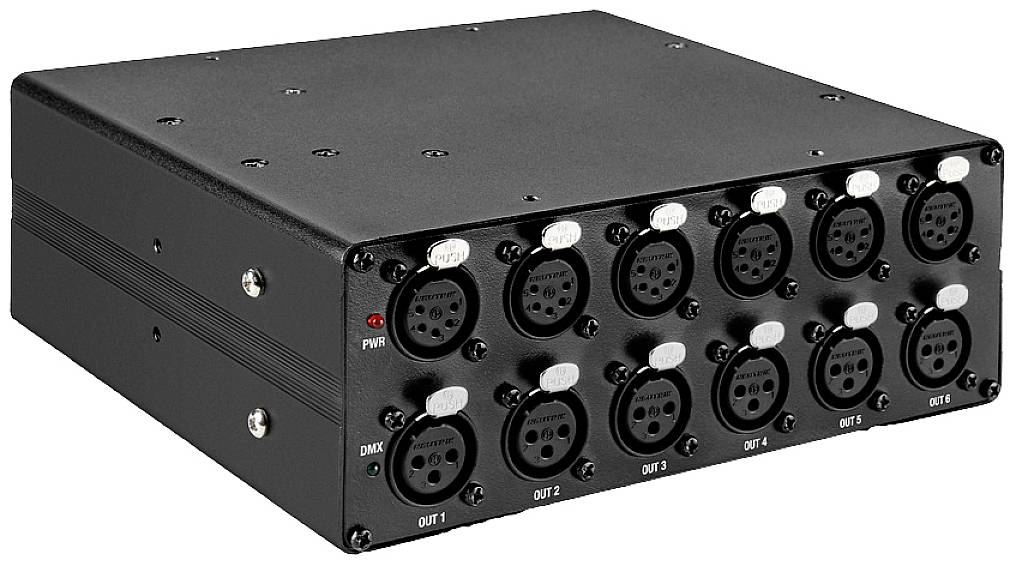

The cameo SB 6T RDM is a 6-way DMX/RDM splitter with two inputs and two parallel outputs, designed for professional use and capable of bidirectional communication. It distributes the DMX/RDM input signal to six outputs, which are electronically and optically separated. Each output channel is equipped with a driver that raises the DMX/RDM signal to its original level. For maximum flexibility and reliability, all inputs and outputs are equipped with both 3- and 5-pin Neutrik® sockets. LEDs indicate the operating and DMX status on the front and back, and three M10 screw threads allow mounting in traverse systems. The cameo SB 6T RDM comes with a powerCON power cord.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Power supply unit
