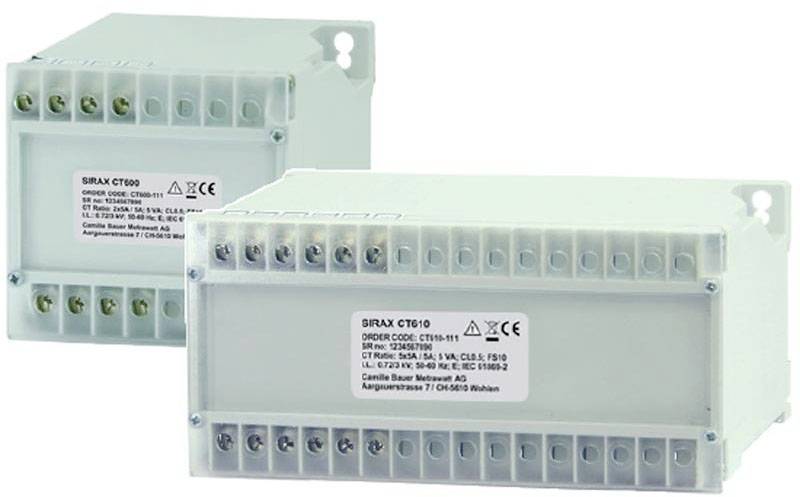

Camille Bauer CT 600 184515 Current transformer Primary current 5 A Secondary current 5 A DIN rail mount 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 45.37 / piece)
€
Technical specifications
- Input current 2x 5 A
- Output current 5 A / 10 VA
- Accuracy class 1.0
- Dielectric strength 3 kV; 50 Hz; 1 min.
- Maximum operating voltage 0.72 kV
- Overcurrent limiting factor FS5
- Connections M4 screws with self-lifting strap.
- Maximum conductor cross-section Ø 2.5 mm solid; Ø 1.5 mm flexible
- Accuracy class
1.0
- Type
CT 600
- Dim
(L x W x H) 70 x 75 x 112.5 mm
- Weight
400 g
- Height
112.5 mm
- Length
70 mm
- Width
75 mm
- Fitting type
DIN rail mount
- Primary current
5 A
- Secondary current
5 A
5 VA
- Digits
2 pc(s)
- Product type
Current transformer
Documents & Downloads
Datasheet
Datasheet 2315038 Camille Bauer CT 600 184515 Current transformer Primary current 5 A Secondary current 5 A DIN rail mount 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2315038 Camille Bauer CT 600 184515 Current transformer Primary current 5 A Secondary current 5 A DIN rail mount 1 pc(s)
Description
Description
Summation current transformers are used to add secondary currents from several main converters. They are designed so that
You combine several synchronous alternating currents of a low phase relationship with each angle of the phase difference. Thus, it is possible to record the total consumption with only one measuring instrument.
This text is machine translated.
Summation current transformers are used to add secondary currents from several main converters. They are designed so that
You combine several synchronous alternating currents of a low phase relationship with each angle of the phase difference. Thus, it is possible to record the total consumption with only one measuring instrument.
This text is machine translated.
Features
- Properties
- Summation of the secondary currents of several main transformers By accessing the measurement
- for a measuring instrument at the output,
- a standardized measuring signal is available Breakproof
- plastic housing made of polycarbonate flame-resistant and
- self-extinguishing according to UL94 V0 terminal protection,
- IP10 nickel-plated terminals with plus
- -minus screws various
- mounting options such as wall or DIN rail
Scope of delivery
- 1x Total current transformer SIRAX CT600
- 1x Operating and installation instructions
