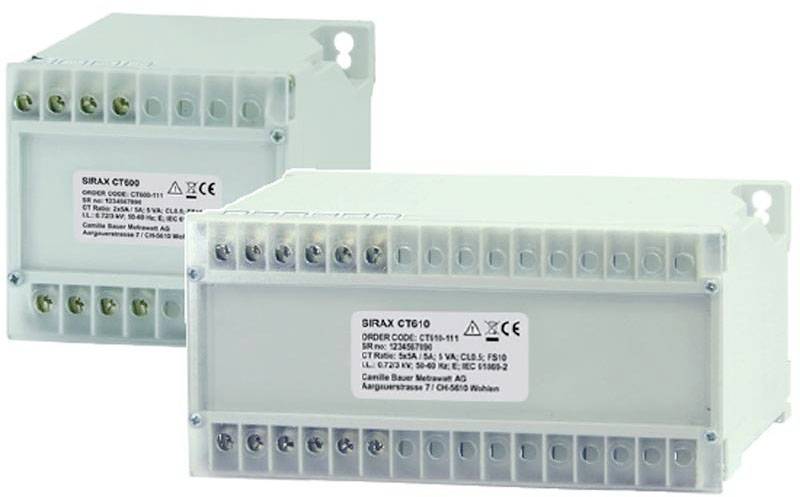

Camille Bauer CT 610 Current transformer Primary current 5 A Secondary current 5 A DIN rail mount 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Technical specifications
- Product type
Current transformer
- Fitting type
DIN rail mount
- Primary current
5 A
- Secondary current
5 A
15 VA
- Accuracy class
0.5
- Type
CT 610
- Dim
(L x W x H) 112.5 x 150 x 70 mm
- Weight
600 g
- Width
150 mm
- Height
70 mm
- Length
112.5 mm
Documents & Downloads
Datasheet
Datasheet 2315105 Camille Bauer CT 610 Current transformer Primary current 5 A Secondary current 5 A DIN rail mount 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2315105 Camille Bauer CT 610 Current transformer Primary current 5 A Secondary current 5 A DIN rail mount 1 pc(s)
Description
Features
- Summation of the secondary currents of several main converters By accessing the measurement
- for a measuring instrument,
- a standardized measuring signal is available at the output, break-proof
- plastic housing made of polycarbonate flame-resistant and
- self-extinguishing according to UL94 V0 terminal protection,
- IP10• nickel-plated terminals with plus-minus screws various
- mounting options such as wall or DIN rail
- This text is machine translated.
Scope of delivery
- 1x
- SIRAX CT610
- 1x
- Installation instructions
