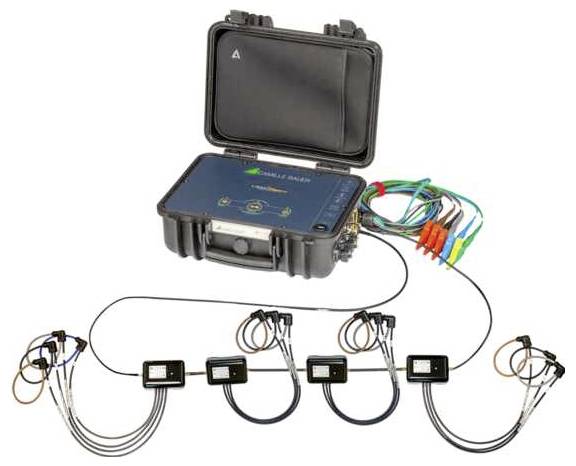

Camille Bauer PQ5000-Mobile CL Network diagnostics Ballast testing

Portable load flow meter for simultaneous output-sharp detection of all load cycles. Mobile, scalable recording of power quality and load flows in power distribution systems. Application areas Monitoring of low-voltage outlets in transformer stations Monitoring of industrial power distribution systems Energy optimization by identification of load behavior . Portable PQI multi-channel meter according to IEC 61000-4-30 Ed. 3 of the Class A Comprehensive PQ analysis for all voltages Metrological certification IEC 61000-4-30 of MEAS according to IEC62586-2 Integrated WebGUI as HMI, including comprehensive cyber protection hard shell case with IP65 with closed housing Auxiliary power 100 to 230V AC by means of mains adapter 300V CAT IV rated frequency 42…50…58 Hz Safety requirement 600V CAT IV. (measurement inputs current & voltage) 64GB SD-Memory Maximum 36 current measurement inputs per device (9 x L1/L2/L3/N) 1 x voltage pickup L1/L2/L3/N/PE by means of voltage measurement leads Fault writer for voltage events: RMS½-values as well as waveform recording of all voltages Fault recording up to 3 minutes after the event display and evaluation via WEB interface of the device Event list with trigger source, event type, Event duration and characteristic event values Zoom-possibilities & data points for on-site analysis Comprehensive load profile recording Time synchronization via NTP server or GPS Data export via CSV or PQDIF files Power values are time-synchronous to the voltage (IEC 61000-4-30) UPS on capacitor basis (min. 30 seconds bridging) Data protocols: http, https, IPv4, IPv6, NTP, REST API data communication via LAN or WLAN access Point to various terminal devices Evaluation via PQIS® possible. 1x power quality analyzer with 5 voltage test leads in carrying case 1x accessories pouch within the basic device with 5 attachable delta clamps WLAN access Point dongle system manual IP67 protected Ethernet cable (RJ45), 5m 1x carrying case with accessories in order quantity ≤ 9 current modules 3P ≤ 9 current modules 3PN ≤ 10 SMA connecting cable 300V OVC IV1x optional: GPS receiver 16x-LVS
