Camille Bauer SINEAX AM3000 Network diagnostics Power testing

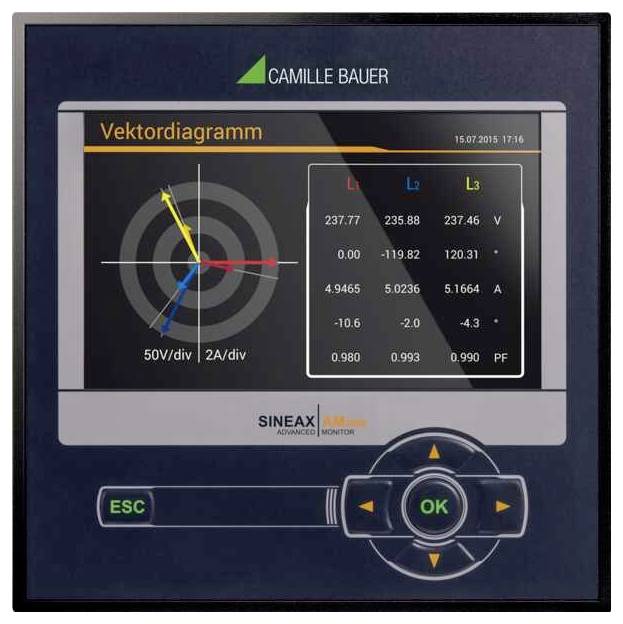

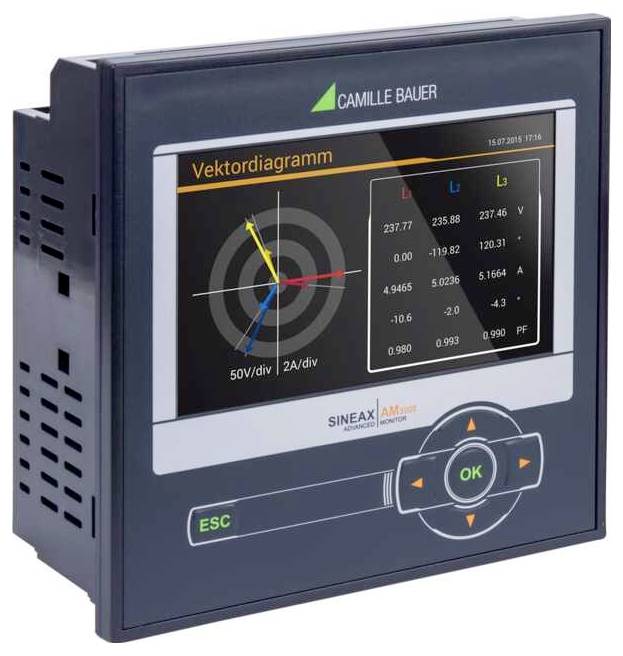

Transparent monitoring of power quality and power consumption The SINEAX AM3000 is a compact device for measurement and monitoring in high-current networks. It impresses with the quality of the display and intuitive operation. The device offers a wide range of functions, which can be expanded even further with optional components. The modern, multi-lingual design permits the device to operate or parameterise intuitively via the device website or the high-resolution color TFT display. The web server enables remote query, display and analysis of the measurement data. No additional software is required. . Configuration With TFT display, for panel installation 4 current transformer inputs (1/5A), 42...50/60…69.5Hz 110...230 V AC, 130...230 V DC Ethernet (Modbus/TCP) + RS485 (RTU) Modbus + REST interface Without data logger 1 digital input passive 2 digital outputs passive Expansion 3 (input and output): Without extension 1 Extension 2 (connectivity): IEC61850 interface Extension 1 (Extra Feature): Without extension 3 Testing protocol English communication Ethernet (Modbus/TCP, http/https, NTP, SFTP, SYSLOG, REST API) Modbus/RTU IEC61850 Automated Data Export (CSV and PQDIF files) on SFTP server Cyber Security (OT) / Cyber Protection Role-based access authorization (RBAC) Hypertext Transfer Protocol Secure (https) Client Whitelist / Client IEC61850 Whitelist [Firewall] Audit Log [Registration of all manipulations] Sys-Log Secure firmware updates Data export PEN-Test Further features 4 Current and 4 voltage measurement channels with 0.1% accuracy Measurement category 600V, CAT III (voltage), 300V, CAT III (Current) Standard I/Os: 1 digital input, 2 digital outputs 16 GB data memory Sampling rate: 18kHz Monitoring and alarming via limit values and monitoring functions For control panel installation 144x144mm Identical operation as devices of the SINEAX® AM/DM series and CENTRAX® CU test protocol Included in delivery Digital network management With the SMARTCOLLECT® SC2 software a complete eco-system for Power quality and Power monitoring can be built up.
