Camille Bauer SINEAX DM5F Network diagnostics Power testing

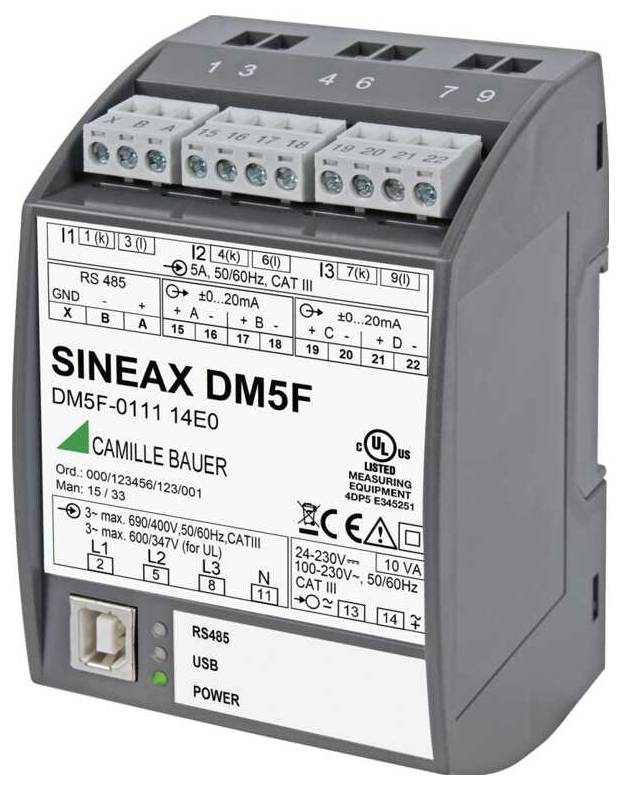

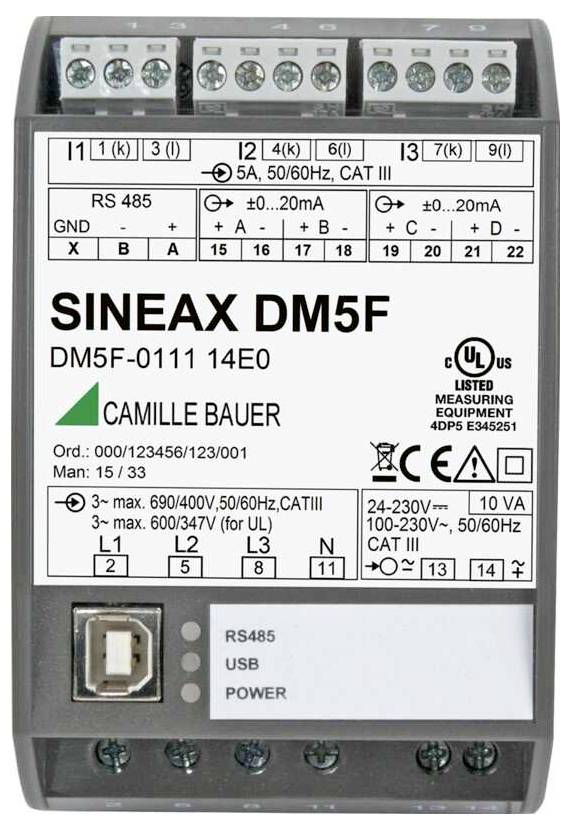

Multi-transducer, prog.bar, ..32 counters, USB, RS485-MODBUS. The SINEAX DM5 is a freely programmable universal measuring instrument for high-voltage networks: A classic measuring transducer of high accuracy, suitable for monitoring and retrofit applications in power distribution and industry. The device can be adapted quickly and easily to the measurement task with the help of CB Manager software even without attached auxiliary power. Depending on the version, the measured values are mapped proportionally on analogue DC current outputs and / or a Modbus interface. The measurement takes place uninterrupted in all four quadrants and can be adjusted optimally to the network to be monitored. Both the averaging time of the measurement and the expected maximum signal height can be parameterized.Commissioning can be carried out very easily and is supported by the service functions rating plate pressure, connection check, measured value recording as well as simulation and trimming of the analog outputs. Configuration Without display, for DIN rail mounting Universal version 3U / 3I 45...50/60…65 Hz Nominal voltage 24...230V DC, 100...230V AC RS485 Modbus Modbus 15…25 ms Setup time (at measurement time 1/2 period) Without outputs Test protocol English Programming: Standard configuration, freely configurable Communication Modbus/RTU Other features Setting time 15…25 ms Network status monitoring: Class 0.2 Universal: U/I, P/Q/S, f, PF etc. Remote communication via Modbus Power Measurement: Class 0.5S Configuration also without auxiliary power Test protocol Included in delivery Digital network management With the SMARTCOLLECT® SC2 software a complete Ecosystem for Power quality and Power monitoring can be set up. SINEAX DM5F Safety Information (Multilingual)
