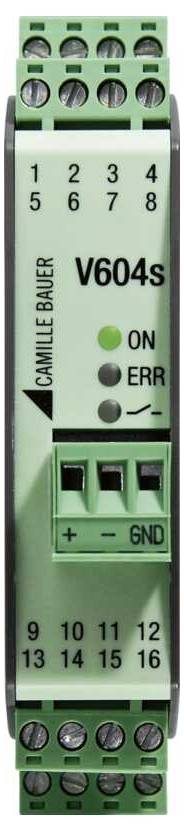

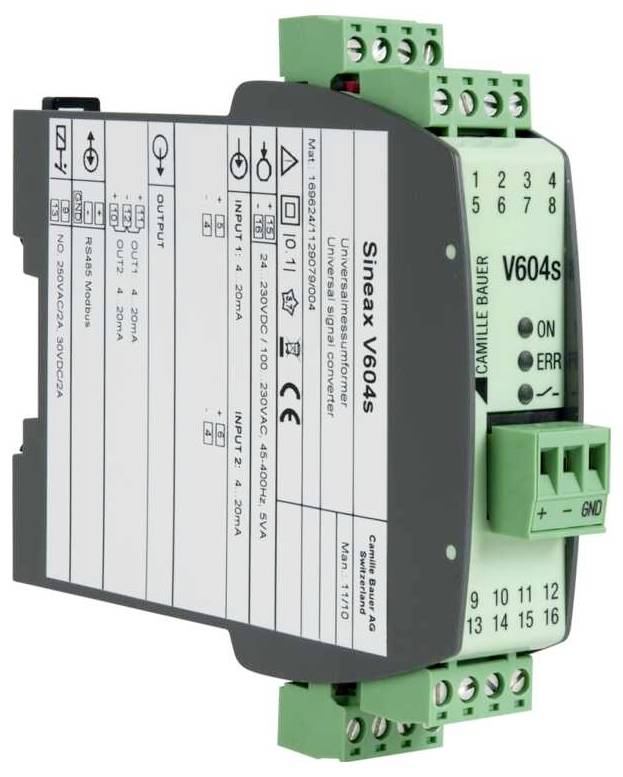

Camille Bauer SINEAX V604s 193321 Transducer 1 pc(s)

Measuring transducer for temperature and DC sizes, programmable, 2 inputs Programmable, multifunctional transmitter for DC currents, DC voltages, temperature sensors, remote sensors or potentiometers. Configuration Input 1: Input [mV] to 1000 mV Input [V] to 600 VDC Input 2: Without measuring output 1: Current [mA] Measurement output 2: Do not use The V604s is suitable for DIN rail mounting and has the following main features: Measurement of DC voltage, DC current, temperature (RTD, TC), resistance Sensor connection without external bridges 2 inputs (e.g. for sensor redundancy or differential formation) 2 outputs (U and / or I) 2 inputs can be linked with each other and assigned to the 2 outputs, whereby calculations and sensor monitoring (e.g. predictive maintenance of the sensors) are possible. System-enabled: Communication via RS485 Modbus-interface Freely programmable relay e.g. for limiting value or alarm signaling AC/DC wide range power supply Plug-in high quality screw terminals All settings of the device can be adjusted by means of PC-software to the measurement task. The software is also used for visualization, commissioning and service. 1 SINEAX V604s1 Safety Information 168 5011 Software and documentation CD 156 027
