Camille Bauer SIRAX BM1450 201..1000V / 60-300V 485 4R Network diagnostics Power testing

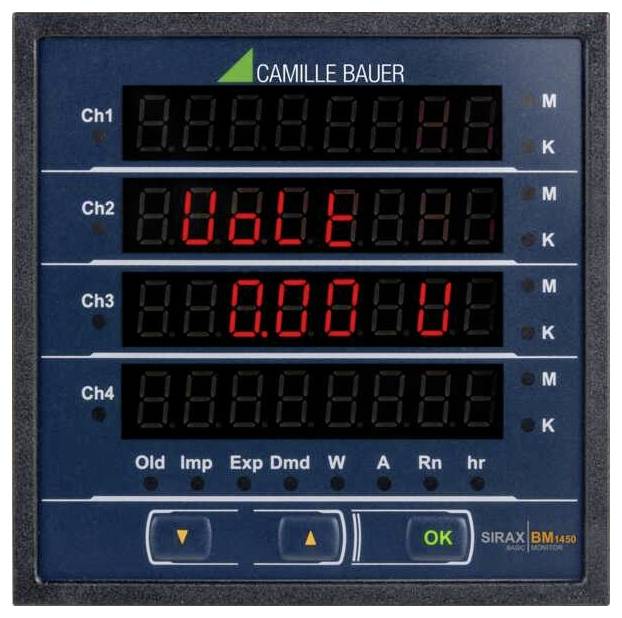

Multi-functional power indicator programmable for current, voltage, active, reactive and apparent power, active and reactive energy. The multifunctional DC power indicator SIRAX BM1450 can be used for monitoring and control in DC systems. These meters measure a number of electrical parameters like DC voltage, current, power, energy and much more. They support the bi-directional voltage and current measurement, 1 channel voltage input, 4 channel current input and 4 relay outputs. The large 4-line, 8-digit LED display offers simple reading of data directly on the front of the device. The configuration is performed locally by three push-buttons or via Modbus RTU via RS485. . Multi-channel support Bi-directional voltage and current measurement On-site configuration Different relay functions possible (end switch, pulse output, timer) DC power measurement Monitoring and control of circuit breakers. Voltage input: Nominal input voltage 10-60 V Current input: Input range 1-20 kA Number of channels: 4 Current sensor: External shunt Adjustment range Shunt 50-150 mV design: 10-60 V, 50-150 mV, 60-300 V=~, RS485, 4 relays.
