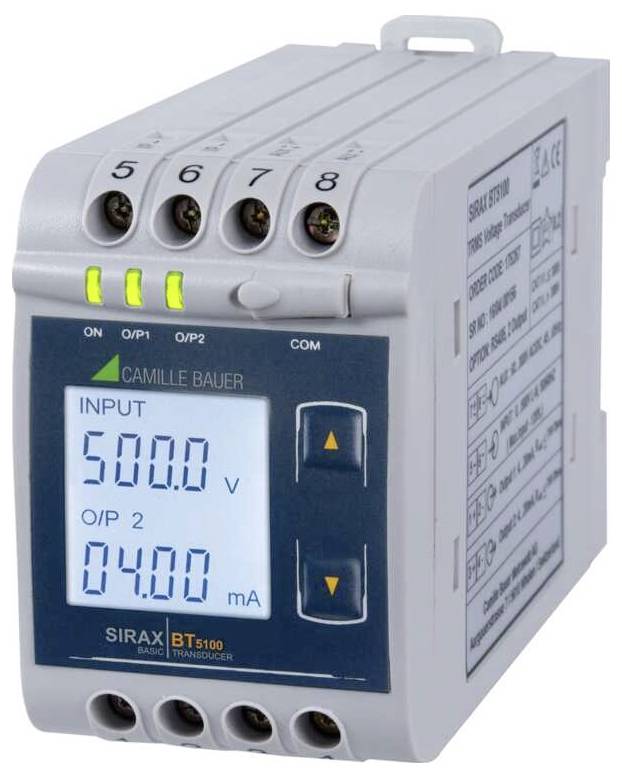

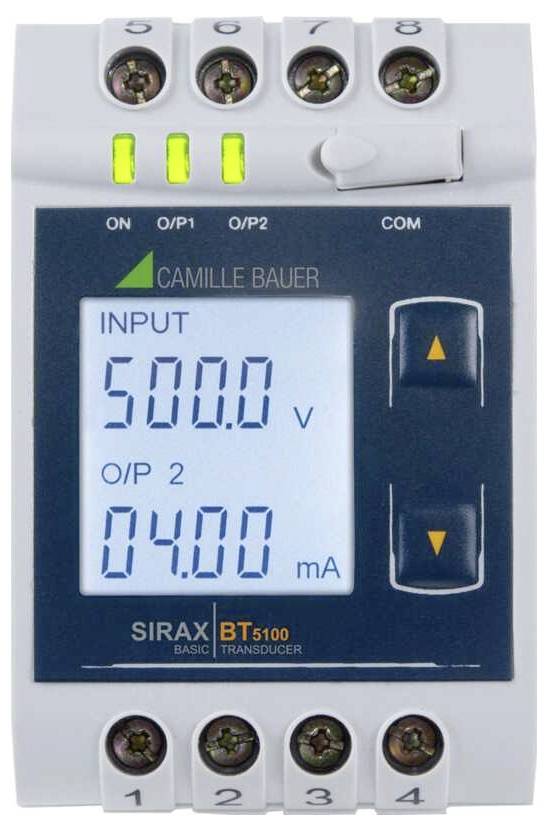

Camille Bauer SIRAX BT5100 Measuring transducer for AC voltage, RS485, LCD display

Measuring converter for alternating voltage. The measuring transducer SIRAX BT5100 is a DIN rail device which is used to convert an AC input voltage into a DC current or voltage output signal proportional to the measured value. The AC input voltage and output current/voltage are shown on the display and shown on the Modbus interface. . Connection type single-phase (voltage) 2 configurable analog outputs linear or with bend in a range of 0/4…20 mA, 0/2…10 V Fast on-site programming by push buttons or via software Easy on-site device operation Clear and easy-to-read display of the measurement data via LCD display Flexible communication and remote reading via integrated Modbus-RTU interface DIN Rail rail mounting basic accuracy 0.2 %. Basic unit: With LCD display, DIN rail mounting Input range: AC 1P Voltage unfunctional Frequency range: 45-65 Hz Measurement input Current over current: Without measurement input Current over voltage: Without measurement input Voltage: 57…500 V L-L Auxiliary power: 60…10 V AC/DC Bus connection: RS485 (RTU) Standard protocol: Modbus Outputs: 20...0 mA / 4...0 mA or 20...300 V Measurement: Standard test protocol: With test protocol (only in English).

This text is machine translated.
