Camille Bauer SIRAX BT5200 194993 Transducer 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Type
SIRAX BT5200
Output (voltage)
0/2...10 V
Output (current)
0/4...20 mA
Input signal (current)
1 Stromwandlereingang 5A/1A
Technical specifications
- Type
SIRAX BT5200
- Product type
Transducer
- Output (voltage)
0/2...10 V
- Output (current)
0/4...20 mA
- Input signal (current)
1 Stromwandlereingang 5A/1A
- Content
1 pc(s)
- Configuration
Software
- Operating voltage U(B)
24…60 V AC/DC
DIN rail (top hat rail) 35 mm
TRUE
Other
TRUE
50 Hz
0 A
5 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3532218 Camille Bauer SIRAX BT5200 194993 Transducer 1 pc(s)
Conformity certificate
Conformity certificate 3532218 Camille Bauer SIRAX BT5200 194993 Transducer 1 pc(s)
Description

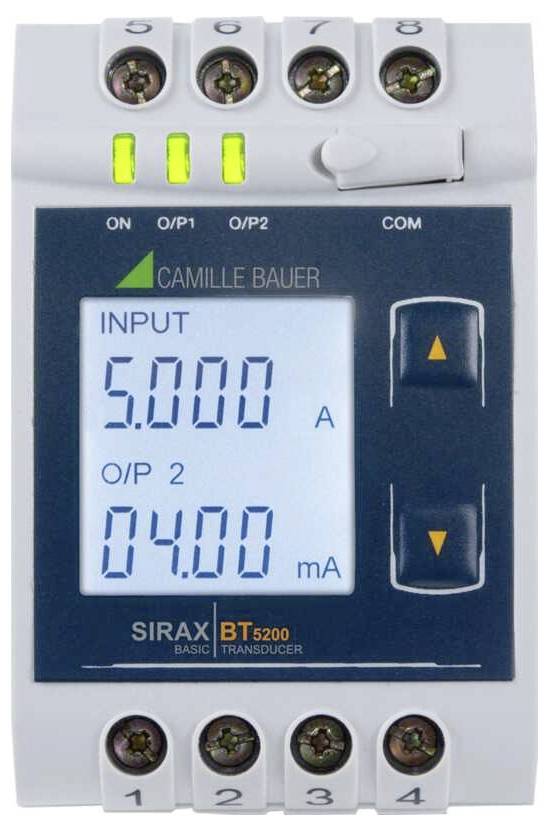

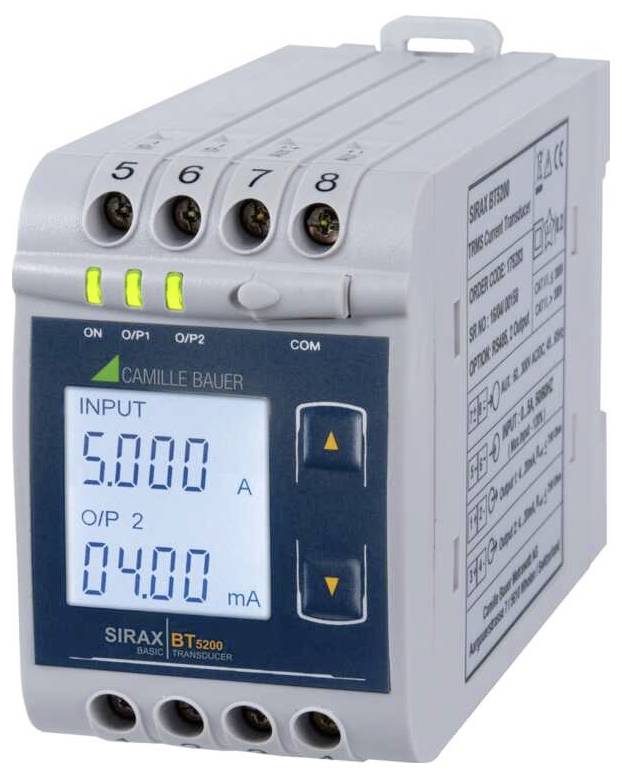

Measuring transducer for AC current. The transmitter SIRAX BT5200 is a DIN rail device that is used to convert an AC input current into a DC current or voltage output signal proportional to the measured value. The AC input current and output current/voltage are shown on the display and shown on the Modbus interface. Connection type single-phase (current) 2 configurable analog outputs linear or with kink in a range of 0/4...20 mA, 0/2...10 V Fast on-site programming by push-buttons or via software Simple on-site device operation Clear and easily readable display of the measured data via LCD display Flexible communication and remote reading via integrated Modbus-RTU interface DIN rail mounting basic accuracy 0.2 %. Basic unit: With LCD display, DIN rail mounting Input range: AC 1P voltage Unifunctional Frequency range: 45-65 Hz Measurement input Current over current: 1 A/1A Current measurement input Current over voltage: No auxiliary power: 24…60 V AC/DC Bus connection: RS485 (RTU) Standard protocol: Modbus Outputs: 0...0 mA / 10...20 mA or 20...4 V Measurement size: Standard test protocol: With test protocol (only in English).
