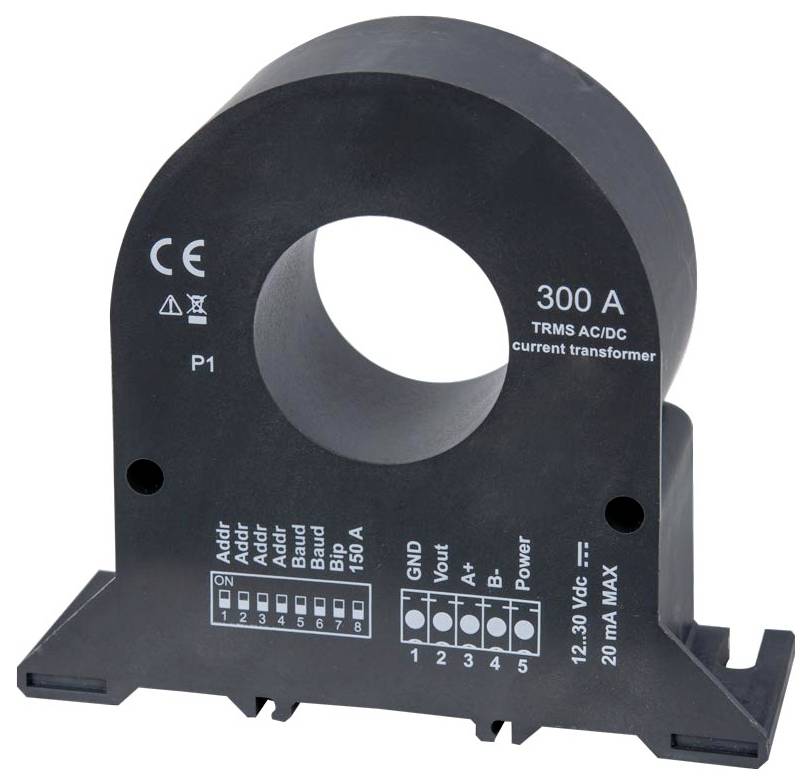

Camille Bauer SIRAX BT7100 179954 Transducer 1 pc(s)

AC/DC current transformer with transmitter functionality: Rated current 300 A AC / 400 A DC. SIRAX BT7100/BT7150 transformer with integrated measuring transducer functionality for monitoring of 1-phase AC or DC applications The current measurement is done galvanically separated from the measured line. The large number of measured variables, the maximum current of up to 300 AAC or 400 ADC allow a versatile use of the devices. . Unbreakable plastic casing made of PBT Flame-retardant and self-extinguishing according to UL94 V0 Measurement of current by means of the Hall effect: 300 AAC / 400 ADC Galvanic separation from the measuring circuit Configuration by means of configuration software RS485 Modbus/RTU serial and analogue 0...10 V or 4...20 mA output DIN-rail or wall mounting for vertical or horizontal position. The AC / DC current transformers with transmitter functionality are the ideal solution for applications where only the current has to be monitored The devices are perfectly suitable for monitoring medium/large photovoltaic installations, battery charging systems and industrial processes.. Basic unit: Without display, for rail mounting Input range: AC/DC 1P 300A AC 400A DC Frequency range: 20...200 Hz or DC Measurement input Current over voltage: Without auxiliary power: 12…30 V DC Bus connection: RS485 (RTU) Standard protocol: Modbus output: 0…10V DC Measured variables: Standard test protocol: None.
