Camille Bauer SIRAX BT7350 Network diagnostics 1-phase Power testing

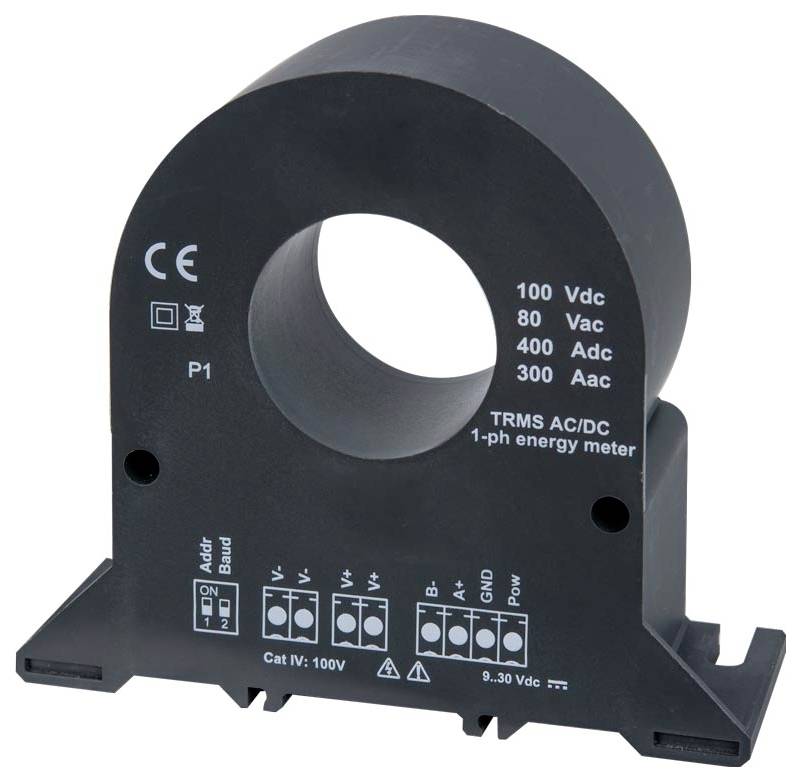

AC/DC current transformer with energy meter functionality: Nominal current 300 AAC / 400 VDC. SIRAX BT7300/BT7350 current transformer with integrated energy meter functionality for monitoring of 1-phase AC- and DC-applications. The large number of measured variables, the maximum current of up to 300 AAC or 400 ADC at a maximum of 1000 VDC or 800 VAC, enable a versatile use of the devices. . Unbreakable plastic casing made from PBT Hardly flammable and self-extinguishing according to UL94 V0 Bi-directional energy measurement Max. Current range up to 300 AAC / 400 ADC Max. Voltage range up to 800 VAC / 1000 VDC Electrical isolation from the measurement circuit Configuration by means of configuration software Serial RS485 Modbus / RTU output DIN rail or wall mounting for vertical or horizontal position. With the ability to measure currents with different frequency ranges, the AC/DC current transformers with energy counter functionality are the ideal solution for monitoring of photovoltaic systems, battery charging systems, UPS-systems and drives with variable frequency. Basic unit: Without display, for rail mounting Input range: AC/DC 1P 300A AC 400A DC Frequency range: 20...200 Hz or DC Measuring input Current over voltage: Without measuring input Voltage: 80 VAC / 100 VDC Auxiliary power: 12…30 V DC Bus connection: RS485 (RTU) Standard protocol: Modbus output: Without measuring variables: Standard test protocol: None.

This text is machine translated.
