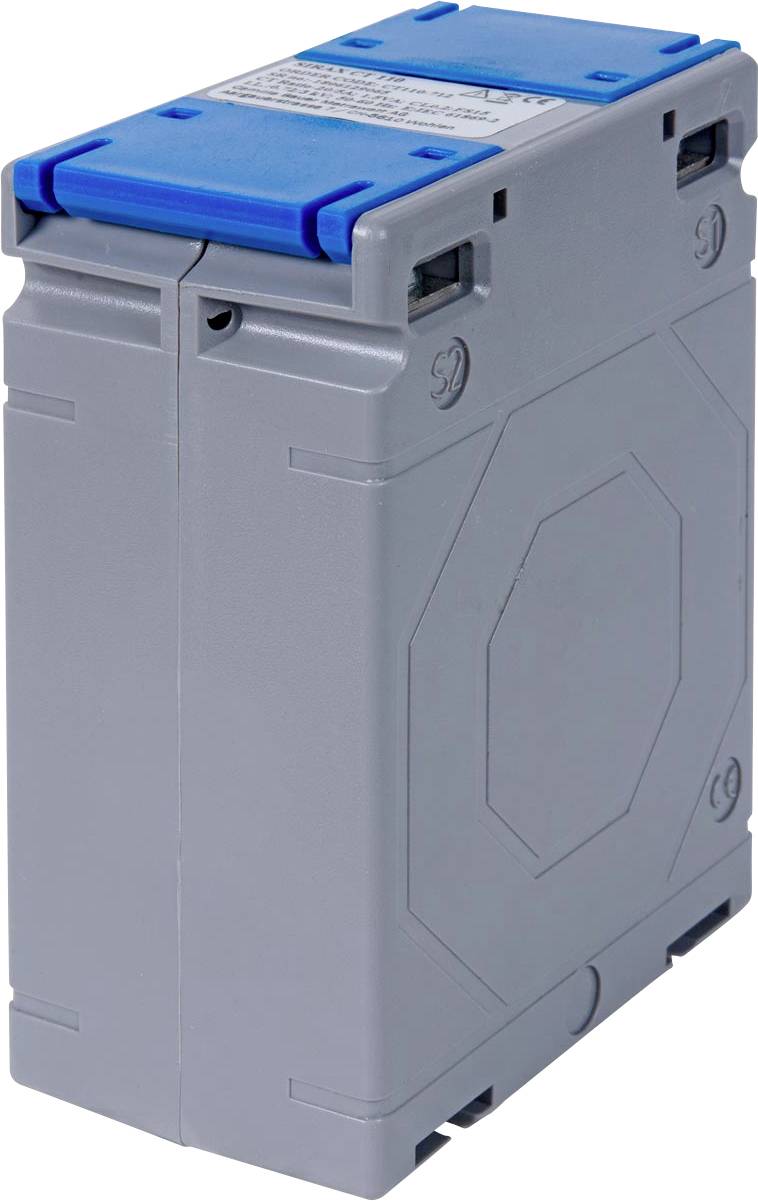

Camille Bauer SIRAX CT100 194377 Coil core transformer Primary current 5 A Secondary current 1 A 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Rewound current transformer
- Input current (current) 5 A
- Output current 1 A
Technical specifications
- Product type
Coil core transformer
- Primary current
5 A
- Secondary current
1 A
1 W
- Accuracy class
0.5
- Type
SIRAX CT100
- Output current
1 A
- Input current
5 A
Wound primary current converter
1 W
1
FALSE
5 A
FALSE
1 VA
1 A
TRUE
FALSE
0.5
Screw connection
Documents & Downloads
Datasheet
Datasheet 3532197 Camille Bauer SIRAX CT100 194377 Coil core transformer Primary current 5 A Secondary current 1 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532197 Camille Bauer SIRAX CT100 194377 Coil core transformer Primary current 5 A Secondary current 1 A 1 pc(s)
Conformity certificate
Conformity certificate 3532197 Camille Bauer SIRAX CT100 194377 Coil core transformer Primary current 5 A Secondary current 1 A 1 pc(s)
Description
Winding current transformer for indirect measurement of sinusoidal AC. Coil current transformers convert small primary rated currents from 1 A into, which can be used by the measuring system, electrically isolated secondary rated currents of 5 A or 1 A. In contrast to clip-on or cable conversion transformers, wound transformers have 4 screw connections. The primary current as well as the secondary current are connected via terminals. Primary current: 5A Secondary current: 1A Accuracy class: 0.5 Power: 1VA. SIRAX CTxxx plug-in current transformer with assembly set Operating instructions (DE, EN) Test protocol
