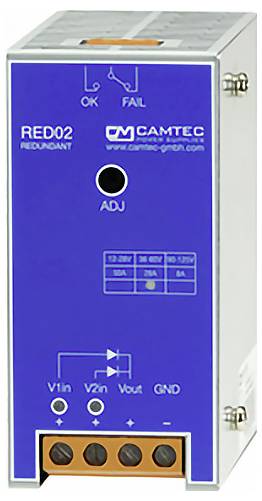

Camtec RED00202B(R2) Power supply unit 28.000 A

The redundancy module RED00202 is designed for applications from 0Vdc to 125Vdc. The DC outputs from two identical DC sources are decoupled. The total load is the same as the single load of each connected DC source. In normal operation, the total load is evenly distributed among the connected voltage sources. If one of the connected DC power sources fails, the other source takes over the entire load without causing a power failure in the system. The internal Power-ok relay (changeover contact) provides for a constant control of the status of the connected power supplies. If a power source fails, the relay indicates that the remaining power source takes over the load. The undervoltage detection Vu can be adjusted via the ADJ potentiometer on the front panel. The Vo overvoltage detection in the table of the technical data is set at the factory and cannot be changed. The DC input and the DC output are potential-free. The GND input of the RED00202 is only required for your own power supply. The voltage drop between the DC input and the DC output is between 500mV and 700mV .
