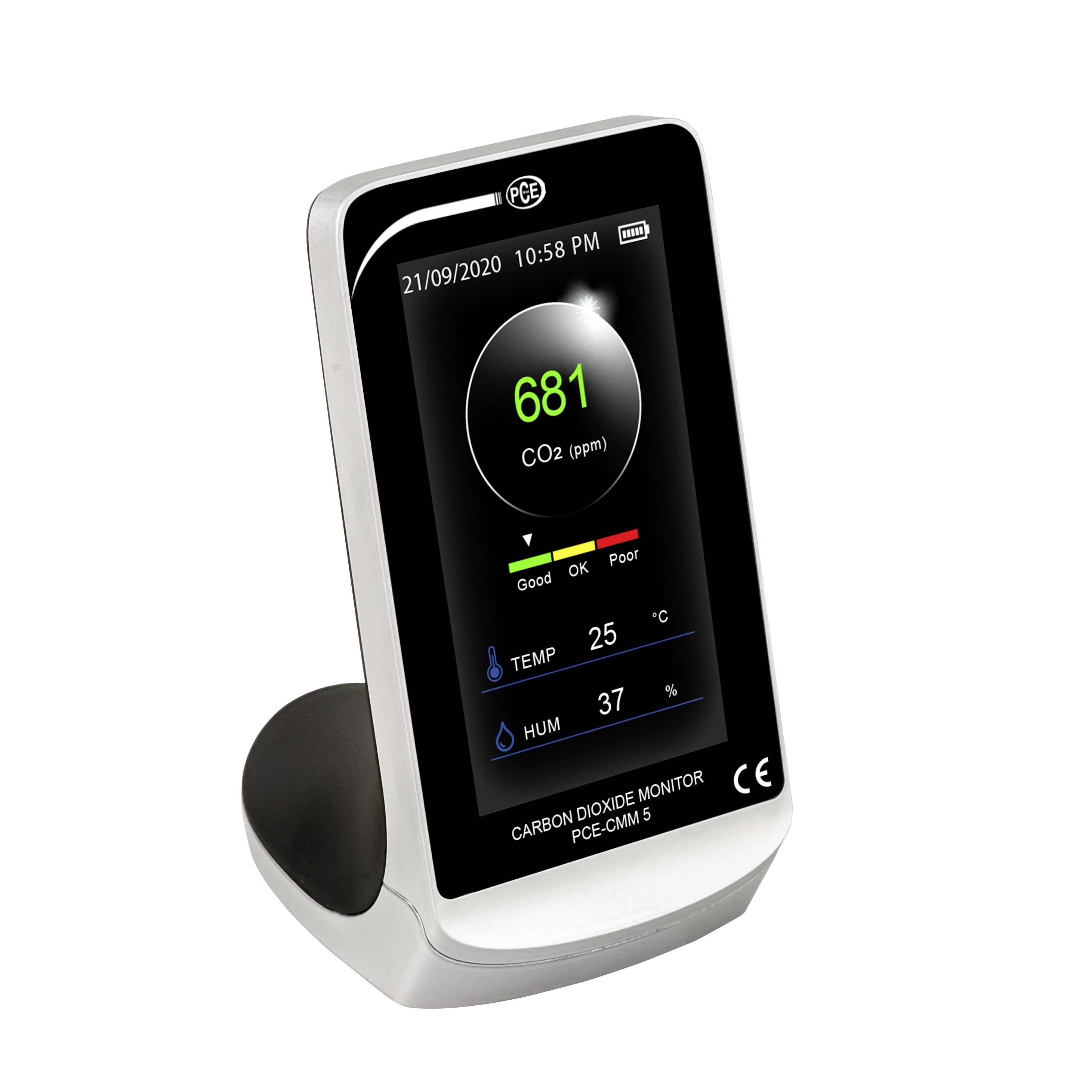

Digital CO2 monitor on a stand displaying 681 ppm, 25°C temperature, and 37% humidity.

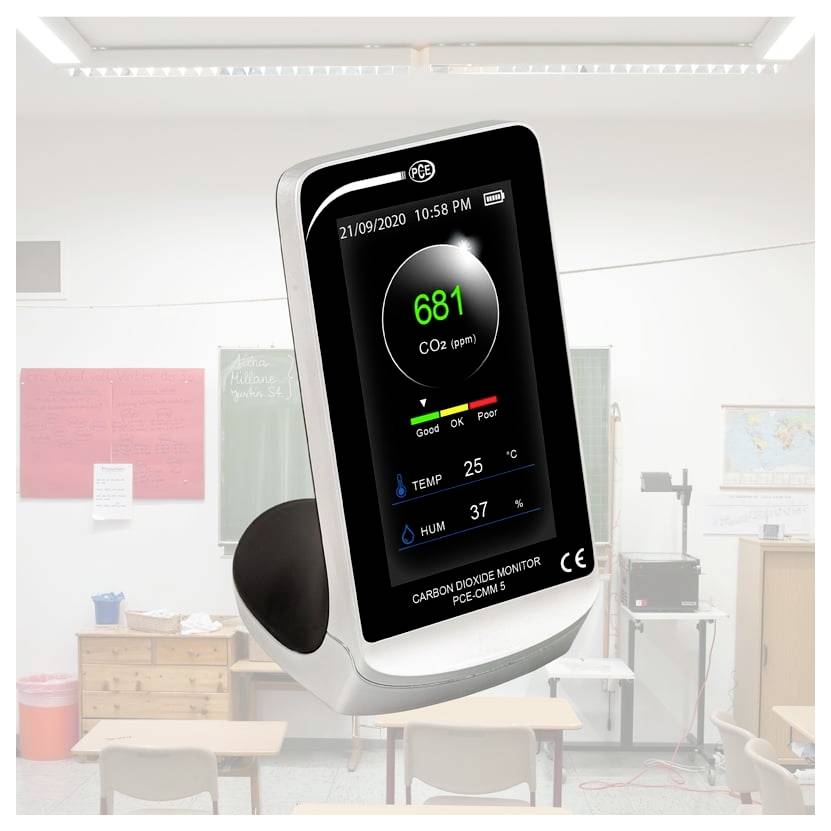

Digital carbon dioxide monitor displaying 681 ppm, with temperature 25°C and humidity 37%, shown in a classroom.

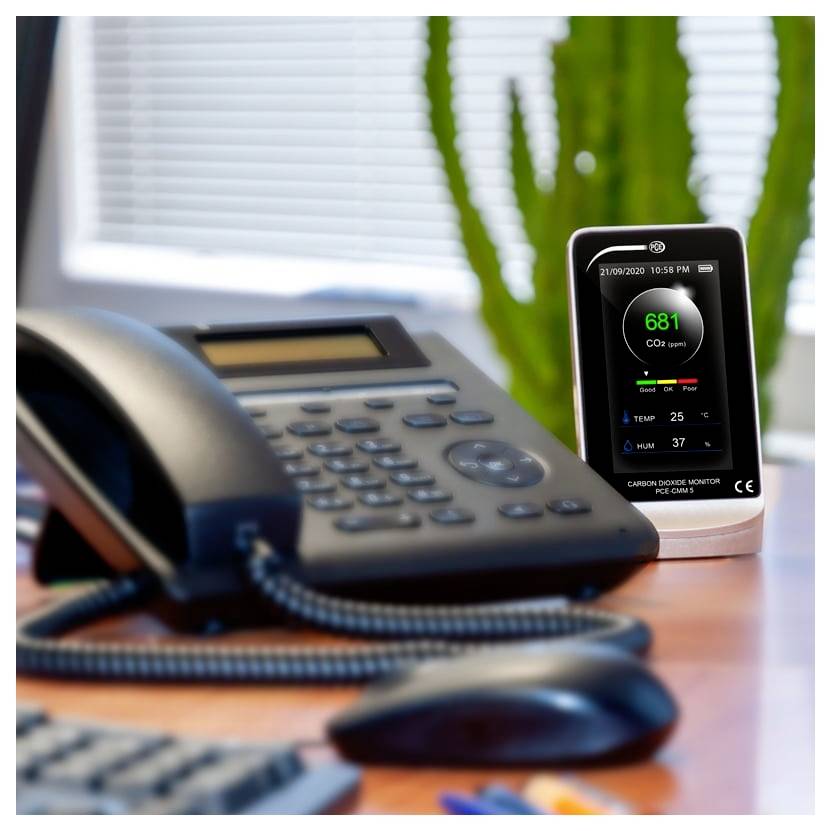

Office desk with a phone and carbon dioxide monitor showing 681 ppm, plus temperature and humidity readings.

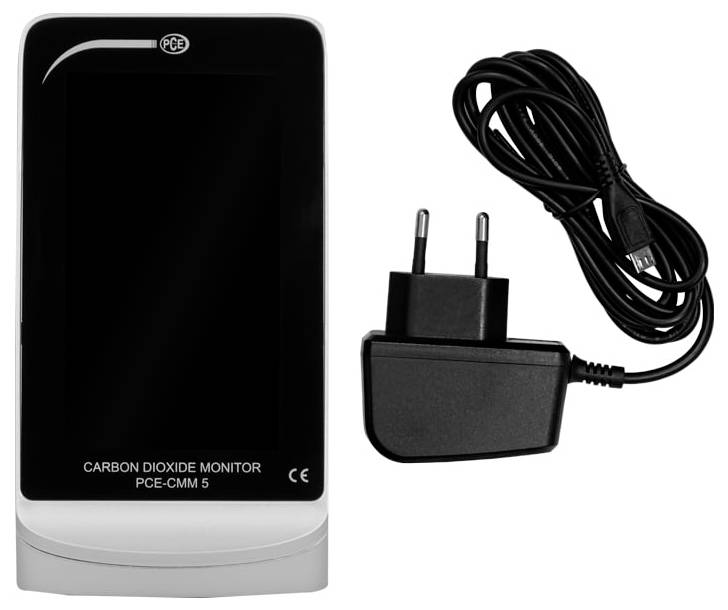

Carbon dioxide monitor with power adapter and cable, labeled 'PCE-CMM 5'.

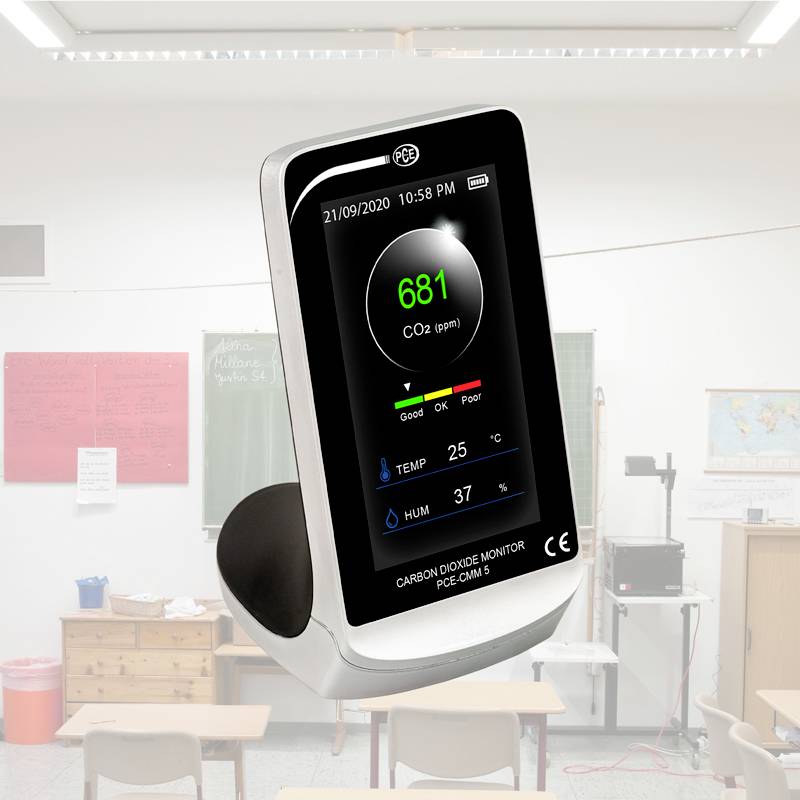

A CO2 monitor on a table in a classroom. The screen displays the CO2 concentration in ppm, along with temperature and humidity.

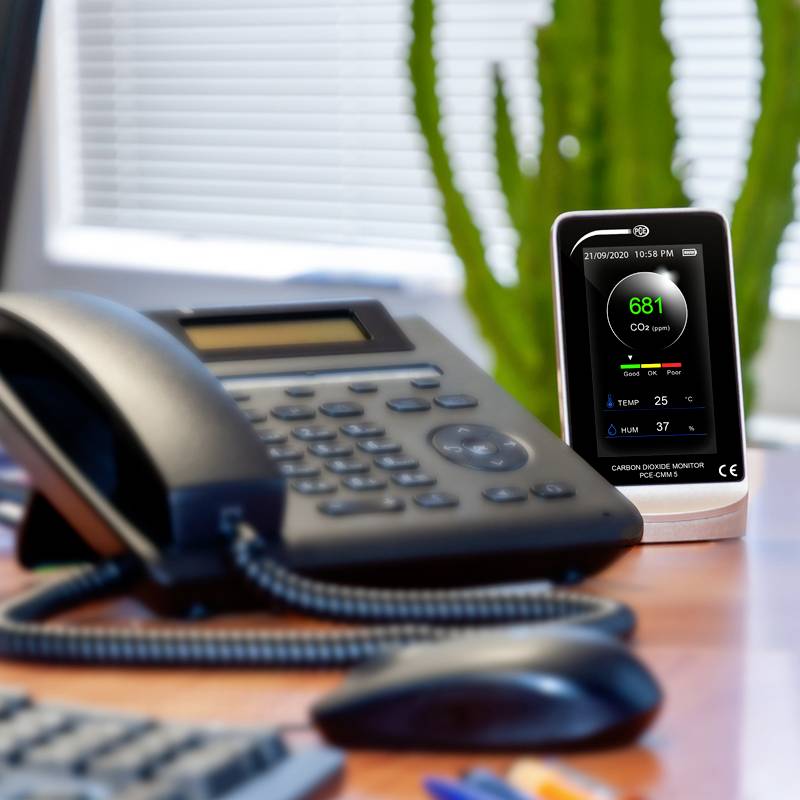

A table with a telephone and a CO2 monitor. The monitor displays '681 CO2 ppm' in green, indicating good air quality.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Work safety measuring device PCE-CMM 5

Large CO2 measurement range up to 5000 ppm
Maintenance-free NDIR CO2 sensor
Traffic light function for carbon dioxide
Measures temperature and humidity
5 h graph for long-term monitoring
Battery and mains operation 4.3 & graphic display
Date and time

Technical specifications

Measure CO2 Measuring range 400 ... 5000 ppm Accuracy ± 75ppm or ±5 % of MW. (The greater value applies) Resolution 1ppm Sensor type CO2 NDIR sensor Measure Temperature measuring range -10 ... 50 °C Accuracy +/1 °C Resolution 1 °C Humidity measurement Measuring range 20 ... 95 % r.F. Accuracy ±4 % r.h. Resolution 1% r.h. Sampling rate 1.5 s. Display 4.3 " LC display Power supply 3.7 V Li-Ion battery 3000 mAh, 5 V Micro-USB battery life approx. 6 h Charging time approx. 2 h Ambient conditions -10 ... 50 °C / 20 ... 85 % r.F. Dimensions 145 x 78 x 97.2 mm Weight 210 g.

Product type: Carbon dioxide detector

Reading range: 400 - 5000 ppm

Features: USB interface

Accuracy: 5 %

Weight: 210 g

Reading range (max.): 5000 ppm

Reading range (min.): 400 ppm

Width: 78 mm

Height: 97.2 mm

Length: 145 mm

: Manufacturer's standards (no certificate)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2452315 Carbon dioxide detector PCE Instruments PCE-CMM 5 USB interface

Description

Air quality measuring device for CO2 (carbon dioxide), temperature and humidity / traffic light function 5h History display / battery and mains operation The room air quality measuring device is a CO2 measuring device for the desktop operation. The room air quality meter measures the CO2 content in the air and shows the measured value on a large LC display. The CO2 content in the air is an important measure to check the ventilation behavior in offices, classrooms, lecture halls, etc. The room air quality measuring device helps to ensure that, for example, employees in the office ventilate regularly. The measuring device checks indoor air quality over the CO2 content. If the CO2 concentration is less than 1000 ppm, the indoor air quality is optimal. Good indoor air quality helps to promote concentration. It is also ensured that the aerosol concentration in the air is low, as the aerosols are repeatedly mixed with fresh air. The room air quality meter displays the air quality as a numerical measurement and as a traffic light indicator. By pressing a button, the CO2 content of the last five hours can be displayed. In addition to the CO2 measurement function, the room air quality measuring device is equipped with a sensor for temperature and air humidity. The sensors for monitoring air quality are subject to different requirements than those for industrial or scientific laboratory use. The focus is therefore on sensor properties such as high long-term stability, low maintenance and low energy consumption. This fulfills the room air quality measuring device with its NDIR sensor. The non-dispersive infrared (NDIR) absorption measurement enables accurate and long-term stable measurements with an absolute measuring range of up to 5000 ppm.
