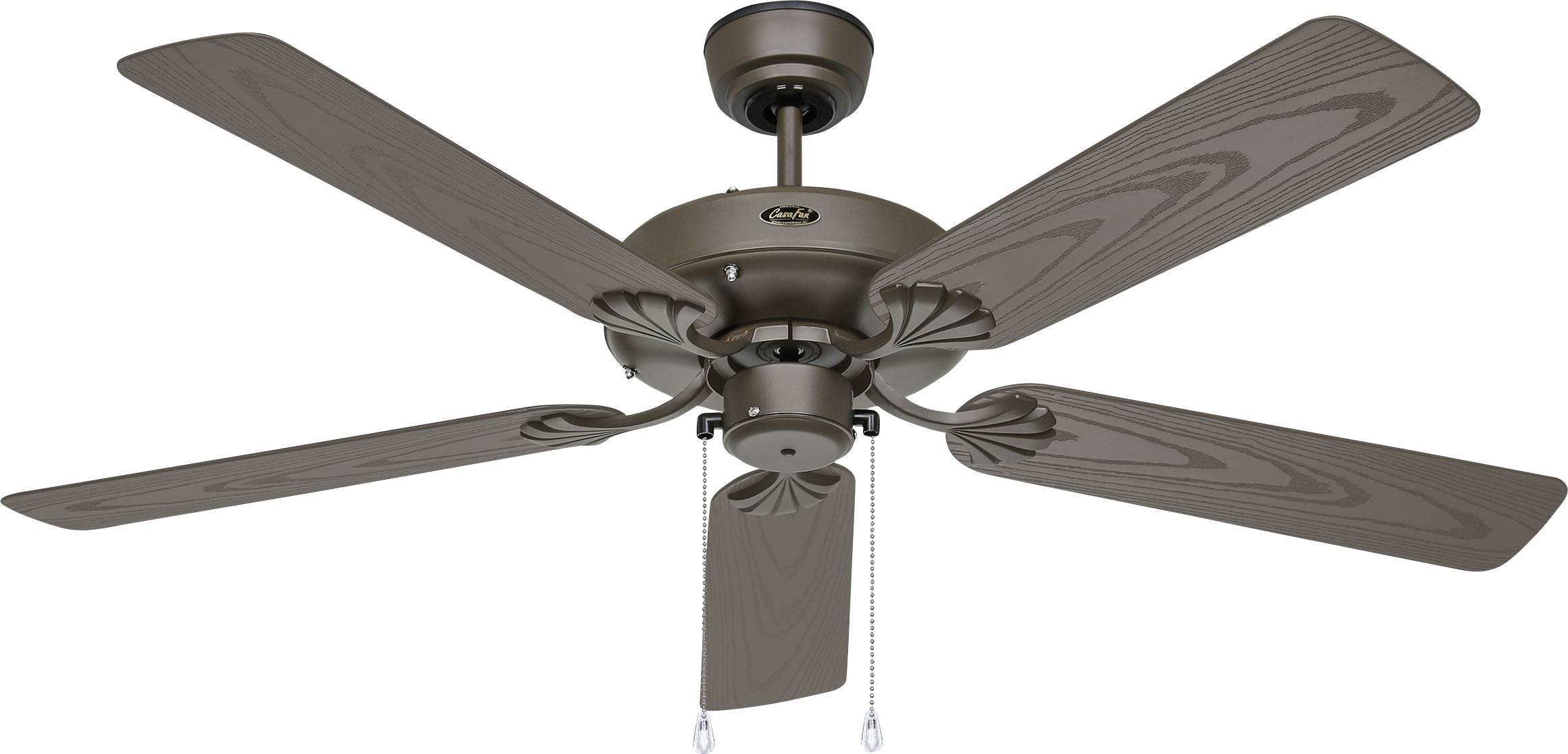

A brown ceiling fan with five wooden blades, featuring pull chains, mounted on a simple canopy.

'Brown ceiling fan with four wooden blades, a circular motor housing, and two pull chains.'

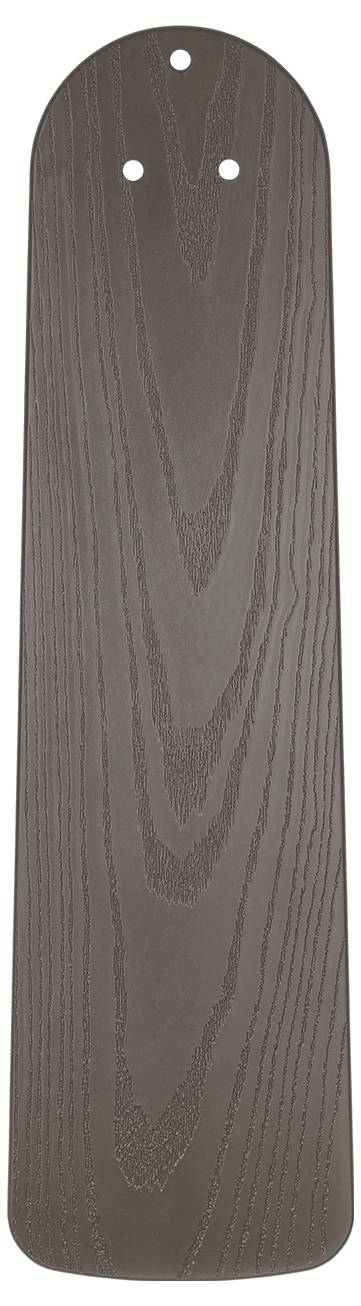

A brown wooden fan blade with a wood grain texture, featuring two mounting holes at the top.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

CasaFan CLASSIC OUTDOOR 132 BZ-EB wings plastic Brown oak decor

´- Ideal for covered porches, balconies or terraces.
- Weather-proof ceiling fan with IP44 - suitable for use in protected outdoor areas.
- Control via pull switch with 3 speed levels and forward and reverse operation.
- Including 150 mm overhead bar - mounting on slopes with auxiliary construction possible

Technical specifications

For rooms up to 25m²

Product type: Ceiling fan

Operating voltage: 230 V

Switching stages: 3

(Ø): 132 cm

: 60 W

Air flow rate: 8.317 m³/h

Rotational speed: 190 U/min

Noise emission: 27.8 dBa

Grid diameter: 132 cm

Wing colour: Brown
Oak

Case colour: Bronze

Fan features: Winter-proof

Dim: (Ø x H) 132 cm x 345 mm

Weight: 8479 g

: n.rel.

Rotor blades: 5

Reversible rotation direction: Yes

Rotational speed (max.): 190 U/min

Speed levels: 3

Factory colour: Brown

Max. power consumption: 60 W

Air discharge: 8317 m³/h

Material: Steel
Plastic

Compatible with: CasaFan

Height: 345 mm

Length: 1320 mm

Depth: 1320 mm

Service value: 2.3 (m³/min)/W

Power supply (LOV): mains-powered

Height-adjustable: No

Width: 1320 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3450933 CasaFan CLASSIC OUTDOOR 132 BZ-EB Flügel Kunststoff braun Eiche Dekor Ceiling fan 60 W (Ø x H) 132 cm x 345 mm Bronze Wi

Description

The CasaFan classic outdoor ceiling fan lends a tropical flair to protected outdoor areas such as verandas or covered terraces and is optimally protected against weather thanks to protection class IP44. Depending on the model, wings in palm or rattan look are available for an exotic ambience or smooth variants in white or bronze for a classic look. All models are made of weather-resistant plastic and ensure pleasant air circulation. Three speed levels as well as forward and reverse operation can be controlled comfortably via pull switch.

This text is machine translated.

Scope of delivery

- Ceiling fan
- Pull switch
- Mounting hardware
- Installation and operating instructions
