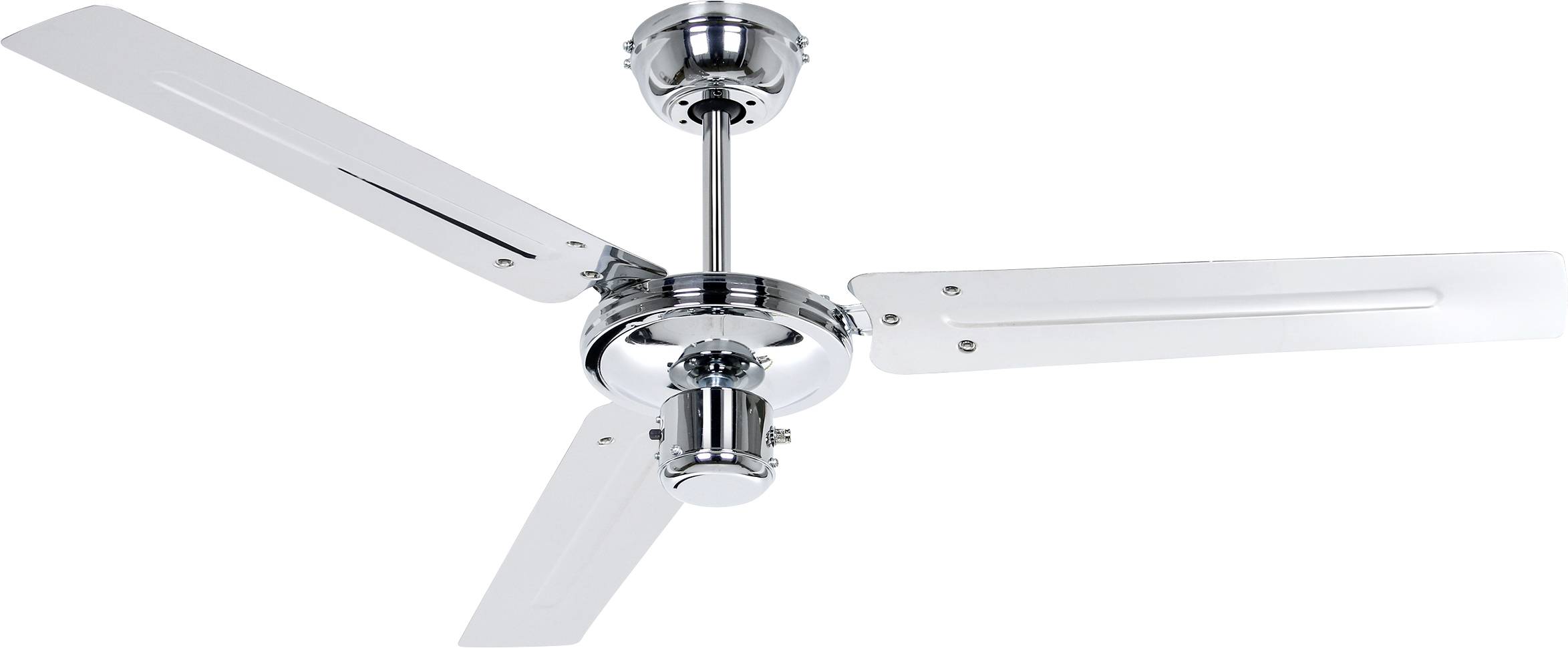

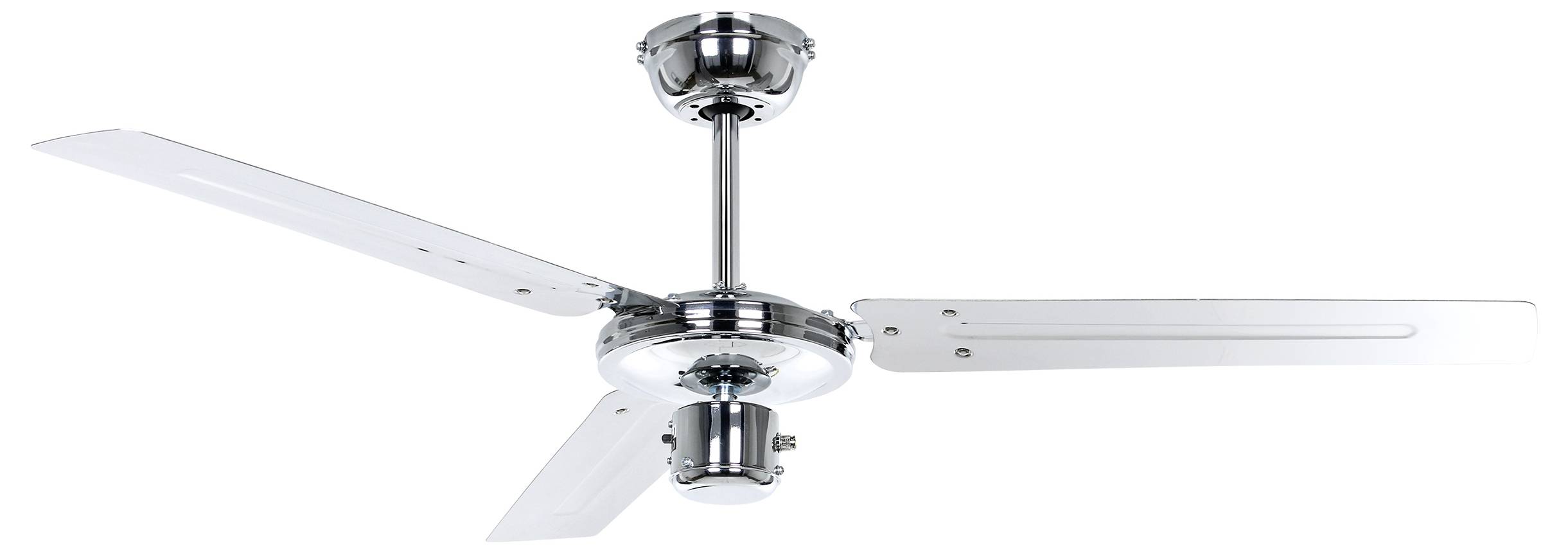

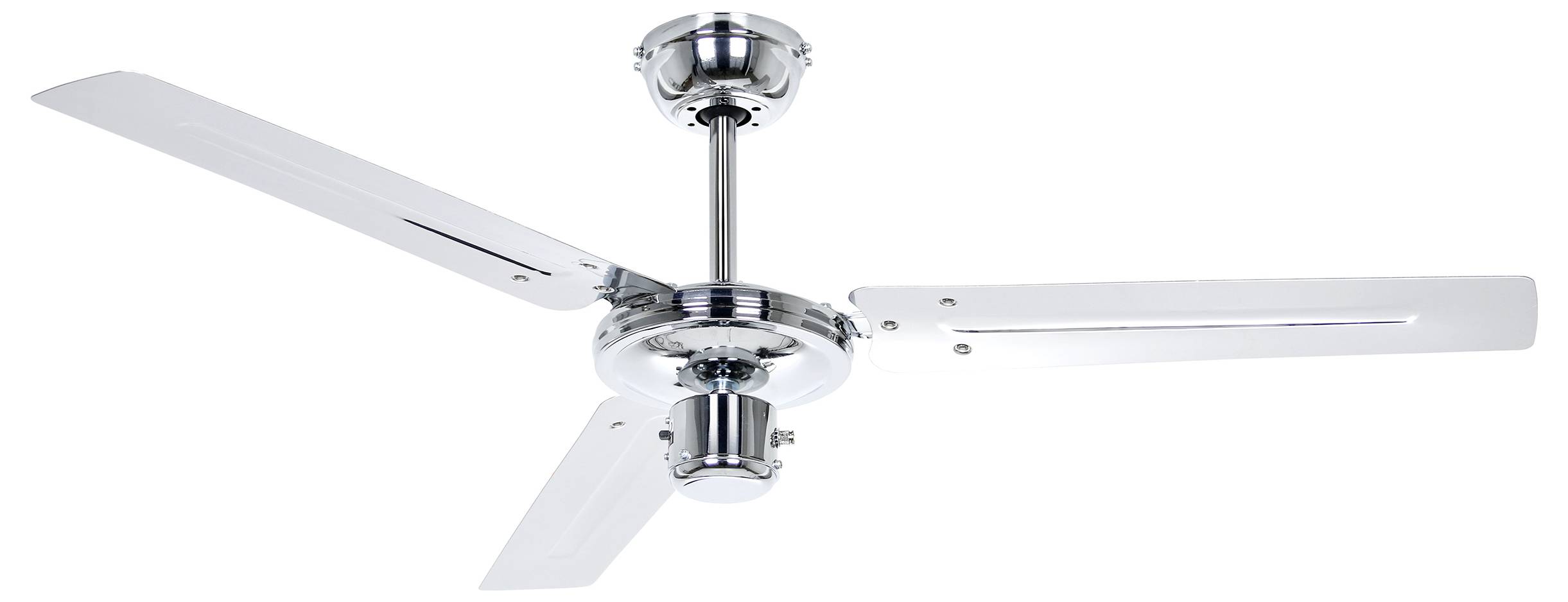

CasaFan TRISTAR-Z 120 CH Flügel Chrom Ceiling fan 59 W (Ø x H) 122 cm x 270 mm Chrome Winter-proof
EAN:
Part number:
Item no:
Highlights & Details
CasaFan Tristar-Z 120 CH wings chrome
- ´- Practical ceiling fan with three painted wings for reliable air circulation.
- - Control via pull switch.
- - Optional wall switch, remote control or rotary knob available separately.
- - Mounting on slopes up to 18° easily possible – suitable for rooms up to 18 m².
Technical specifications
- For rooms up to 20 m²
- Product type
Ceiling fan
- Operating voltage
230 V
- Switching stages
3
- (Ø)
122 cm
59 W
- Air flow rate
7.856 m³/h
- Rotational speed
266 U/min
- Noise emission
36.5 dBa
- Grid diameter
1200 cm
- Wing colour
Chrome
- Case colour
Chrome
- Fan features
Winter-proof
- Dim
(Ø x H) 122 cm x 270 mm
- Weight
4634 g
n.rel.
- Rotor blades
3
- Reversible rotation direction
Yes
- Rotational speed (max.)
286 U/min
- Speed levels
3
- Factory colour
Chrome
- Max. power consumption
59 W
- Air discharge
7856 m³/h
- Material
Steel
Aluminium
- Inclination
18°
- Height
270 mm
- Length
1200 mm
- Depth
1200 mm
- Service value
2.2 (m³/min)/W
- Power supply (LOV)
mains-powered
- Height-adjustable
No
- Width
1220 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450971 CasaFan TRISTAR-Z 120 CH Flügel Chrom Ceiling fan 59 W (Ø x H) 122 cm x 270 mm Chrome Winter-proof
Description
The CasaFan Tristar is a practical ceiling fan for many different applications. Its robust design, reliable function and the discreet design make it the ideal solution for simple ventilation concepts in living and working areas. The fan is controlled via a built-in pull switch. Other control elements, such as wall switch, rotary knob or remote control, are optionally available separately. The mounting is also possible at ceilings with a tilt of up to 18°.
This text is machine translated.
This text is machine translated.
Scope of delivery
- - Ceiling fan
- - Slide switch
- - Mounting hardware
- - Installation and operating instructions
