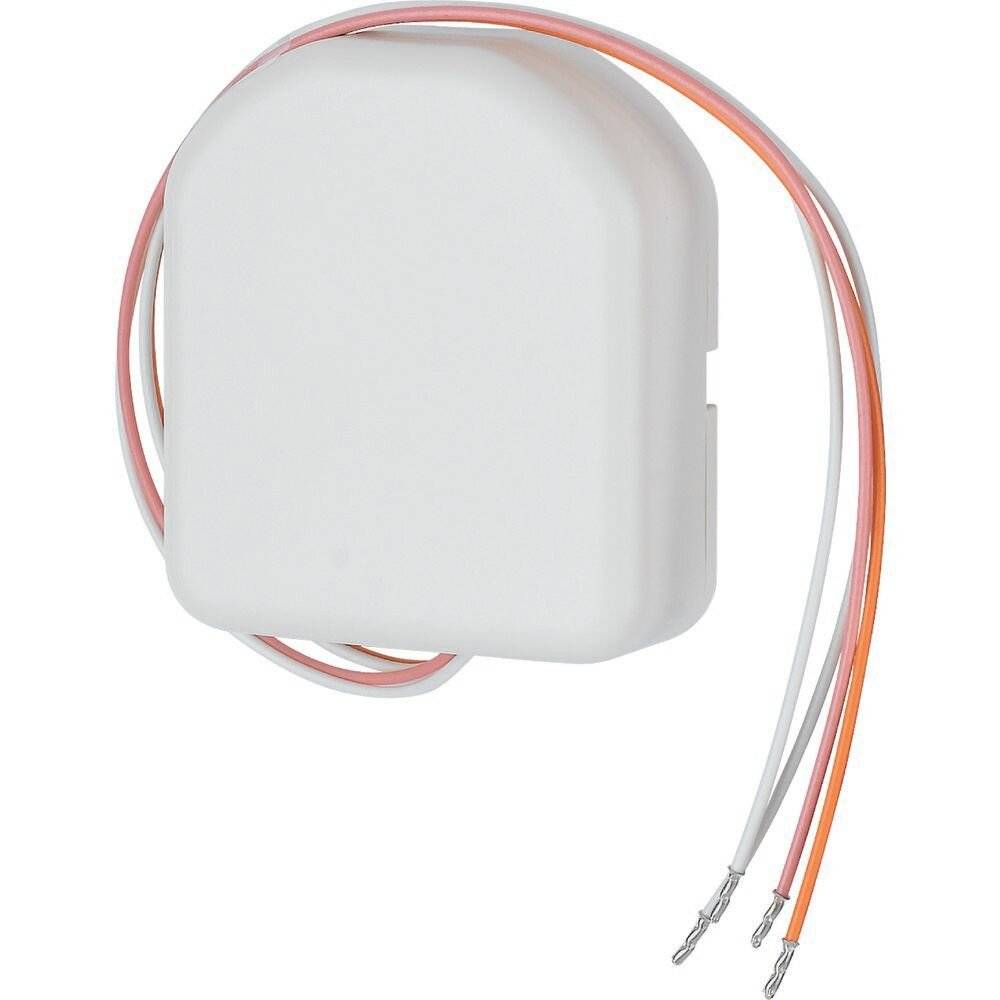

CBEU-02/02 Eaton xComfort 2-channel Binary input White
EAN:
Part number:
Item no:
Datasheet (PDF)
UP-binary input, 2 x signal contact
Highlights & Details
- Binary input
- 2 Channel
- Battery-powered
Technical specifications
- Power supply: 3 V via battery CR2477N
- connections: 4-pole terminal strip or 4-pole plug strip with cable set
- range in the building: Typically 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!)
- Operating temperature: -5 to +40 °C
- Housing color white, similar to RAL9010
- Product type
Binary input
- Series
Eaton xComfort
- Dim
(W x H x D) 46 x 51 x 18 mm
IP20
- Power supply (LOV)
battery-powered
- Frequency
868.3 MHz
- Mounting type
Flush mount
Surface-mount
- Factory colour
White
- Width
46 mm
- Height
51 mm
- Depth
18 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
Flush mounted (plaster)
2
TRUE
FALSE
FALSE
TRUE
3
AC
FALSE
xComfort
FALSE
0-0 V
FALSE
IP20
FALSE
FALSE
TRUE
FALSE
19 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2142563 CBEU-02/02 Eaton xComfort 2-channel Binary input White
User & Safety Instructions
User & Safety Instructions 2142563 CBEU-02/02 Eaton xComfort 2-channel Binary input White
Description
The Binary input sends engangsignale of, for example, Window Contact, glass breakage sensor or other signal contacts (relays, switches, buttons,...) to the convenient electrical installation. The device is installed in the switch, branch or installation box. The device is supplied with a button battery (CR 2477N) and can be everywhere and simply (screwed in and glued). The installation in a switch, branch or installation box is also possible.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Binary input incl. battery
- Installation manual.
