Buy CDAE-01/05-I Eaton xComfort Dimmer actuator

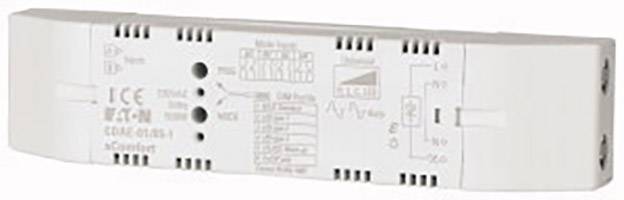

White electronic device with technical specifications and connections, possibly a controller or switch.

Electronic device in a rectangular shape with technical prints and various ports on the top and bottom.

1/2

Datasheet (PDF)

Dispatches on Mon, 20 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 163.86 / piece)

€ 163.86

plus VAT.

Report legal concerns

Highlights & Details

Smart dimming +

Universal
Binary input

Technical specifications

Power supply: 230 VAC +10% -15%, 50 Hz
Connections: Single wire 1.5 mm² all connections; load 0-500 W (0-500 VA)
Range in the building: Typically 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Function assignments: 32
routing routes: 32
Operating temperature: -5 to +55 °C
Minimum distance for multiple arrangement: 35 mm
Housing color: Gray, RAL7035
Length connecting wires: 150 mm

Product type: Dimmer actuator

Series: Eaton xComfort

Dim: (W x H x D) 34 x 150 x 28 mm

: IP20

Power supply (LOV): mains-powered

: 500 W

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Recess-mount

Width: 34 mm

Height: 150 mm

Depth: 28 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Built-in installation

: Dimming actuator

: 1

: 50-50 Hz

: FALSE

: TRUE

: FALSE

: TRUE

: Universal and LED Retrofit

: 0 mA

: 230-230 V

: 3

: xComfort

: FALSE

: TRUE

: FALSE

: TRUE

: 0-500 W

: IP20

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: 0 mm

: 200 W

: FALSE

Documents & Downloads

Datasheet

Datasheet 2142534 CDAE-01/05-I Eaton xComfort Dimmer actuator

User & Safety Instructions

User & Safety Instructions 2142534 CDAE-01/05-I Eaton xComfort Dimmer actuator

Description

Smart dimming in small size 0 - 500W/230VAC with local 230VAC inputs. Suitable for a variety of loads including dimmable and non-dimmable LEDs dim (on/off). Even the smallest LED-load, increases the 0 W starting! DIM-profile for the best dim-achievement simply can be selected or defined. Energy-efficient. Small design for installation behind the switches, buttons, motion detector, sockets or in junction boxes.
