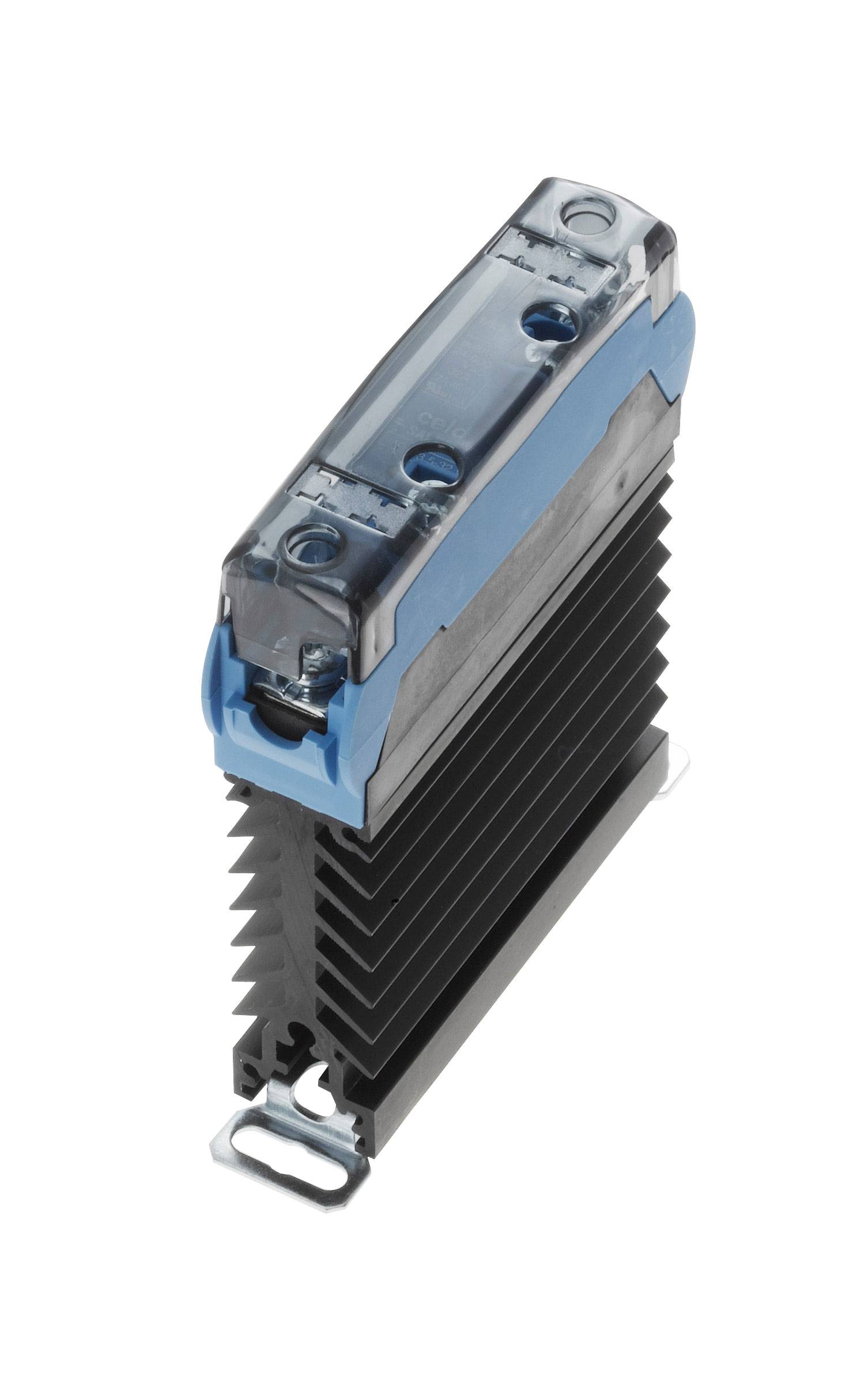

Celduc SSR SAL963460 21 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
3.5 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
600 V AC
Datasheet (PDF)
Number
Minimum order quantity: 38
Multiple: 38
Total (€ 70.58 / piece)
€ 2,682.04
plus VAT.
14-day return policy included
Technical specifications
- Thyristor rated values: 35A
- Max. SWITCHING CURRENT (A) 21A AC-1 @40°C
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- SAL9-SAM9 series
- Heatsink included: Yes
- Housing type:Low profile
- Applications: (AC-1 / LC A) heating elements
- Number of switched phases: 1 phase
- Packaging type
Piece
- Product type
SSR
- Type
SAL963460
- Switching type
Zero crossing
- Connection
Screws
- Control voltage (min.)
3.5 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
3.5 - 32 V DC
- Control current (max.)
13 mA
- Surge current (max.)
420 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
600 V AC
- Current load (max.)
21 A
- Output voltage (max.)
600 V AC
- Max. output current
21 A
- Contact type
1 maker
- Min. temperature
-55 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Mounting type
DIN rail
Documents & Downloads
Datasheet
Datasheet 3221996 Celduc SSR SAL963460 21 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3221996 Celduc SSR SAL963460 21 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - SAL963460
