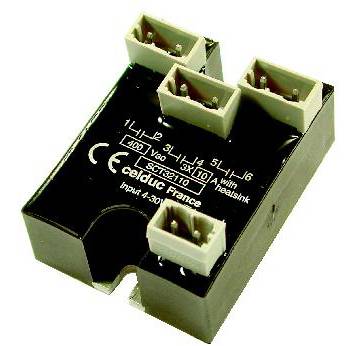

Celduc SSR SCT62110 10 A Switching voltage (max.): 440 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
440 V AC
Datasheet (PDF)
Number
Minimum order quantity: 12
Multiple: 12
Total (€ 168.06 / piece)
€ 2,016.72
plus VAT.
14-day return policy included
Technical specifications
- Thyristor rated values: 3X10A
- Max. Switching current (A) 10A
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series SCT
- Heatsink included: No.
- Casing type: Hockey puck
- Standard
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- Number of switched phases: 3 phases - 1 control
- Packaging type
Piece
- Product type
SSR
- Type
SCT62110
- Switching type
Zero crossing
- Connection
Clamp
- Control voltage (min.)
4 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
4 - 30 V DC
- Control current (max.)
30 mA
- Surge current (max.)
120 A
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
440 V AC
- Current load (max.)
10 A
- Output voltage (max.)
440 V AC
- Max. output current
10 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Permanent current (max.)
10 A
- Content
1 pc(s)
- Mounting type
Screws
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3221999 Celduc SSR SCT62110 10 A Switching voltage (max.): 440 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3221999 Celduc SSR SCT62110 10 A Switching voltage (max.): 440 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - SCT62110
