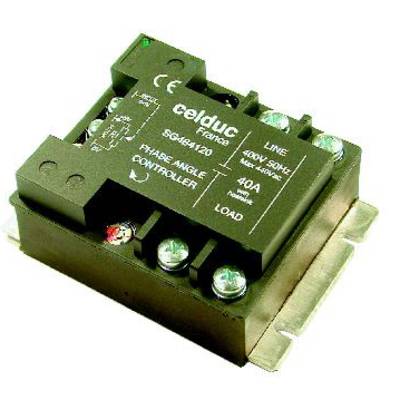

Celduc SSR SG464420 40 A Switching voltage (max.): 460 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Switching voltage (max.)
460 V AC
Current load (max.)
40 A
Output voltage (max.)
460 V AC
Type
SG464420
Datasheet (PDF)
Number
Minimum order quantity: 16
Multiple: 16
Total (€ 289.92 / piece)
€ 4,638.72
plus VAT.
Technical specifications
- Thyristor rated values: 40A
- Max. Switching current (A) 40A
- Function: Analogue controller
- Relay type (AC or DC): AC
- Series SG4
- Heatsink included: No.
- Housing type: Standard
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- (AC-5a / LC D) incandescent lamps and infrared lamps
- (AC-5b/DC-6) LEDs
- (AC-6A / LC E) transformers
- Number of switched phases: 1 phase
- Protection (RC, Varistor, TVS): RC ; VDR
- Product type
SSR
- Type
SG464420
- Connection
Screws
- Control current (max.)
20 mA
- Switching voltage (min.)
200 V AC
- Switching voltage (max.)
460 V AC
- Current load (max.)
40 A
- Output voltage (max.)
460 V AC
- Max. output current
40 A
- Contact type
1 maker
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222003 Celduc SSR SG464420 40 A Switching voltage (max.): 460 V AC 1 pc(s)
Description
Cellduc SSR – SG464420
